Pottery Barn Benchwright Double Sink Console Assembly Instructions

Vanity top

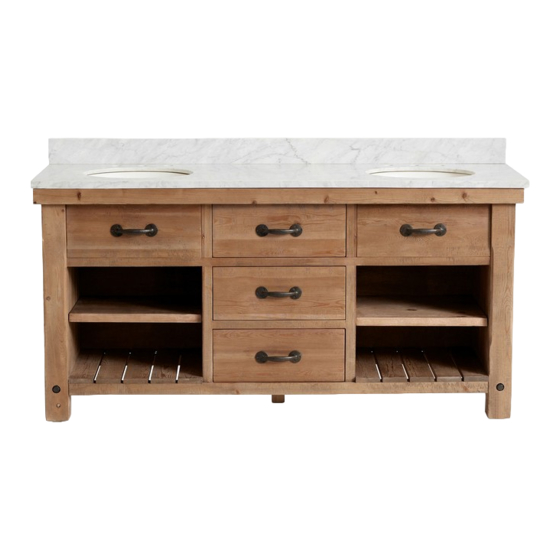

Benchwright Double Sink Console

VANITY TOP

Handling Instructions

CAUTION:

Keep natural stone material in it's packing until installation and store on its edge.

When removing natural stone product from its package, always ensure it is removed vertically on its long edge.

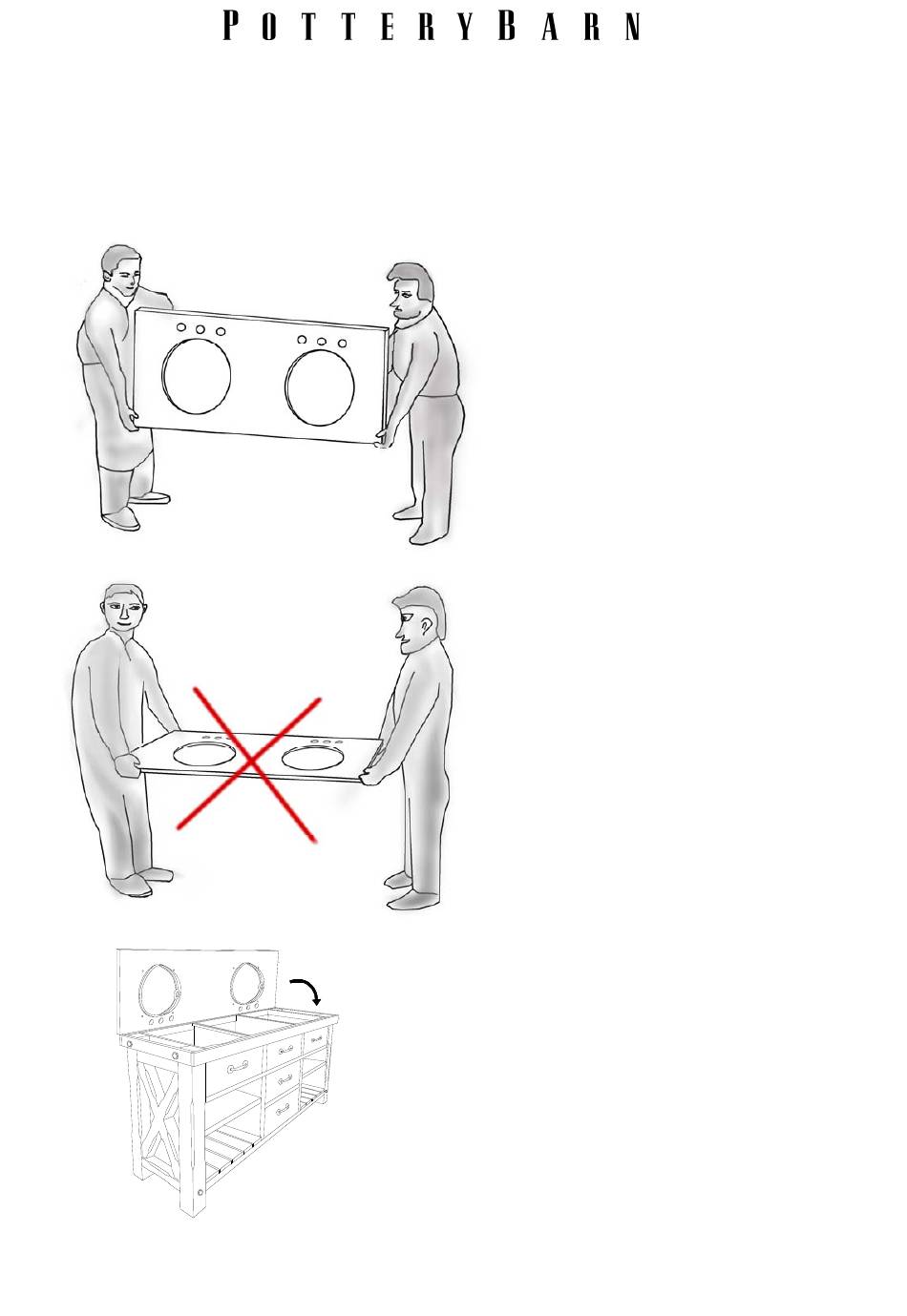

*Always carry natural stone product vertically on its long edge.

*Carrying natural stone flat WILL cause them to crack or break.

*Place top as close as possible to the final desired location.

Note: Avoid moving the top after it has been set into place

Page 1 of 5

Table of Contents

Do you have a question about the Benchwright Double Sink Console and is the answer not in the manual?

Page 1 Benchwright Double Sink Console Assembly Instructions VANITY TOP Handling Instructions CAUTION: Keep natural stone material in it’s packing until installation and store on its edge. When removing natural stone product from its package, always ensure it is removed vertically on its long edge.
Page 2 Benchwright Double Sink Console Assembly Instructions Please read all instructions before beginning assembly.  For your safety and convenience, assembly by two people is recommended.  Use the parts and hardware lists to identify and separate each of the components included.
Page 3 Carefully lift up the marble top (B) with basin attached to place it onto the console base (D). Let the marble top lies flatly on top of the console base (D). Fig.2 Fig. 2 Caution: For safe handling, 2-3 people are recommended. Adjust the basin position to make sure drain holes are right on top of the cut-out for drainpipe on the shelf.
Page 4 The wooden adjustable shelf was attached to the shelf supports for shipping. To change the position of the shelf, first remove the screws from the shelf pins. Remove the shelf and relocate the shelf pins to another set of pre-bored holes. Re-install the shelf.
Page 5 Benchwright Double Sink Console 1822 1829 169mm = from side of marble top to side of basin 377mm = from side of marble top to basin drain hole 248mm = from front of marble top to basin drain hole 77mm = from front of marble top to front of basin...
