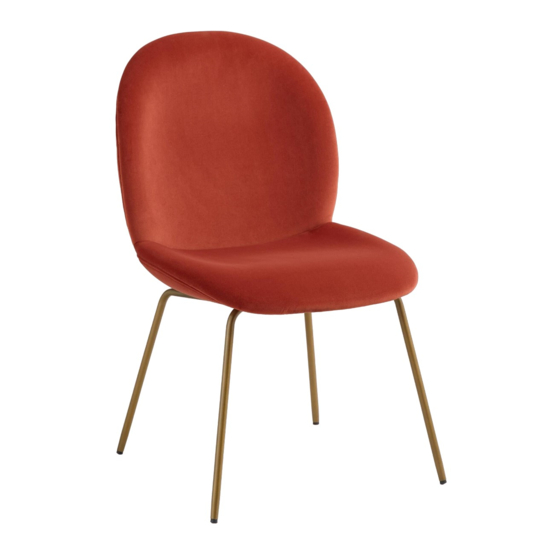

World Market VIVIAN CHAIR 556233 Assembly Instructions Manual

Assembly Instructions

VIVIAN CHAIR

SKU 556233 & 556235

THANK YOU FOR YOUR PURCHASE.

IF YOU HAVE ANY QUESTIONS PERTAINING TO THE ASSEMBLY

OF THIS FURNITURE PIECE, PLEASE CONTACT THE NEAREST

COST PLUS WORLD MARKET STORE. IF YOU ARE NOT NEAR A STORE,

PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER

TOLL FREE AT 877- 967-5362 FOR ASSISTANCE.

CH208

Material #: 980974BLK02 & 980974CAY02

Page 1

Table of Contents

Need help?

Do you have a question about the VIVIAN CHAIR 556233 and is the answer not in the manual?

Page 1 IF YOU HAVE ANY QUESTIONS PERTAINING TO THE ASSEMBLY OF THIS FURNITURE PIECE, PLEASE CONTACT THE NEAREST COST PLUS WORLD MARKET STORE. IF YOU ARE NOT NEAR A STORE, PLEASE CALL OUR CUSTOMER SERVICE CALL CENTER TOLL FREE AT 877- 967-5362 FOR ASSISTANCE.
Page 2 Seat Base Page 2...
Page 3 Tool List Allen Wrench (M6x30mm) Bolt Bolt (M6x25mm) Spring Washer Flat Washer Page 3...
Page 4 Have 2 adults on hand for assembly- In case of missing parts,Please call toll free 877-967-5362 for assistance. Page 4...
Page 5 Step 1 Remove the PE sheet before attaching the Base B. Step 2 Attach Base B to Seat A with Bolts H-1 (2), Spring Washers H-3 (2) and Flat Washers H-4 (2) using Allen wrench. Do not fully tighten the bolts. Page 5...
Page 6 Step 3 Attach Base B to Seat A with Bolts H-2 (2), Spring Washers H-3 (2) and Flat Washers H-4 (2) using Allen wrench. Do not fully tighten the bolts. Step 4 Tighten all the bolts completely. Assembly complete chair is now ready to use. Page 6...
Page 7 Page 7...
