30-808-2844 (Quartz outer tube) & 30-808-2862 (Ceramic outer tube)
BEFORE YOU START
Congratulations on the purchase of your D-Torch.
As supplied, the D-Torch is fully assembled. Table 1, lists the D-Torch parts that can be ordered separately.
Item No.
Part Number
1
31-808-2895
2
31-808-2897
3
Refer Note
4
31-808-3083
5
31-808-2932
6
31-808-2840
7
31-808-2707
8
70-803-0915
9
SAFEGLOVE-MED
Note!
D-Torch injector (item 3) is not supplied with standard D-Torch assembly (shown for reference only.)
A range of injectors suitable for the iCAP D-Torch can be purchased from Glass Expansion.
Item 2
Item 1
SCOPE
This document will explain: -
1.
General safety
2.
Removal of D-Torch outer tube
3.
Attach D-Torch outer tube
4.
Access D-Torch injector
5.
Replacement of injector ferrule
Appendix A Ceramic outer tube (option for standard D-Torch)
* The D-Torch is covered by US Patent 8,232,500 B2
©
Glass Expansion
Installation guide
D-Torch* for iCAP 6000 Duo

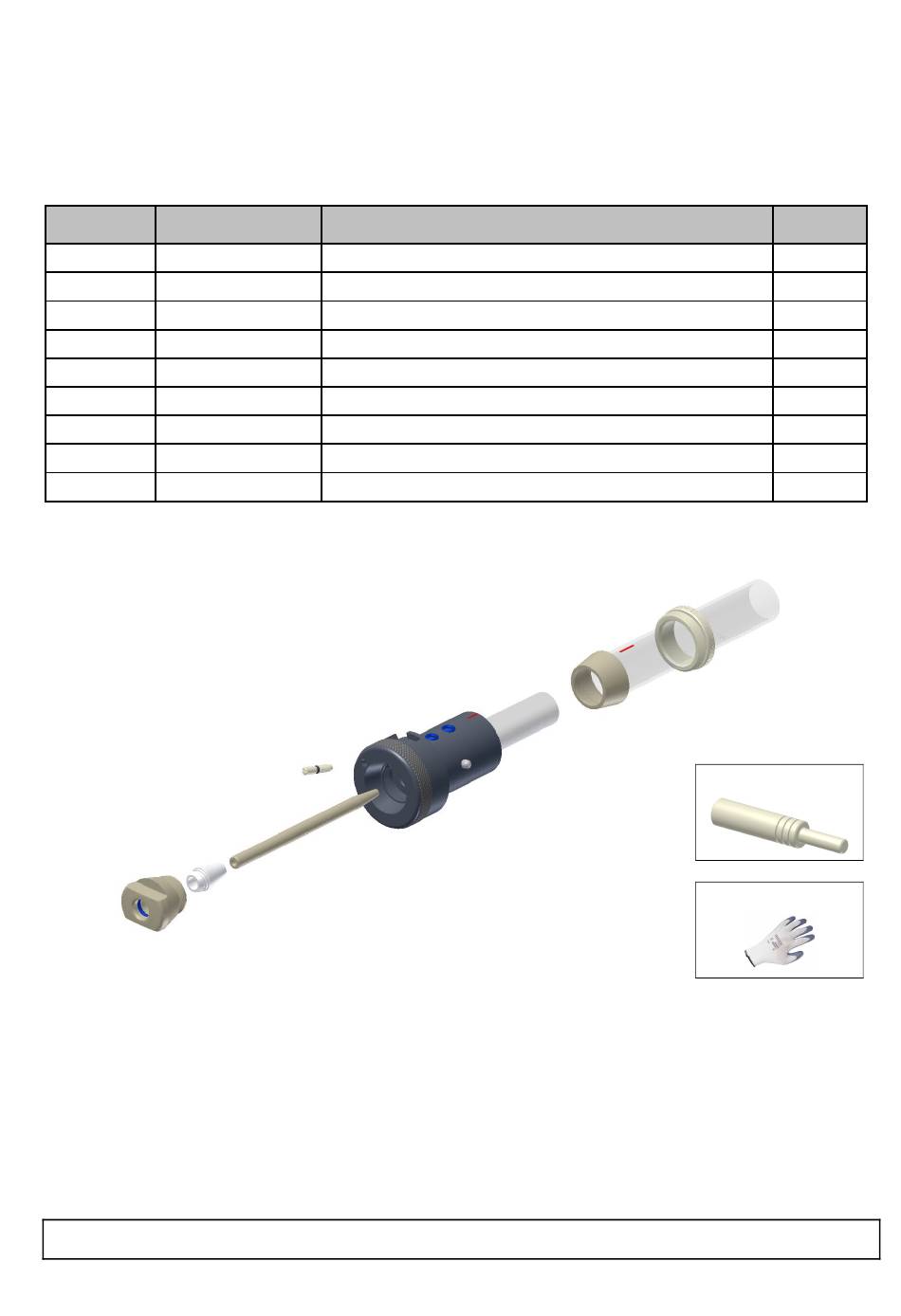

D-TORCH iCAP 6000 INJECTOR ADAPTOR
D-TORCH iCAP 6000 INJECTOR FERRULE
D-TORCH iCAP 6000 INJECTOR
D-TORCH iCAP 6000 PLUG
D-TORCH iCAP 6000 BODY
D-TORCH iCAP 6000 DUO QUARTZ OUTER TUBE
RETAINER
INJECTOR FERRULE TOOL
SAFETY GLOVES
Item 5
Item 4
Item 3
INS-0066
Version 9
Description
Table 1
Item 6
Item 7
Item 8
Item 9
Qty
1
1
Refer note
1
1
1
1
1
1
Page 1 of 5
Advertisement
Table of Contents
Related Manuals for Glass Expansion D-Torch
Summary of Contents for Glass Expansion D-Torch
- Page 1 30-808-2844 (Quartz outer tube) & 30-808-2862 (Ceramic outer tube) BEFORE YOU START Congratulations on the purchase of your D-Torch. As supplied, the D-Torch is fully assembled. Table 1, lists the D-Torch parts that can be ordered separately. Item No. Part Number...
- Page 2 Do not allow the Torch to be placed on hard surfaces or allow it to come into contact with hard objects REMOVAL OF D-TORCH OUTER TUBE The D-Torch’s outer tube is accurately located in the D-Torch body with a retainer cap. The outer tube can be removed at any time by completing the following steps: - Note: A tapered ferrule is permanently fixed to the to the outer tube –...
- Page 3 Step 4.2b iCAP Plug - refer note below iCAP Pug: Do not remove this Plug from the D-Torch body - This Plug must be left in place for all iCAP Radial applications To reinstall Injector to the D-Torch Repeat steps 4.1 and 4.2 in reverse order.
- Page 4 To overcome this problem, an optic fibre is supplied to convey light from the D-Torch to the ICP sensor. Fitting the optic fibre assembly to the iCAP 6000...
- Page 5 Step A.7 Step A.8 Note! If you replace D-Torch with a conventional ICP torch, you must return light sensor to ICP torch box (steps A.7 to A.4 in reverse order) iCAP 6000 from the YEAR 2011 onwards To fit the optic fibre assembly (conveys light from the D-Torch to the ICP) perform the following: - If fitted, remove the existing Torch from ICP (not shown).
