BEFORE YOU START

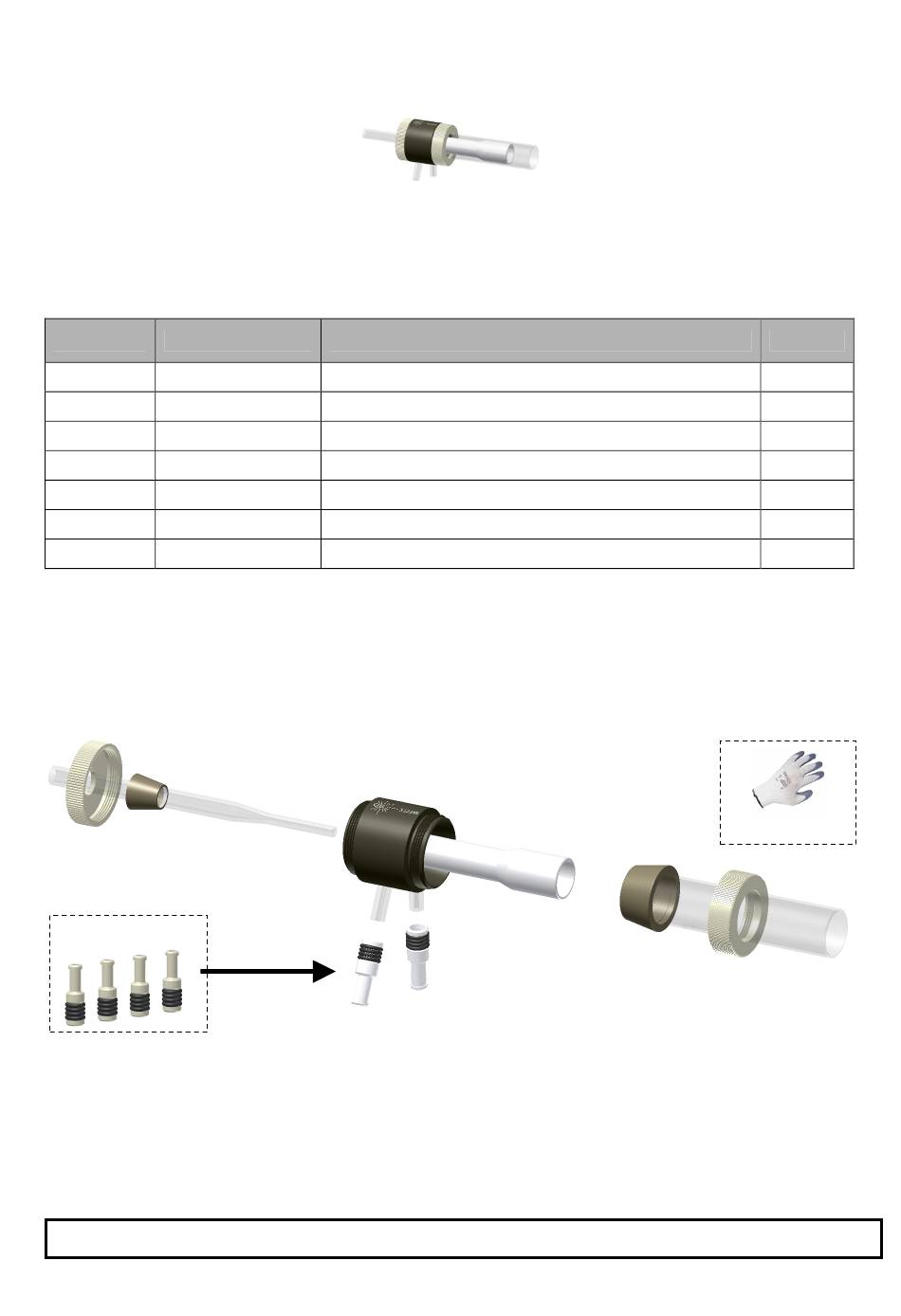

Congratulations on the purchase of your D-Torch.
The D-Torch is supplied fully assembled. This document will explain how to dismantle and replace the D-Torch
components. Table 1 lists D-Torch components, they can be ordered separately from your D-Torch supplier.
Item No.
Part Number
1
31-808-2921
2
Refer Note
3
31-808-3146
4
31-808-3062
5
31-808-2818
6
SAFEGLOVE-MED
7
GAZ-06
Note:
Item 2.
D-torch injector not supplied with standard D-torch assembly (Shown for reference only). There is a range of
different injectors suitable for this D-Torch – These can be purchased from your D-Torch supplier
Item 7.
Use GazFit connectors to attach ICP tubes to the D-torch side arms. Four connectors are supplied (two
spare).
Item 1
Item 2
Item 7
Scope
This document will explain how to: -
1.
Install D-torch
2.
Removal of D-Torch outer tube.
3.
Re-attach D-Torch outer tube.
4.
Access D-Torch injector.
* The D-Torch is covered by US Patent 7,847,210 B2
Glass Expansion
©
D-Torch* with Quartz Outer Tube
Varian 700-ES or Vista Radial
30-808-3052
D-Torch injector retainer
D-Torch injector
D-Torch Varian radial body
D-Torch Varian radial quartz outer tube
Outer tube retainer
Safety gloves
GazFit connectors 6mm (four per pack)
INS-0131
Version 3
Description
Table 1
Item 3
Qty
Refer Note
Refer Note
Item 6
Item 4
Item 5
Page 1 of 4
1
1
1
1
1
Advertisement
Table of Contents
Related Manuals for Glass Expansion D-Torch
Summary of Contents for Glass Expansion D-Torch
- Page 1 BEFORE YOU START Congratulations on the purchase of your D-Torch. The D-Torch is supplied fully assembled. This document will explain how to dismantle and replace the D-Torch components. Table 1 lists D-Torch components, they can be ordered separately from your D-Torch supplier.
- Page 2 Fit D-Torch in mounting block and connect gas tubes as normal. 1.1a 1.1b Check position of D-Torch relative to RF coil. There must be gap of 2 to 4mm between end of D-Torch inner tube and lower arm of RF coil (Fig 1.3b). 2 ~ 4mm gap 1.3a 1.3b Once satisfied with the D-Torch position and gas line connections, the D-Torch is ready for use.
- Page 3 2.4. Note! D-Torch outer tube is permanently fitted with a taper ferrule - do not attempt to remove ferrule from outer tube. Alumina inner tube is permanently fixed to D-Torch body - do not attempt to remove alumina inner tube from D-Torch...
- Page 4 Slide injector into D-torch body. Screw injector retainer to D-torch body. Do not over tighten injector retainer - Only medium force by hand is necessary. Note! If you have questions regarding the D-Torch or this document, please contact your supplier. Glass Expansion © INS-0131...
