WiFi
CURTAIN
MOTOR
RADIO
INSTALLATION
MANUAL

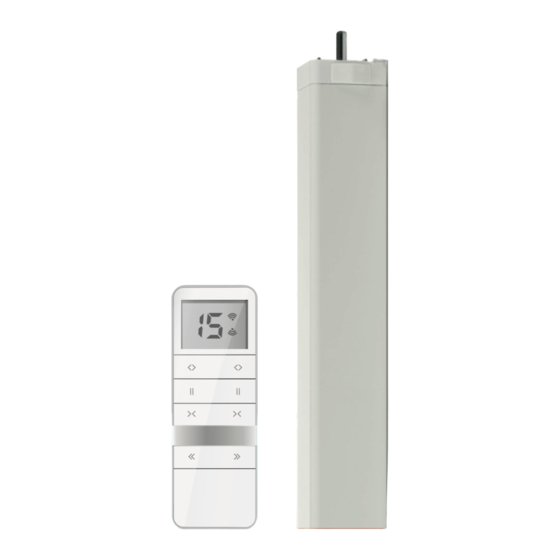

Manual Brel Bi-directional Wifi Curtain Rail Motor
BG-980
Read the manual before you begin the
installation. If these instructions are not
followed, this may lead to defects and
injury in which warranty can't be claimed.
www.brel-home.com
Visit our website for more manuals and information
BG-980
Scan the QR code here for the manual to
download & view instructional videos
M O T O R S
EN NL DE FR
Advertisement
Related Manuals for brel-motors BG-980
Summary of Contents for brel-motors BG-980
- Page 1 MOTOR RADIO INSTALLATION MANUAL Manual Brel Bi-directional Wifi Curtain Rail Motor BG-980 Read the manual before you begin the installation. If these instructions are not followed, this may lead to defects and injury in which warranty can’t be claimed. www.brel-home.com...
- Page 2 Functions remote control/Function/ Installation of the Motor Warning It is important to follow this instruction for your own safety. Do not operate the motor BREL-Motors declares that this in humid surroundings. motor has been manufactured according to the guidelines of the...
- Page 3 Step 6: Go to the WiFi motor and link the newly created room to the WiFi motor. If you want to install the motor by emitter, follow the instructions on the next pages. Technical data of the motor BG-980 Torque 1.2 nm Open/Close Speed 14 cm per sec.
- Page 4 Page 4 Functions Remote control DD-1852 a OPEN button b OPEN button a. PROGRAMM Button P2 a Stop button b Stop button a CLOSE button b CLOSE button b. PROGRAMM Button P2 + Channel - Channel CR2450 CR2450 LITHIUM BATTERY LITHIUM BATTERY QR-code Scan the QR code to view the manual and instructional videos...
- Page 5 Page 5 Step 2 Establishing connection In the procedures described here is a maximum interval of 10 seconds to complete each subsequent action: if you wait any longer, the system will leave the edit mode. Normally a button only needs to be pressed shortly. If you need to press and hold a button for several seconds this will be state clearly.
-
Page 6: Additional Settings
Page 6 Step 5 Setting the favorite position (If desired) LED blinks LED blinks LED blinks Go to the Press STOP 1x Press P2 1x Press STOP 1x desired favorite position Press and hold STOP for 3 seconds to move to the favorite position. Since the procedure is identical, to remove it repeat the steps. - Page 7 Page 7 Option C Speed Control 1x P2 The motor speed Press 1x up. Press 1x up. has been increased Press P2. The product Press 1x down. Press 1x down. The motor speed moves 1x up and down has been reduced. If the motor does NOT react after this action, it is already at the highest or lowest speed.
-
Page 8: Changing The Direction Of Rotation
Page 8 Additional settings P1 button Can be used without a transmitter as an operating button. The LED light blinks when pressed P1 Manual control LED blinks STOP LED blinks Press the P1 button Release the Press the STOP button Manual cotrol has been for 10s button...
