Read the manual before you begin the installation. If these instructions are not followed,
this may lead to defects and injury in which warranty can't be claimed.
____________________________________________________
Technical specifications
• Input voltage:
• Battery type:
• Frequency:
• Emission distance:
• Work temperature:
____________________________________________________
Button specification
Up
Stop
Up Stop Down Lock
____________________________________________________
Operates with these BREL motors and transmitters:
Motors:
MR, MEV, MCE, MDE, MLE, MJE, MTE, MEQ, MPE.
Transmitters:
DC-50, DC-90, DC-92, DC-94, DC-101, DC-109, DC-114, DC-227, DC-252,
DC-253, DC-292, DC-305, DC-306, DC-2702.
BREL motors is part of:

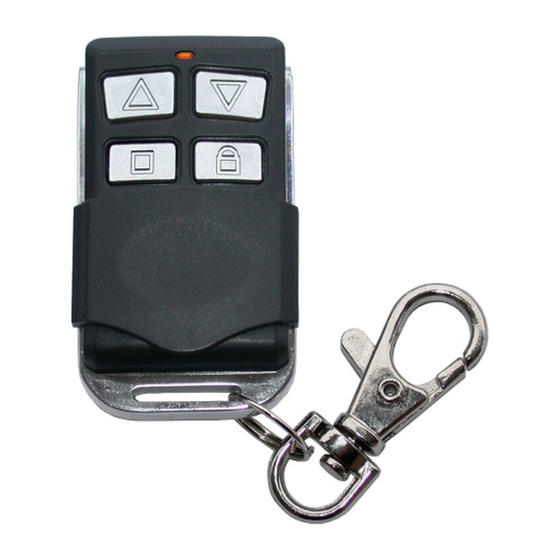

Manual Brel mini remote control
Type DC-115
Down
Lock
Type DC-115
12V
27A 12V
433,92MHz
200 meter open field
2 walls 30 meter.
Normal use:-10℃ tot +50℃
Reach
L1 = 100 meter L2 = 25 meter
Page 1
Advertisement
Related Manuals for brel-motors DC-115
Summary of Contents for brel-motors DC-115
- Page 1 Page 1 BREL motors is part of: Manual Brel mini remote control Type DC-115 Read the manual before you begin the installation. If these instructions are not followed, this may lead to defects and injury in which warranty can’t be claimed.
- Page 2 Page 2 ____________________________________________________ Teaching multiple transmitters 2x P2 1x UP + STOP Press 2x the P2 Press 1x simultaneously The added mini- Button. (a) the up and stop button. (b) remote is ready for use. Up to 10 remotes per receiver. You can control as many receivers as you wish with 1 channel. ____________________________________________________ Dot-move setting 1x UP + STOP...
