Manual
Closed Loop Stepping System Manual
STDF PD - Pulse-direction

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STDF PD and is the answer not in the manual?

Questions and answers

Related Manuals for Unimotion STDF PD

Summary of Contents for Unimotion STDF PD

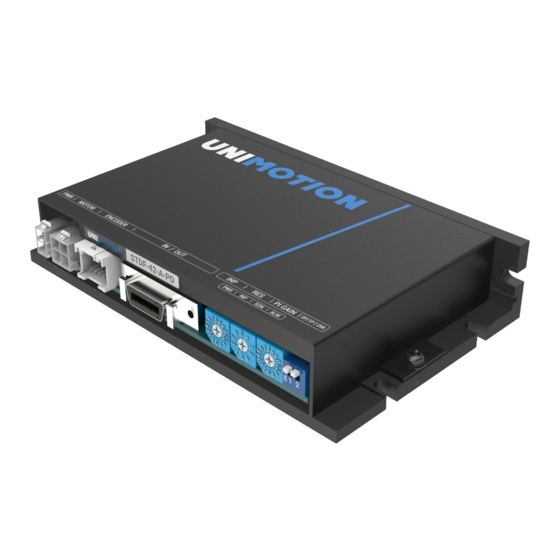

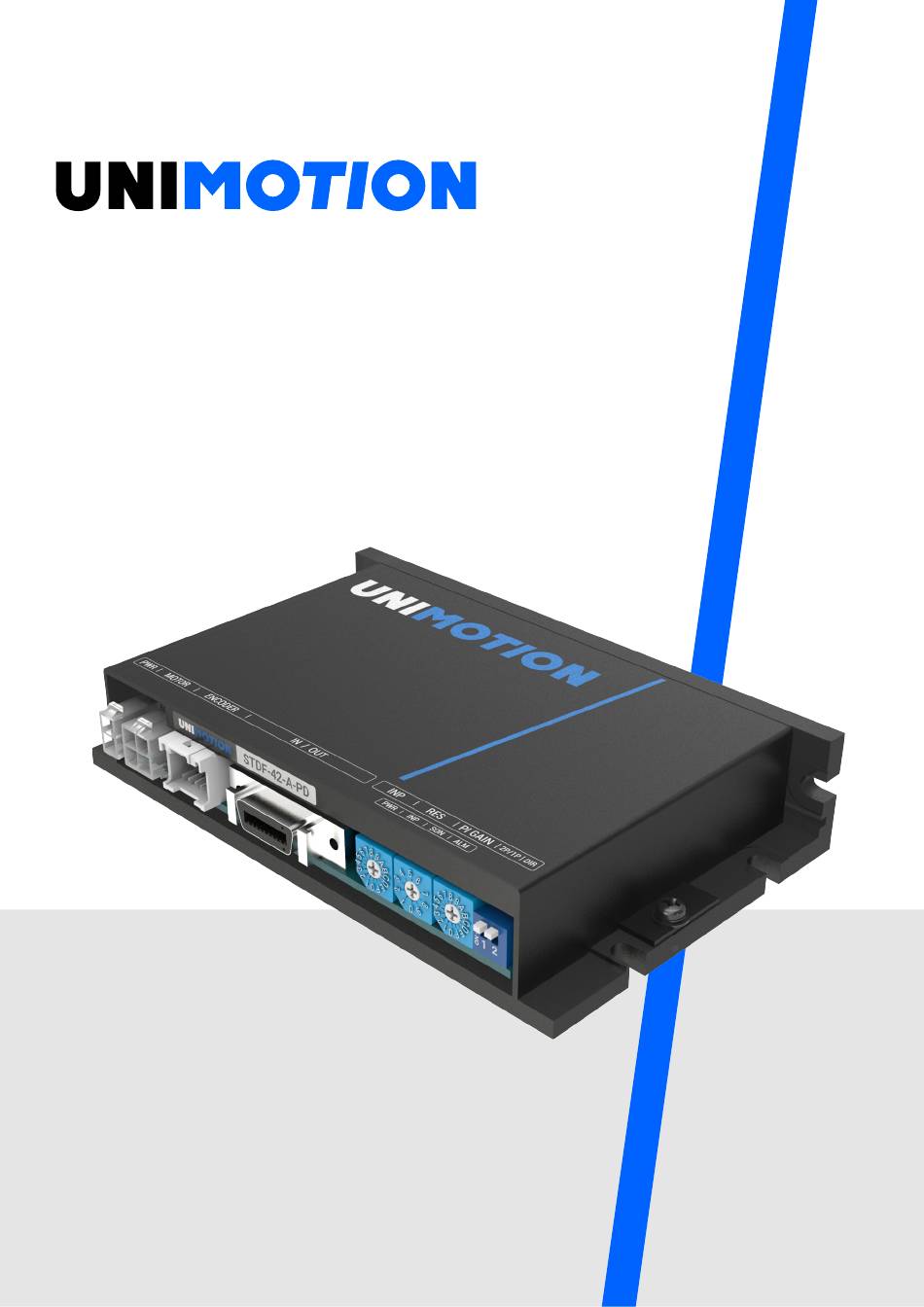

  • Page 1 Manual Closed Loop Stepping System Manual STDF PD - Pulse-direction...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Before operation Precautions ......................4 1.1.1 Put the Safety First ..................... 4 1.1.2 Operation ........................5 1.1.3 Check and Repair ......................5 Drive Specification and Dimension Specifications of Drive .................... 6 Model naming ......................7 Product dimensions ....................7 Installation Precautions of installation ..................

  • Page 4: Before Operation

    This manual describes handling, maintenance, repair, diagnosis and troubleshooting of the STDF PD. Before operating with STDF PD, thoroughly read this manual. After reading the manual, keep the manual near the STDF PD so that any user can read it whenever required. Precautions 1.1.1 Put the Safety First...

  • Page 5: 1.1.2 Operation

    The machine may get damaged or the user may get injured. Make all input signals OFF before supply input voltage to STDF PD. The machine may get damaged or the user may get injured by motor operation.

  • Page 6: Drive Specification And Dimension

    DRIVE SPECIFICATION AND DIMENSION Specifications of Drive Table 2-1: Drive specifications. 24 V DC +/- 10% Input Voltage Closed loop control with 32-bit MCU Control Method Max 500 mA (Except the motor current) Current Consuption In Use: 0 ∼ 50 °C Ambient temperature In Storage: –20 ∼...

  • Page 7: Model Naming

    Model naming Figure 2-1: Model naming. Product dimensions Figure 2-2: Dimensions of the STDF PD drive. 7/24...

  • Page 8: Installation

    3. If the temperature of the product case is higher than 50 °C, radiate heat of the outside to cool down. 4. Do not install STDF PD under direct rays, near magnetic or radioactive objects. 5. If you set more than 2 drives, you must set over 20 mm vertically and over 50 mm horizontally as shown below.

  • Page 9: Brake Operation Timing Chart

    STDF PD controls Brake by Drive automatically. Please refer to below Timing Chart when Brake is controlled by the upper controller other than using STDF PD Brake control. Otherwise, Drive malfunctioning and loads can be fall down. Also, please do not operate Brake while motor operation to prevent damage.

  • Page 10: Settings And Operation

    SETTINGS AND OPERATION Drive Status LED Table 5-1: Drive status LED indication. Indication Color Function ON/OFF Condition LED is turned On Green Power indication when power is applied Lights On when Positioning error Complete reaches within the Yellow Positioning Motion preset pulse selected by rotary switch...

  • Page 11: Pulse Input Setting Switch (Sw1.1)

    Table 5-2: Protection functions and LED flash times. Times Protection Conditions The current through power devices if inverter Over Current Error exceeds the limit value of 4.8 A. Over Speed Error Motor speed exceeds 3000 rpm. Position error value is higher than 180°in motor Position Tracking Error run state.

  • Page 12: Rotational Direction Setting Switch (Sw1.2)

    Rotational Direction Setting Switch (SW1.2) Table 5-3: Rotational direction setting switch function. Indication Switch Name Function Switching Rotational Based on CW (+DIR signal) input to driver. Direction Figure 5-3: Rotation direction setting. Resolution Setting Switch (SW3) Table 5-4: Number of pulses per revolution. Position Pulse/Revolution 1000...

  • Page 13: Position Controller Gain Setting Switch (Sw2)

    Position Controller Gain Setting Switch (SW2) The Position Controller Gain Switch allows for the correction of the motor position deviation after stopping caused by load and friction. Depending on the motor load, the user may have to select a different gain position to stabilize and to correct positional error quickly. To tune the controller: 1.

  • Page 14: In-Position Value Setting Switch (Sw4)

    In-Position Value Setting Switch (SW4) To select the output condition of In-Position signal, In-Position output signal is generated when the pulse number of positional error is lower than selected In-Position value set by this switch after positioning command is executed. Table 5-6: In-Position values.

  • Page 15: Encoder Connector (Cn2)

    Encoder Connector (CN2) Table 5-7: Encoder connector signals. Function Input Input Input Input Input Input 5 V DC Output Output Figure 5-5: Encoder Connector. F.GND ---- F.GND ---- Input/Output Signal Connector (CN1) Table 5-8: I/O Connector signals. Function CW+ (Pulse+) Input CW- (Pulse-) Input...

  • Page 16: Motor Connector (Cn3)

    Motor Connector (CN3) Table 5-9: Motor Connector signals. Function A Phase Output B Phase Output /A Phase Output /B Phase Output Figure 5-7: Motor Connector. 5.10 Power Connector (CN4) Table 5-10: Powe Connector signals. Function 24 V DC Input Figure 5-8: Power Connector. Input 16/24...

  • Page 17: System Configuration

    SYSTEM CONFIGURATION Figure 6-1: System configuration. 17/24...

  • Page 18: External Wiring Diagram

    External Wiring Diagram Figure 6-2: External wiring diagram. 18/24...

  • Page 19: Control Signal Input/Output Description

    CONTROL SIGNAL INPUT/OUTPUT DESCRIPTION Input Signal Input signals of the drive are all photocoupler protected. The signal shows the status of internal photocouplers [ON: conduction], [OFF: Non-conduction], not displaying the voltage levels of the signal. CW, CCW Input Table 7-1: CW and CCW input functions.. Pin No.

  • Page 20: Servo On/Off Input

    Servo On/Off Input Table 7-2: Servo On/Off input functions. Pin No. Function Servo On/Off Alarm Reset EXT_24 V DC Figure 7-1: Alarm reset and Servo On/Off wiring diagram. This input can be used only to adjust the position by moving the motor shaft manually from the load-side.

  • Page 21: Output Signal

    By setting the alarm reset input signal [ON], cancel the Alarm output. Before cancel the Alarm output, have to remove the source of alarm. Output signal Output signals from the driver are photocoupler protected: Alarm, In-Position and the Line Driver Outputs (encoder signal). In the case of photocoupler outputs, the signal indicates the status of internal photocouplers [ON : conduction], [OFF : Non-conduction], not displaying the voltage levels of the signal.

  • Page 22: In-Position Output

    In-Position Output In-Position signal is [ON] when positioning is completed. This signal is [ON] when the motor position error is within the value set by the switch SW4. Figure 7-4: In-Position signal graph. Encoder Signal Output Table 7-4: Encoder Signal Output functions. Pin No.
  • Page 24 GERM A NY NO RT H A M ER IC A Unimotion GmbH Unimotion North America, Inc. Waldstrasse 20 3952 Ben Hur Ave, Unit 5 D - 78736 Epfendorf Willoughby, OH 44094...
