MAGNUM SERIES (A41) 3-TIER DUMBBELL RACK WITH SADDLES
UNPACKING MAGNUM (A41) 3-TIER DUMBBELL RACK WITH SADDLES
Thank you for purchasing a MATRIX Fitness product. Your MAGNUM SERIES (A41) 3-TIER DUMBBELL RACK WITH SADDLES is inspected before it is
packaged. It is shipped in multiple pieces to facilitate the compact packaging of the machine. Prior to assembly, confirm all the components by matching them
with the exploded diagrams. Carefully unpack the unit from this box and dispose of the packing materials in accordance with your local laws.
CAUTION
To avoid injury to yourself and prevent damage to the frame components, be sure to have proper assistance removing the frame pieces from this box. Please be
sure to install the equipment on a stable base, properly level the machine and leave at least two feet of clearance to enter and exit the machine.

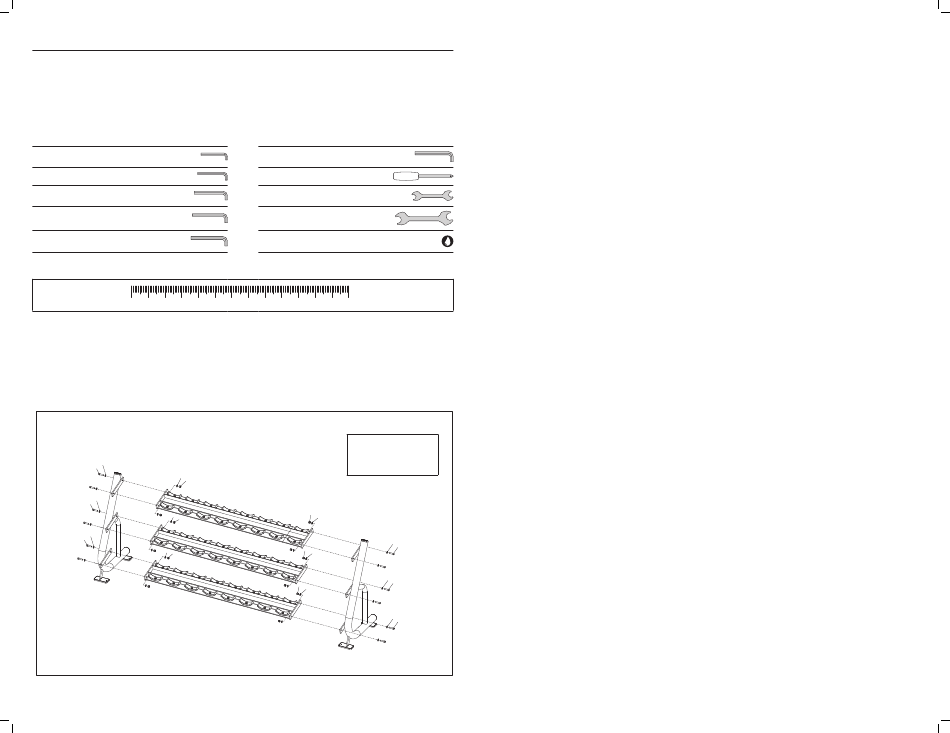

INCLUDED TOOLS REQUIRED FOR ASSEMBLY
3MM L-Shaped Allen Wrench
4MM L-Shaped Allen Wrench
5MM L-Shaped Allen Wrench
6MM L-Shaped Allen Wrench
8MM L-Shaped Allen Wrench
If any items are missing please contact your country's local MATRIX dealer for assistance.
0 10 20 30 40
mm
Step 1
Z03x2
Z02x2
Z03x2
Z01x2
Z03x2
Z02x2
Z03x2
Z01x2
Z03x2
Z02x2
Z03x2 Z01x2
MX_13_Magnum_A41_OM_r1_0.indd 2
10MM L-Shaped Allen Wrench
Phillips Screwdriver
8MM Open-End Wrench
17MM Open-End Wrench
Guide Rod Lubrication
50 60 70 80 90 100 110 120 130
Frame Detail
Item Description
Z01 Nylon Nut (M12)
Z02 Screw (M12x40L)
Z03 Flat Washer (M12)
Z01x2
Z03x2
Z03x2
Z01x2
Z03x2
Z03x2
Z01x2
Z03x2
Z03x2
Qty
12
12
24
Z02x2
Z02x2
Z02x2
