esera automation MS 100 User Manual

esera automation MS 100 User Manual

Multisensor temperature, humidity and brightness for 1-wire bus system

Advertisement

Quick Links

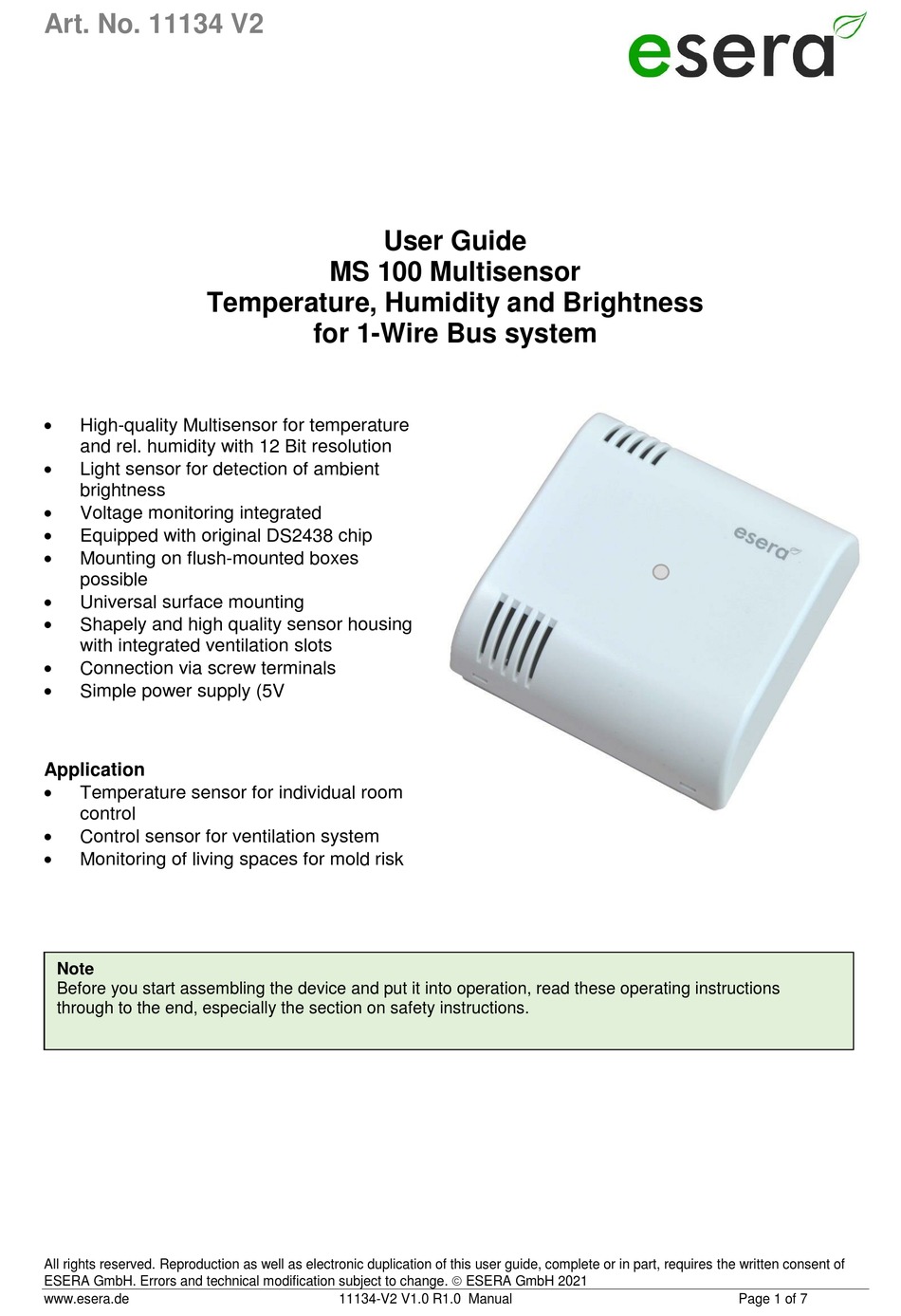

Art. No. 11134 V2
Temperature, Humidity and Brightness
High-quality Multisensor for temperature
and rel. humidity with 12 Bit resolution
Light sensor for detection of ambient
brightness
Voltage monitoring integrated
Equipped with original DS2438 chip
Mounting on flush-mounted boxes
possible
Universal surface mounting
Shapely and high quality sensor housing
with integrated ventilation slots
Connection via screw terminals
Simple power supply (5V
Application
Temperature sensor for individual room
control
Control sensor for ventilation system
Monitoring of living spaces for mold risk
Note
Before you start assembling the device and put it into operation, read these operating instructions
through to the end, especially the section on safety instructions.
All rights reserved. Reproduction as well as electronic duplication of this user guide, complete or in part, requires the written consent of
ESERA GmbH. Errors and technical modification subject to change. ESERA GmbH 2021
www.esera.de
User Guide
MS 100 Multisensor
for 1-Wire Bus system
11134-V2 V1.0 R1.0 Manual
Page 1 of 7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS 100 and is the answer not in the manual?

Questions and answers

Summary of Contents for esera automation MS 100

  • Page 1 Art. No. 11134 V2 User Guide MS 100 Multisensor Temperature, Humidity and Brightness for 1-Wire Bus system  High-quality Multisensor for temperature and rel. humidity with 12 Bit resolution  Light sensor for detection of ambient brightness  Voltage monitoring integrated ...
  • Page 2 The Multisensor is also optimal to warn of possible mold formation. The MS 100 Multisensor is intended for use in normal living spaces. For outdoor use and in damp rooms, such as sauna or steam bath, a suitable sensor is available from the ESERA website.
  • Page 3 EN 61000-6-1, Interference immunity EN 61000-6-3, Interference radiation RoHS Connection diagram The connection diagram is available in the store as a MS 100 separate document. Multisensor The Temperature and Humidity Sensor is connected by screw terminals. The pin assignment of the screw terminals is printed on the printed circuit board.
  • Page 4 Control via 1-Wire Controller / ECO 1-Wire Controller The control and data output of the MS 100 Multisensor via the 1-Wire Controller / 1-Wire Gateway is very simplified. The current sensor data is output continuously. No query of the data is necessary and available.
  • Page 5 Art. No. 11134 V2 Manual calculation of the sensor values The following formula can be used to evaluate the humidity sensor. VDD = operating voltage (5V), VAD = humidity sensor, analog value of the DS2438, Xsense = light sensor, analog value of the DS2438. Humidity calculation Offset = 0.847847 (Zero Offset V), slope = 29.404604 (Slope: mV/ %RH) Srh = (VAD_new - offset) / (slope / 1000)
  • Page 6 In disturbed, commercial and industrial environments, the cable should always be shielded in order to increase the "robustness" or interference sensitivity of the system. Note The above statements on 1-Wire are hints and tips and do not describe any product property or represent any guaranteed product property of the product and the 1-Wire Controllers.
  • Page 7 Art. No. 11134 V2  If measurements with an open housing are unavoidable, for safety reasons an isolating transformer must be installed upstream or a suitable power supply can be used.  After installing the required tests according to DGUV / regulation 3 (German statutory accident insurance, https://en.wikipedia.org/wiki/German_Statutory_Accident_Insurance must be carried out.
