esera automation Multisensor Pro 11150 User Manual

Art. No. 11150

Professional temperature- and humidity-sensor
for private, schools,
public buildings and companies

Precise temperature- and humidity-sensor with
12Bit resolution

Universal on-wall mounting

Stylish and high quality sensor housing

Easy voltage supply (5VDC)
Application:

Heating control (control of individual rooms)

Control sensor for ventilation system

Monitoring of living areas for risks of mould
1

Introduction

Before you start assembling the 1-Wire Multisensor Pro and before you take the device into operation, please
read this assembly and operating instruction carefully to the end, especially the section referring to the safety
notes.
2

Product description

With the ESERA 1-Wire Multisensor Pro you have acquired a professional and highly accurate multi-sensor.
Due to the new technology of the ESERA 1-Wire Pro sensors, the accuracy of humidity measurements is on
average 200 – 300 % higher compared to most standard sensors on the market.
Due to the use of highly integrated sensors with 12-bit resolution, the 1-Wire Multisensor delivers very
accurate values for temperature and relative humidity. In addition, the evaluation of the delivered measured
values is enormously simplified.
The 1-Wire Multisensor Pro enables easy climate monitoring of all rooms and buildings.

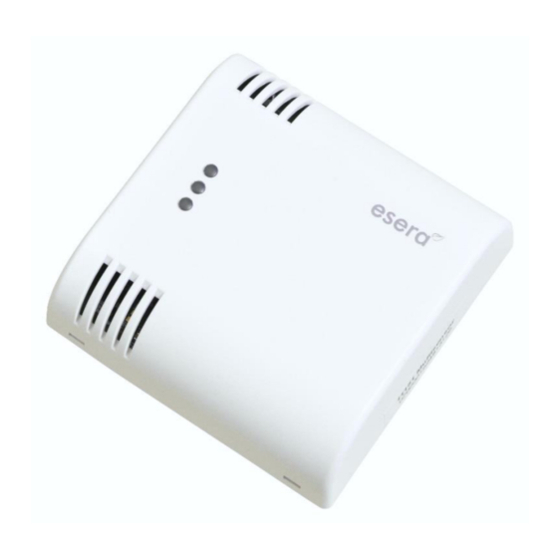

The 1-Wire Multisensor Pro is installed in a stylish wall-mounted housing and fits perfectly in modern living
and business areas.
Due to the wide ventilation openings, the 1-Wire Multisensor Pro detects climatic conditions in rooms and
buildings very exactly and quickly. For all types of radiator and heating control, an accurate temperature
sensor, as installed in this Multisensor, is an important component.
In combination with 1-Wire ESERA switching modules / binary outputs, a very effective and energy-saving
heating control (individual room control) is possible.
The 1-Wire Multisensor Pro is intended for use in normal living spaces. For outdoor use and in damp rooms, such
as saunas or steam baths, a matching sensor is available on the ESERA website.
Calibration of the sensors is not necessary. The 1-Wire Multisensor Pro can be put into operation immediately
without any waiting time.
The electrical connection to the 1-Wire bus system of the 1-Wire Multisensor Pro is carried out with screwless
push-in terminals and can be operated in standard mode, 3 cables for ground, data and 5V.
Each 1-Wire Multisensor Pro has an individual serial number.
All rights reserved. Reproduction as well as electronic duplication of this user guide, complete or in part, requires the written consent of
ESERA GmbH. Errors and technical modification subject to change. ESERA GmbH, ESERA-Automation 2020
www.esera.de
User Guide
1-Wire Multisensor Pro for
Temperature and Air Humidity
11150 V2.0 R1.0 Manual Page 1 of 5
