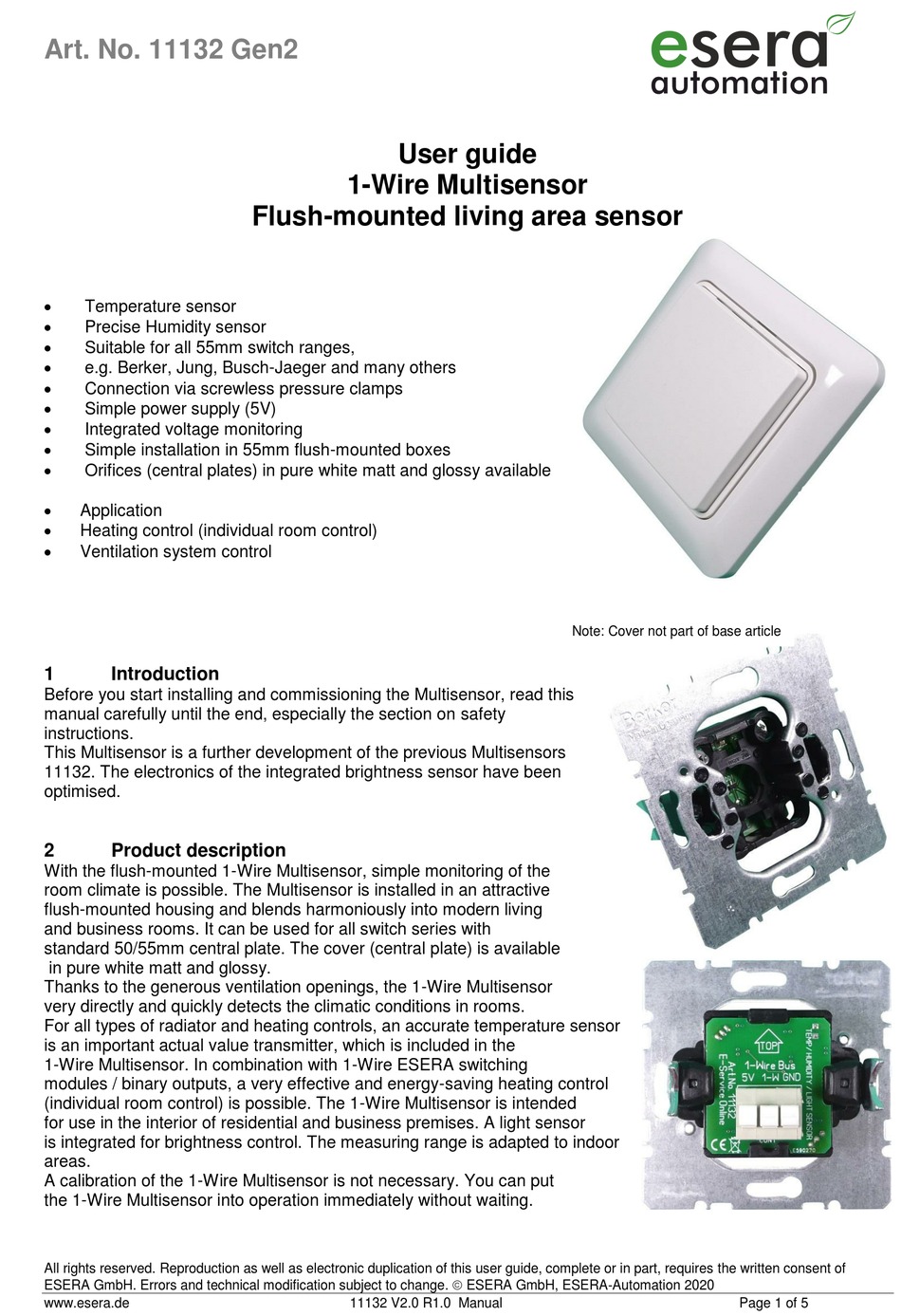

esera automation Multisensor 11132 Gen2 User Manual

Art. No. 11132 Gen2

Temperature sensor

Precise Humidity sensor

Suitable for all 55mm switch ranges,

e.g. Berker, Jung, Busch-Jaeger and many others

Connection via screwless pressure clamps

Simple power supply (5V)

Integrated voltage monitoring

Simple installation in 55mm flush-mounted boxes

Orifices (central plates) in pure white matt and glossy available

Application

Heating control (individual room control)

Ventilation system control
1

Introduction

Before you start installing and commissioning the Multisensor, read this
manual carefully until the end, especially the section on safety
instructions.
This Multisensor is a further development of the previous Multisensors
11132. The electronics of the integrated brightness sensor have been
optimised.
2

Product description

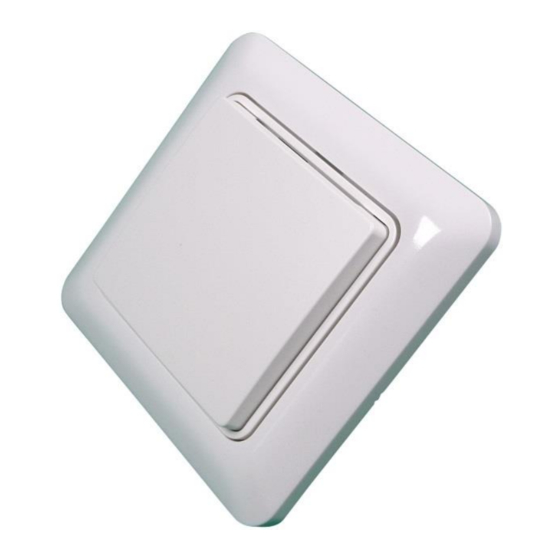

With the flush-mounted 1-Wire Multisensor, simple monitoring of the
room climate is possible. The Multisensor is installed in an attractive
flush-mounted housing and blends harmoniously into modern living
and business rooms. It can be used for all switch series with
standard 50/55mm central plate. The cover (central plate) is available
in pure white matt and glossy.
Thanks to the generous ventilation openings, the 1-Wire Multisensor
very directly and quickly detects the climatic conditions in rooms.
For all types of radiator and heating controls, an accurate temperature sensor
is an important actual value transmitter, which is included in the
1-Wire Multisensor. In combination with 1-Wire ESERA switching
modules / binary outputs, a very effective and energy-saving heating control
(individual room control) is possible. The 1-Wire Multisensor is intended
for use in the interior of residential and business premises. A light sensor
is integrated for brightness control. The measuring range is adapted to indoor
areas.
A calibration of the 1-Wire Multisensor is not necessary. You can put
the 1-Wire Multisensor into operation immediately without waiting.
All rights reserved. Reproduction as well as electronic duplication of this user guide, complete or in part, requires the written consent of
ESERA GmbH. Errors and technical modification subject to change. ESERA GmbH, ESERA-Automation 2020
www.esera.de
User guide
1-Wire Multisensor
Flush-mounted living area sensor
11132 V2.0 R1.0 Manual
Note: Cover not part of base article
