Art. No. 20020
Performance characteristics
Private and professional applications
weather station
Heating for winter operation
Robust connection cable 3m
Lacquering grey hammer finish lacquer
Stainless steel ball bearings and
screws
Typical fields of application
Protection of awnings, roller shutters
and slats from gusts of wind
Mounting on 50mm mast
(antenna mast)
Wall or roof bracket
flat roof mast
1
Product description
With the professional wind sensor Pro 200, the current wind speed can be recorded and, e.g. in gusts of wind, the
information for retracting an awning or raising roller shutters or blinds / slats can be provided via the system
control.
The wind sensor Pro 200 is an optimal environmental sensor for recording the wind speed for weather recording
in weather stations.
All metal parts of the Pro 200 wind sensor, such as bearings and screws, are made of weather-resistant stainless
steel and are durable over a long period of time. This makes them suitable for many years of continuous use in
professional Smart Home operation or building automation.
Via the sensor interface (S0 interface) impulses are output depending on the wind speed. 4 pulses are output per
revolution. 4 pulses correspond to a speed of 1m/s.
The Pro 200 wind sensor has a pulse output and is intended for connection to the 1-Wire S0 counter module (Art.
No. 11211) or comparable counter inputs.The sensor is weatherproof and has an approx. 3 meter long
connection cable. A mounting bracket, wall bracket or pole for roof mounting (vertical) are available as
accessories.
The energy-saving heating of the wind sensor ensures operation even in winter during snowfall, rain and frost.
All rights reserved. Reproduction as well as electronic duplication of this user guide, complete or in part, requires the written consent of
ESERA-Automation or E-Service GmbH. Errors and technical modification subject to change. ESERA-Automation, E-Service GmbH 2019
www.esera.de

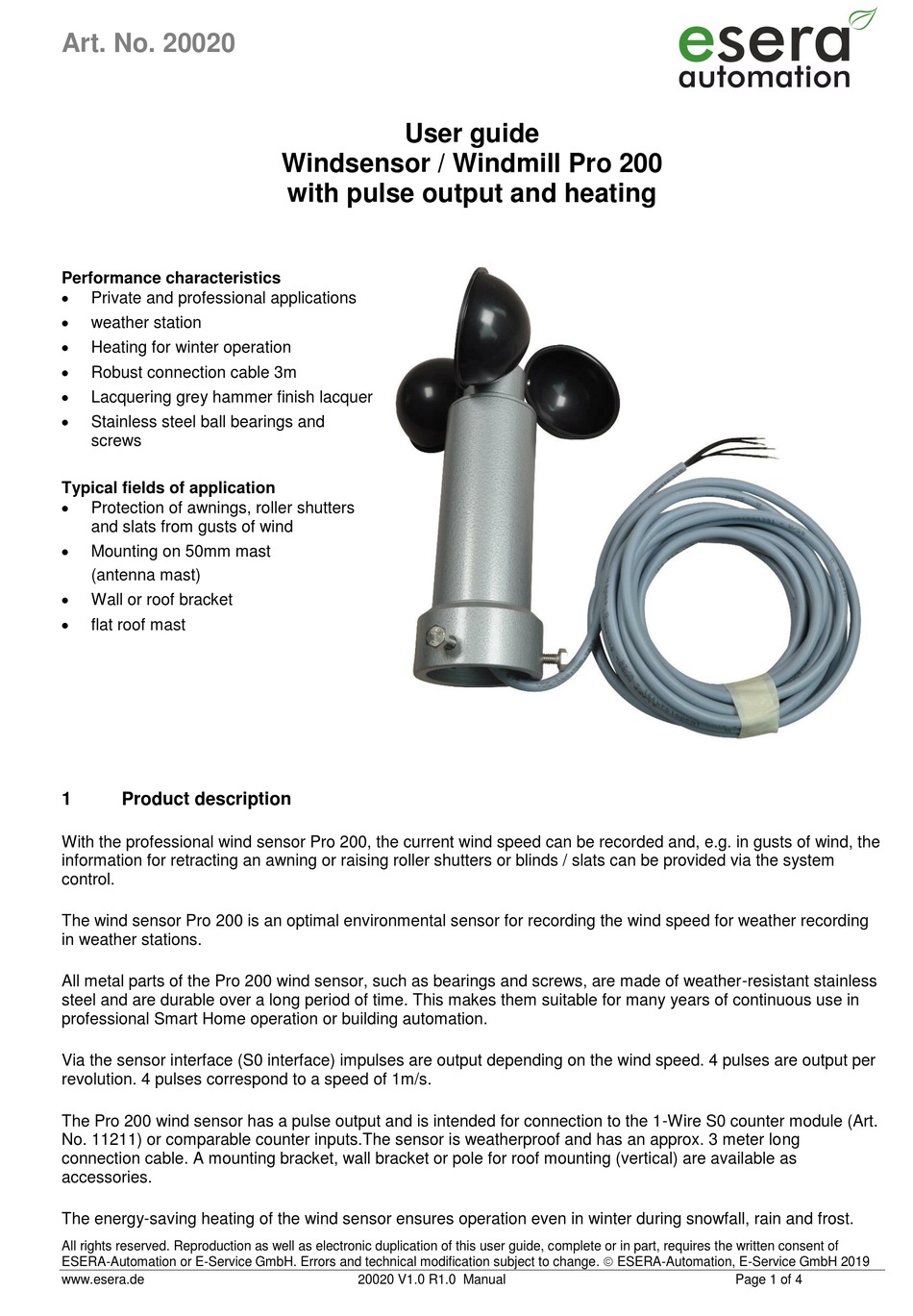

User guide

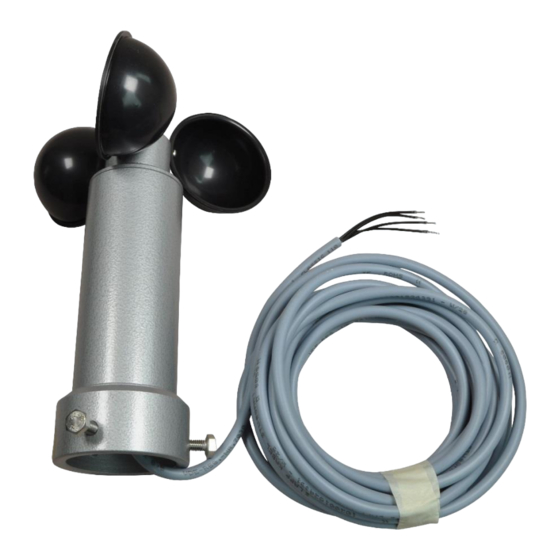

Windsensor / Windmill Pro 200
with pulse output and heating
20020 V1.0 R1.0 Manual
Page 1 of 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for esera automation Windsensor Pro 200
Summary of Contents for esera automation Windsensor Pro 200
- Page 1 Art. No. 20020 User guide Windsensor / Windmill Pro 200 with pulse output and heating Performance characteristics Private and professional applications weather station Heating for winter operation Robust connection cable 3m Lacquering grey hammer finish lacquer ...
- Page 2 Technical data Measuring range 0 - 50m/s Output signal Sensor 4 pulses / 1 m/s Electrical data - Heating: 24 V AC or DC ca. 25mA - Pulse output (normally open contact) max. 24VAC/DC 10mA Connecting cables ca. 3m cable, 4-strands Evaluation Pulse output for 1-Wire S0 counter 11211 Dimensions...
- Page 3 Art. No. 20020 Connection example 1-Wire System and 1-Wire Controller / 1-Wire Gateway Software / Evaluation The wind sensor delivers 4 pulses per revolution. To calculate the wind speed, the pulses are usually counted for a period of e.g. 1 minute, in our example by the ESERA 1-Wire S0 counter 11211 and then divided by the factor 4 (4 pulses = 1m/s).
- Page 4 When using components or modules it is absolutely necessary to comply with the requirements set out in the accompanying description specifications for electrical quantities. If the available description is not clear to the non-commercial end-user what the applicable electrical characteristics for a part or assembly are, how to connect an external circuit, which external components or additional devices can be connected or which values these external components may have, a qualified electrician must be consulted.
