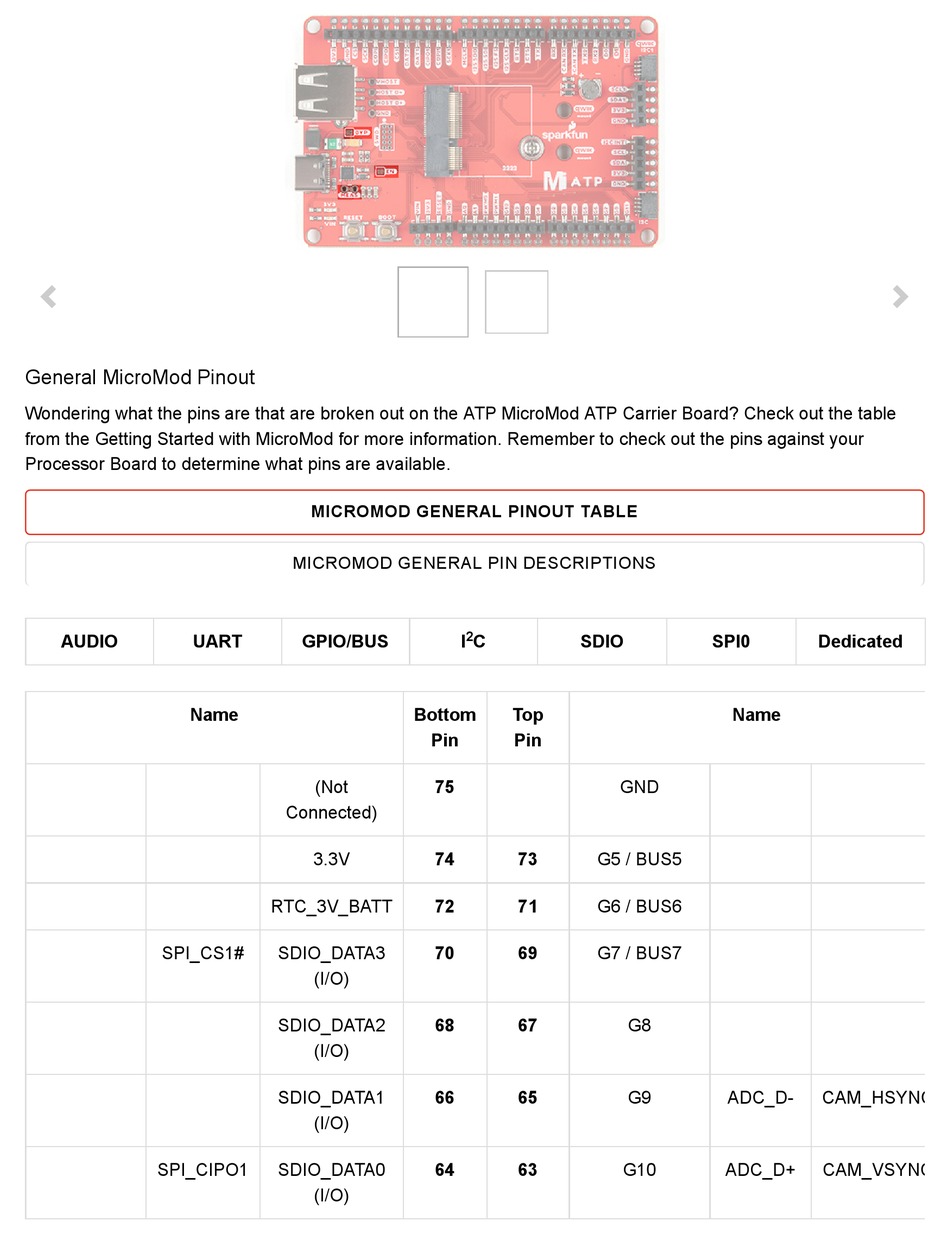

General MicroMod Pinout
Wondering what the pins are that are broken out on the ATP MicroMod ATP Carrier Board? Check out the table
from the Getting Started with MicroMod for more information. Remember to check out the pins against your
Processor Board to determine what pins are available.
AUDIO UART
Name
SPI_CS1#
SPI_CIPO1
MICROMOD GENERAL PINOUT TABLE
MICROMOD GENERAL PIN DESCRIPTIONS
GPIO/BUS
Bottom
Pin
(Not 75
Connected)
3.3V 74
RTC_3V_BATT 72
SDIO_DATA3 70
(I/O)
SDIO_DATA2 68
(I/O)
SDIO_DATA1 66
(I/O)
SDIO_DATA0 64
(I/O)
2
I C SDIO
Top
Pin
GND
73 G5 / BUS5
71 G6 / BUS6
69 G7 / BUS7
67 G8
65 G9
63 G10

SPI0 Dedicated
Name
ADC_D- CAM_HSYNC
ADC_D+ CAM_VSYNC
