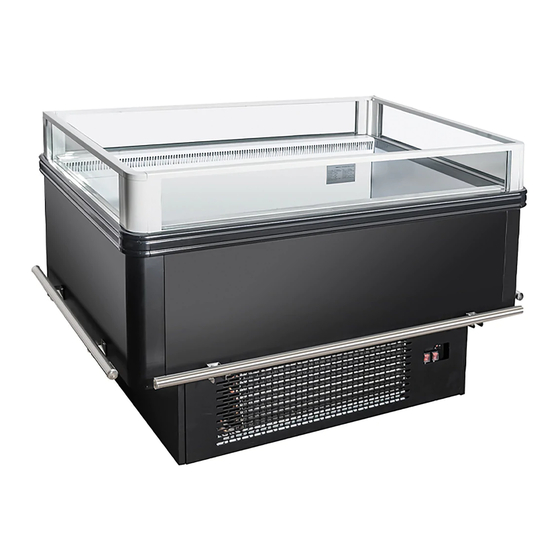

- Page 1 FILE NUMBER：Q/E 042020 Ver:01 PLUG-IN ISLAND DUAL-TEMP SHOWCASE MODEL KII OPERATING MANUAL...
- Page 2 INTRODUCTION This manual is intended for use by owners, users, installation and service partners of MVP Group branded equipment (KOOL-IT). The information is provided for the purpose of ensuring the safe and proper use of the equipment. As with all work, it is incumbent on the employer to ensure that...
- Page 3 PRODUCT ENGINEERING DATA (PED) Model Usage Frozen display for meat products, seafood, ice cream, etc Dimension mm 1580X1042X945 2080X1042X945 2580X1042X945 Capacity dm Outlook Display Aream 1.25 1.72 2.19 Foaming material PU, Density 40-45Kg/m Power supply 110V 60Hz 30 AMP Rated power 1100W 1500W 1900W...
- Page 4 Refrigerant R404a R404a Refrigerant Filling 900g 1000g 1400g Running Condition Ambient temp. 75F，HumidityRH60%，Velocity0.2m/s 0▫F ～-10▫F Temp. inside F. Performance Defrost Stop 50▫F Temp. Temp. Setting -6▫F Drainage Pipe φ22 CASE PROFILE...
-
Page 5: Electrical Schematic Diagram
ELECTRICAL SCHEMATIC DIAGRAM KOOL-IT MODEL KII Plug-in island cabinet 棕 棕 棕 棕 黑 红 1.压在Q1、F和KM上 红 红 棕 黑 红 红 红 红 红 蓝 蓝 蓝 蓝 蓝 红 红 红 棕 红 1.5mm 1.5mm 1.5mm 1.5mm 的线均需压Y型端子... -
Page 6: Handling And Transport
HANDLING AND TRANSPORT Please pay attention to balance and make sure of the forklift to hold the pallet. Do not affect the structure of the showcase and cause damage on the refrigeration cabinet. The showcase should be kept horizontal, avoid flipping over and leaning when removing. -
Page 7: Ambient Condition
ENVIRONMENT The showcase has a specific design environment, please use it in the conditions in the following form, otherwise will affect the refrigeration effect. SUBJECT AMBIENT CONDITION AMBIENT TEMPERATURE <75F. RELATIVE HUMIDITY <60％ AIR SPEED <0.2m/s Using conditions： ⚫ Must be used in air-conditioned environment; ⚫... - Page 8 power cord cannot be used for an extension; ⚫ The power introduced adopts the system of L, N, E，Due to large refrigeration system and electrical power lines, please use a separate power supply mode to ensure reliable grounding and electric leakage protection. ⚫...
- Page 9 ⚫ Remove cabinet inside floor, clean the internal dirt, be careful don't drain plug. 2） Cleaning outside of display case ⚫ Please wipe with wet cloth once a day; ⚫ Please clean the surface dry and wet cloth with neutral detergent, then wipe with dry cloth once a week;...
