Haws GalvinSafe 190.42.11.12 Product Installation Manualline

GalvinSafe

Activated, Axion

PRODUCT CODE:

Galvin Engineering: 190.42.11.12

HAWS: 7778B-A

PRE - INSTALLATION

LOCATION OF UNIT: The Model 190.42.11.12 (7778B-A) Eye/Face Wash should be

installed in close proximity to potential accident areas. It should be clearly identified, free

from obstructions and easy to access.

SUPPLY LINE: The minimum recommended line size is 1/2" BSP with 210 – 600 kPa

flowing pressure. Where sediment or mineral content is a problem, an inlet filter is

recommended.

PLUMBING CONNECTIONS: Inlet supply is female 1/2" BSPP. Waste outlet is male 1-

1/4" BSPT.

Refer to installation drawing to clarify installation procedure.

Eye/Face Wash, Wall Mtd, Hand

MSR Head & S/Steel Bowl (HAWS)

Version 4.2, 19

Oct. 2021, Page 1 of 7

Table of Contents

Do you have a question about the GalvinSafe 190.42.11.12 and is the answer not in the manual?

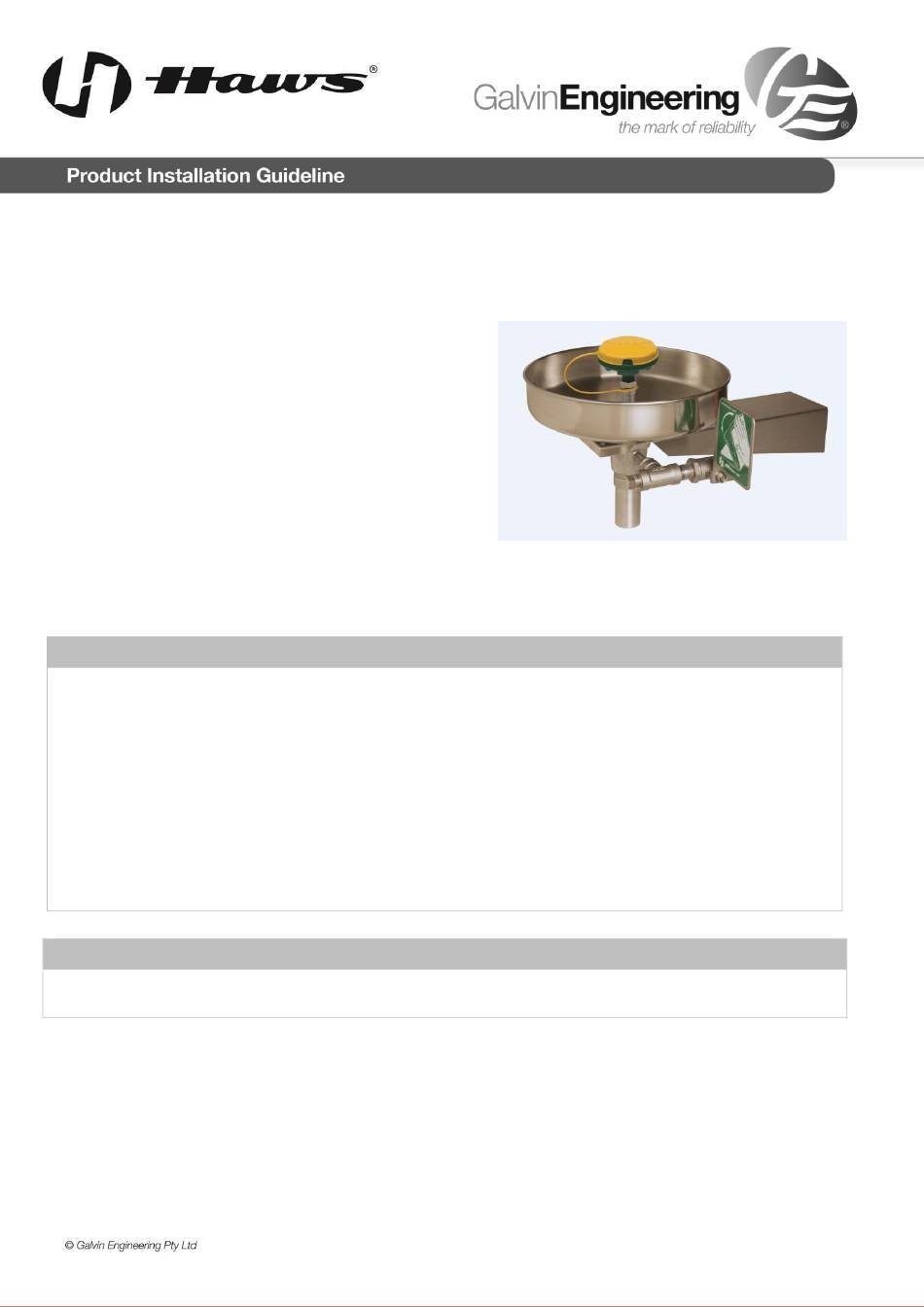

Page 1 Oct. 2021, Page 1 of 7 ® GalvinSafe Eye/Face Wash, Wall Mtd, Hand ® Activated, Axion MSR Head & S/Steel Bowl (HAWS) PRODUCT CODE: Galvin Engineering: 190.42.11.12 HAWS: 7778B-A PRE - INSTALLATION LOCATION OF UNIT: The Model 190.42.11.12 (7778B-A) Eye/Face Wash should be installed in close proximity to potential accident areas.
Page 2 ITEM CODE ITEM DESCRIPTION GALVINSAFE SS304 EYEWASH BOWL (HAWS) 190.92.22.20 EMERGENCY EYE WASH SIGN - 270X200 190.91.12.32 190.92.41.30 GALVINSAFE SS316 EYEWASH VALVE PLUS PUSH FLAG (HAWS) DUST COVER ASSEMBLY* (OPTIONAL) 190.92.12.10 EYE/FACE WASH ASSEMBLY 190.91.80.33 TEST TAG L-STRAINER* * spare part will require special order or may not be available (contact Galvin engineering for more details).
Page 3 Version 4.2, 19 Oct. 2021, Page 3 of 7...
Page 4 4. Water does not drain properly. 4. Check the main waste line of your building to see if it does handle the capacity required for the entire drainage system. ® For more information about GalvinSafe (Haws) products, see our website.
Page 5 Version 4.2, 19 Oct. 2021, Page 5 of 7...
Page 6 Version 4.2, 19 Oct. 2021, Page 6 of 7...
Page 7 Version 4.2, 19 Oct. 2021, Page 7 of 7 WARRANTY The warranty set forth herein is given expressly and is the only warranty given by the Galvin Engineering Pty Ltd. With respect to the product, Galvin Engineering Pty Ltd makes no other warranties, express or implied. Galvin Engineering Pty.
