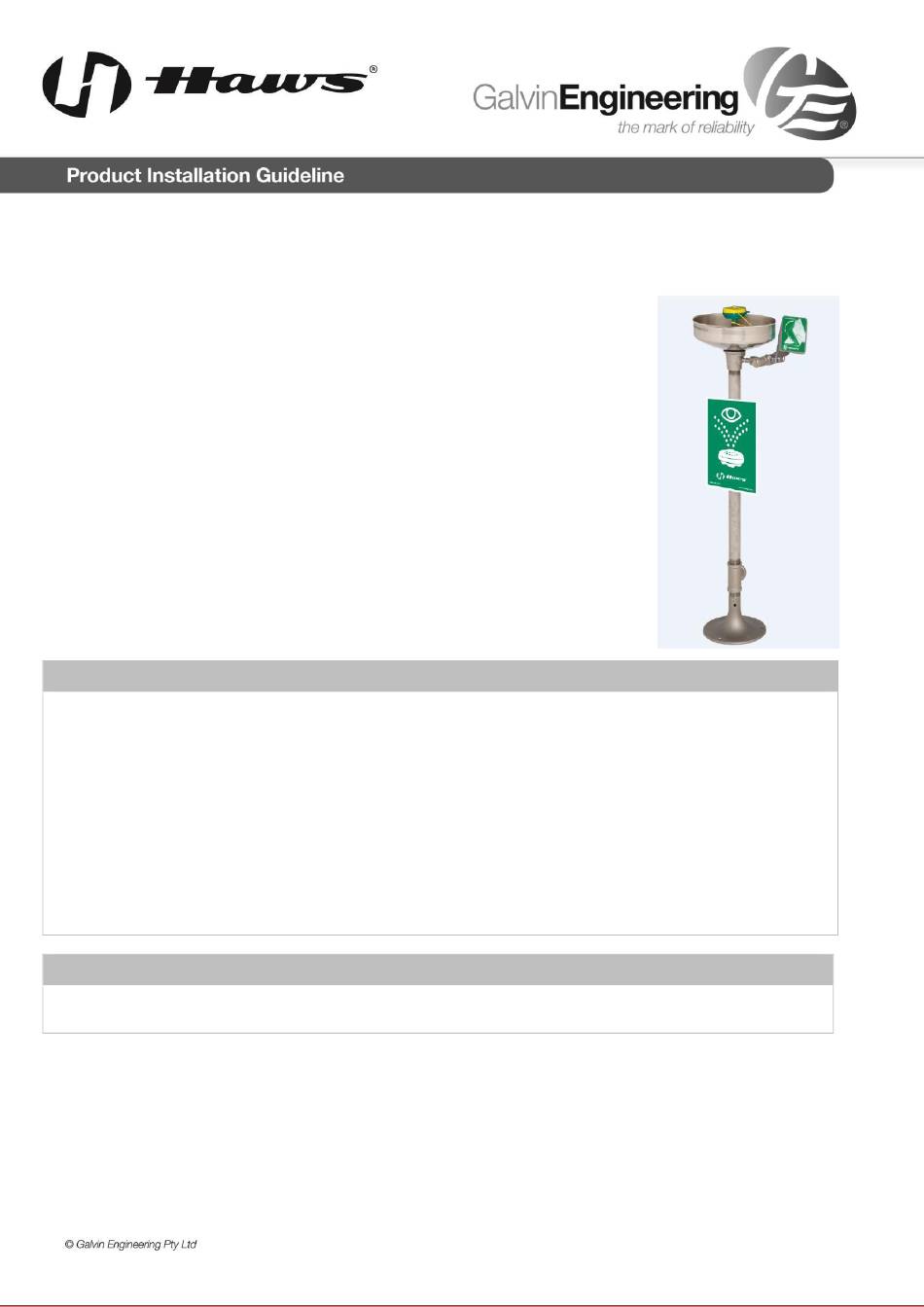

Haws 190.82.11.12 Product Installation Manualline

Download this manual

GalvinSafe

Wash Head, S/Steel Bowl, Hand Act, (HAWS)

PRODUCT CODE:

Galvin Engineering: 190.82.11.12

HAWS: 7777-A

PRE - INSTALLATION

LOCATION OF UNIT: The Model 190.82.11.12 (7777-A) Stainless Steel combination

Shower Eye/Face Wash should be installed in close proximity to potential accident

areas. It should be clearly identified, free from obstructions and easy to access.

SUPPLY LINE: The minimum recommended line size is 1/2" BSP with 210 – 600 kPa

flowing pressure. Where sediment or mineral content is a problem, an inlet filter is

recommended.

PLUMBING CONNECTIONS: Inlet supply is female 1/2" BSPP. Waste outlet is male 1-

1/4" BSPT.

INSTALLATION

Refer to installation drawing to clarify installation procedure.

Pedestal Floor Mtd, Axion

Version 4.2, 19

Oct. 2021, Page 1 of 6

MSR Eye/Face

Table of Contents

Need help?

Do you have a question about the 190.82.11.12 and is the answer not in the manual?

Page 1 HAWS: 7777-A PRE - INSTALLATION LOCATION OF UNIT: The Model 190.82.11.12 (7777-A) Stainless Steel combination Shower Eye/Face Wash should be installed in close proximity to potential accident areas. It should be clearly identified, free from obstructions and easy to access.
Page 2: Parts Breakdown
Version 4.2, 19 Oct. 2021, Page 2 of 6 PARTS BREAKDOWN ITEM ITEM CODE DESCRIPTION 190.92.22.20 BOWL EMERGENCY EYE SAFETY 190.91.12.32 SIGN 190.92.41.30 VALVE ASSEMBLY 190.91.22.12 FOOT TREADLE (OPTIONAL) 190.92.12.10 EYE/FACE WASH ASSEMBLY 190.91.80.33 TEST TAG L-STRAINER* SS DUST COVER ASSEMBLY* (OPTIONAL) * spare parts will require special order or may not be available (contact Galvin engineering for more details).
Page 3 Version 4.2, 19 Oct. 2021, Page 3 of 6...
Page 4: Troubleshooting
4. Water does not drain properly. 4. Check the main waste line of your building to see if it does handle the capacity required for the entire drainage system. ® For more information about GalvinSafe (Haws) products, see our website.
Page 5 Version 4.2, 19 Oct. 2021, Page 5 of 6...
Page 6: Warranty
Version 4.2, 19 Oct. 2021, Page 6 of 6 WARRANTY The warranty set forth herein is given expressly and is the only warranty given by the Galvin Engineering Pty Ltd. With respect to the product, Galvin Engineering Pty Ltd makes no other warranties, express or implied. Galvin Engineering Pty.
