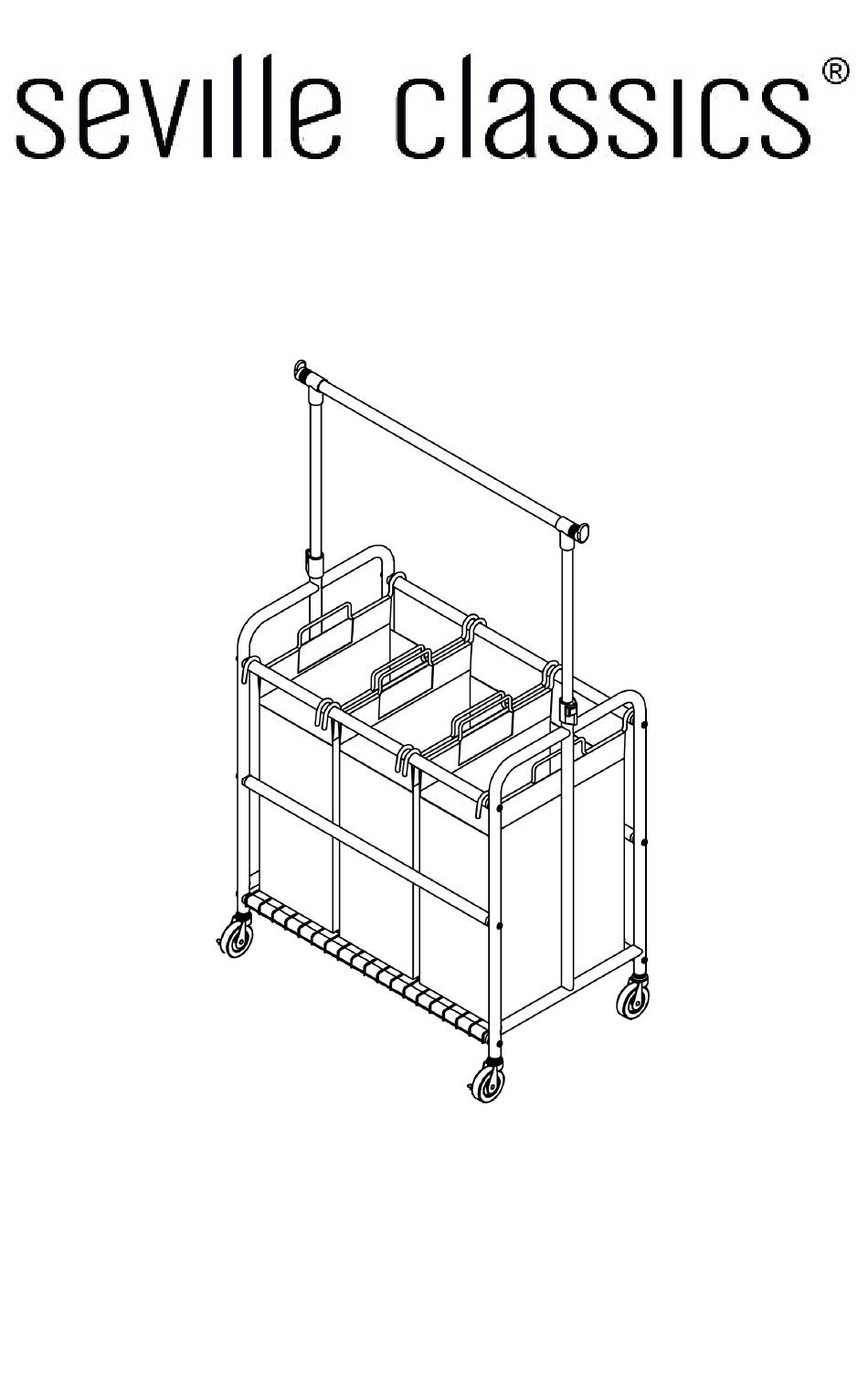

Seville Classics SHE16165 Assembly Instructions

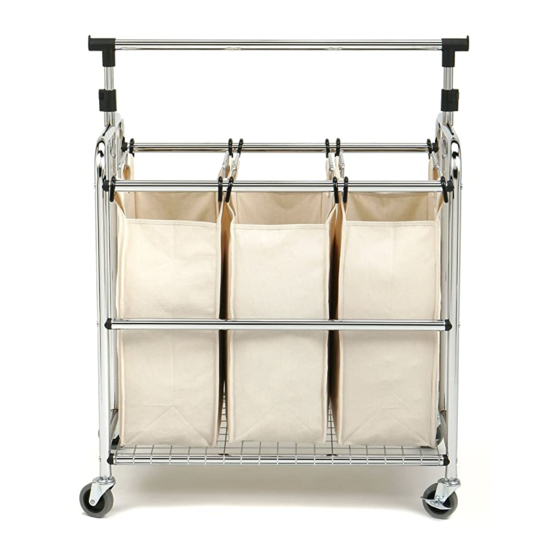

Mobile 3-bag heavy-duty laundry sorter cart /w clothes rack

Mobile 3-Bag Heavy-Duty Laundry

Sorter Cart /w Clothes Rack

Model: SHE16165

Thank you for choosing Seville Classics! We hope that you enjoy your new

hamper cart. Please read through this user guide for parts list, assembly

instructions, frequently asked questions and contact information.

032020

Table of Contents

Need help?

Do you have a question about the SHE16165 and is the answer not in the manual?

Page 1 Mobile 3-Bag Heavy-Duty Laundry Sorter Cart /w Clothes Rack Model: SHE16165 Thank you for choosing Seville Classics! We hope that you enjoy your new hamper cart. Please read through this user guide for parts list, assembly instructions, frequently asked questions and contact information.
Page 2 Parts List H. Caster (2) A. Frame (2) Locking caster (2) B. Crossbar (6) J. Wrench (1) C. Hanger bar (1) K. Cap (2) Vertical poles (2) L. Connector (2) E. Grid (1) M. Washer (12) F. Handles (6) N. Screws (12) G.
Page 3 Assembly Instructions Step 1. Connect FRAMES (A) with CROSSBARS (B). Fit WASHERS (M) between CROSSBARS (B) and FRAMES (A). Flat side of washer MUST fit in end of crossbar. Curved side of washer MUST fit against side frame. Attach with SCREWS (N) and through outside holes on FRAMES (A) using HEX KEY (O).
Page 4 Step 4. Insert HANDLES (F) to tops of BAGS (G). Hang bags on crossbars to complete. Remove bags and carry laundry from one place to another as needed. Congratulations! Enjoy your new laundry sorter with clothes hanging bar. Specifications Dimensions: 33.26" W x 19.5" D x 39" to 66" H Bag dimensions: 9.5"...
