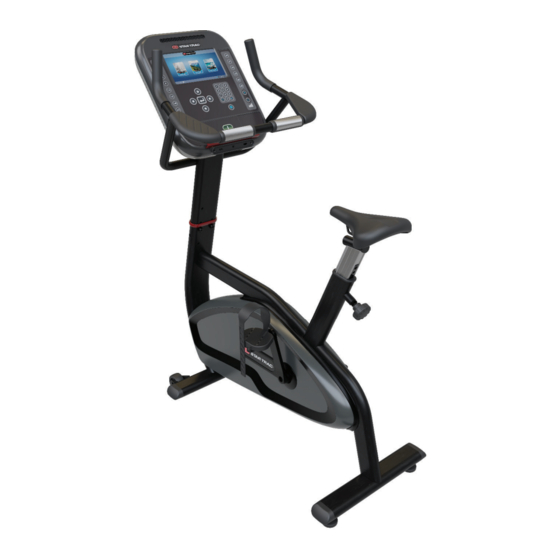

- Page 1 Core Health & Fitness Star Trac 4-UB ASSEMBLY MANUAL...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING! Before using this product, it is essential to read the ENTIRE Owner’s Manual and ALL installation instructions. The Owner’s Manual describes equipment setup and instructs members on how to use correctly and safely. Read all warnings posted on the machine. Health related injuries may result from incorrect or excessive use of exercise equipment. -
Page 3: Product Spotlight
PRODUCT SPOTLIGHT 9-3180-4UB-10IN 4-UB Overall Weight Width Length Height User Weight 132 lbs (60 kg) 22.2 in (56.6 cm) 45.9 in (116.6 cm) 57.3 in (145.6 cm) 0-450 lbs (0-204 kgs) Page 2... -
Page 4: Part Identification
PART IDENTIFICATION Console Seat Pillar Foot Mast Seat Transport Wheel Frame Seat Tube Generator Handlebar Seat Adjustment Pedal Strap Heart Rate Grips Flywheel Pedal Page 3... -
Page 5: Required Tools
Required Tools: • 6mm Allen Key • 4mm Allen Key • #2 Phillips Screwdriver • 19mm Open-ended Wrench Route the wires through the mast beauty ring (740-9313-XX), then up and out of the top of the mast. Once the wires are routed, insert the mast (718- 6006-XX) into the base frame. - Page 6 Loosen the seat pop pin and pull outwards then insert the seat post assembly (718-6016) into the frame. With the seat post sleeve fl ush into the frame, use a #2 phillips screwdriver to install two (2) pieces of the M4 x 16mm pan head screw (110-3164) to secure the sleeve to the frame.
- Page 7 Use a #2 phillips screwdriver and attach the back shroud of the console to the console mount using eight (8) pieces each of the of the #8-18 x 3/4” pan head screw (110-3402) and M4 fl at washer (120-3307). Use a #2 phillips screwdriver to secure the back shroud to the rear panel using four (4) of the #8- 18 x 3/8”...
- Page 8 Once the bike is fully assembled and is in it’s fi nal position, adjust the rear leveling feet to ensure the bike is level and stable, then use a 19mm open-ended wrench to tighten the two (2) 1/2” nuts to lock the feet. Press 0+2+OK at the same time to access the service menu.
- Page 9 Use the arrow keys to select “MODEL” on the main service menu, then press (enter) to select the “4-Bike”. See owner’s manual (620-8735) for more information. Page 8...
-
Page 10: Support And Service
SUPPORT & SERVICE CORE Get world class support for all brands with our new support portal, Core Connect. Get help with your general inquiries, warranty registration, preventative maintenance, service requests and parts orders. You can CONNECT also make seamless service requests, get real time updates, manage your assets and intuitively order parts for all brands direct from the site. - Page 11 © 2019 CORE HEALTH & FITNESS, LLC PART NUMBER 620-8733, REV A...
