International Thermal Research Hurricane Chinook Heating System Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Section
1
Overview
®
Thank you for purchasing the Hurricane
Chinook Heating System.
®
The Hurricane
Chinook Heating System has been designed
to meet ABYC standards for installation in yachts
This section covers critical information you need to know before
beginning the installation including how to protect your Warranty,
and tools and equipment needed.
®

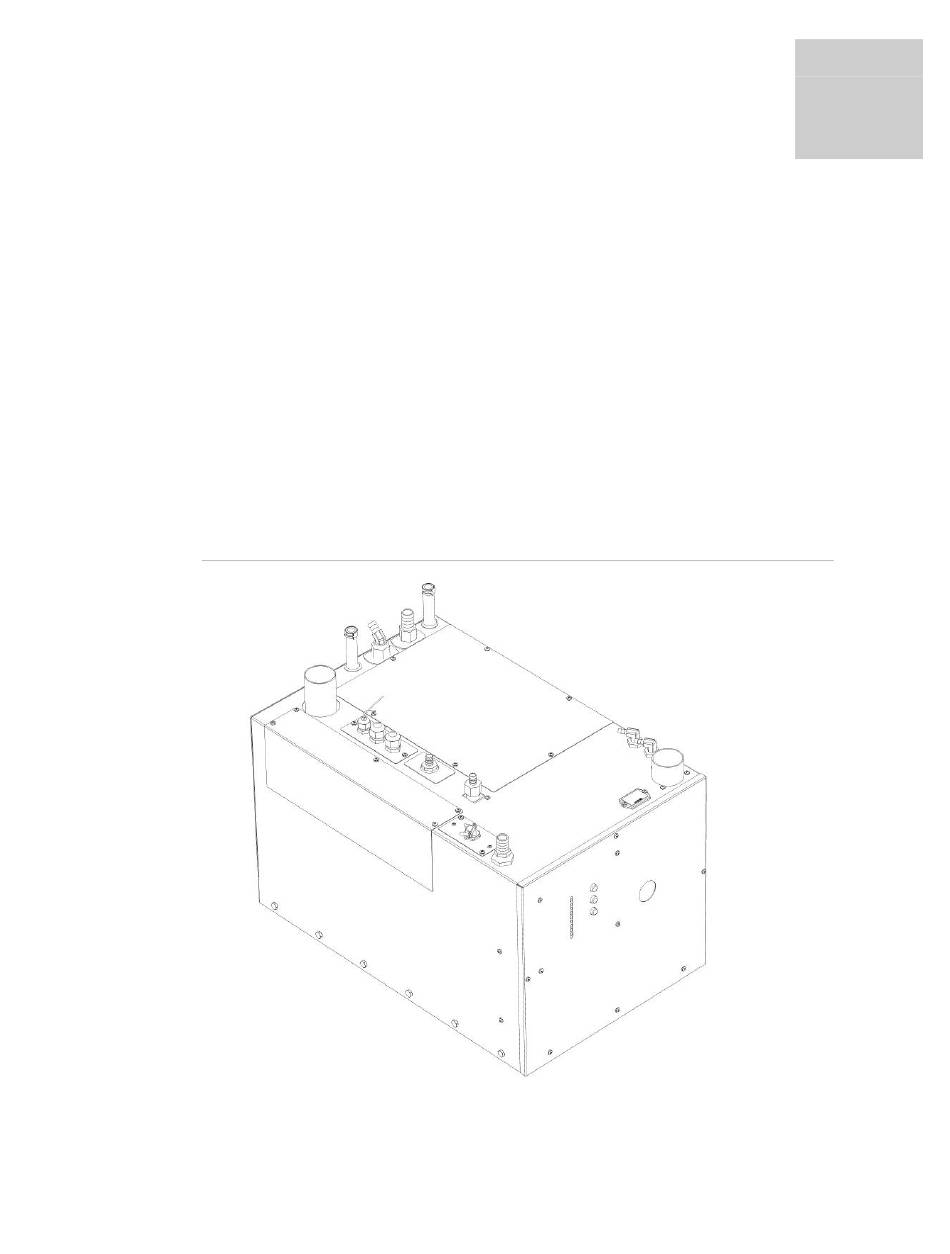

Figure 1-1: Hurricane
Chinook heating system
International Thermal Research
1-1
