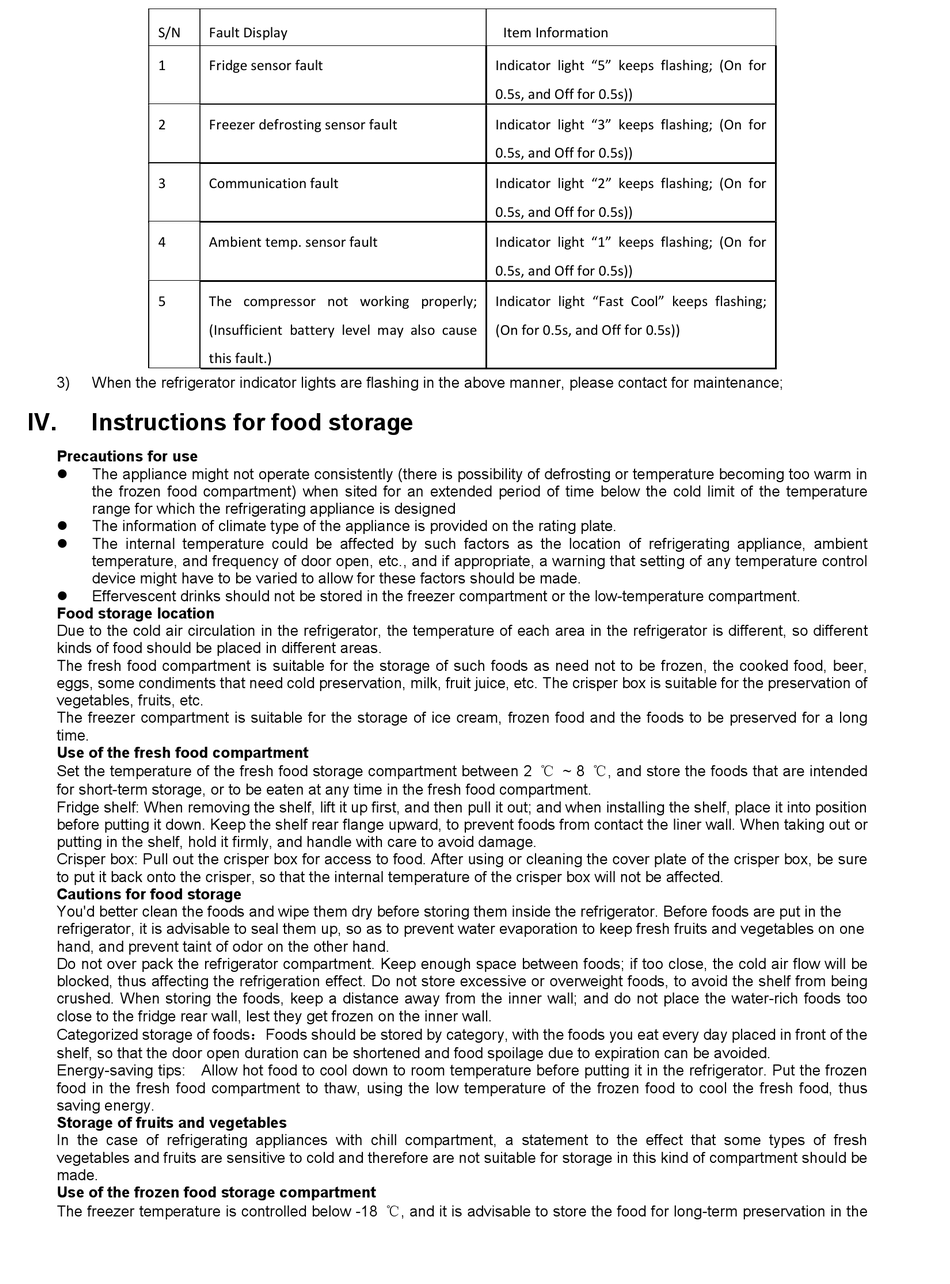

S/N
1
2
3
4
5
3)
When the refrigerator indicator lights are flashing in the above manner, please contact for maintenance;
IV.
Instructions for food storage
Precautions for use
The appliance might not operate consistently (there is possibility of defrosting or temperature becoming too warm in
the frozen food compartment) when sited for an extended period of time below the cold limit of the temperature
range for which the refrigerating appliance is designed
The information of climate type of the appliance is provided on the rating plate.
The internal temperature could be affected by such factors as the location of refrigerating appliance, ambient
temperature, and frequency of door open, etc., and if appropriate, a warning that setting of any temperature control
device might have to be varied to allow for these factors should be made.
Effervescent drinks should not be stored in the freezer compartment or the low-temperature compartment.
Food storage location
Due to the cold air circulation in the refrigerator, the temperature of each area in the refrigerator is different, so different
kinds of food should be placed in different areas.
The fresh food compartment is suitable for the storage of such foods as need not to be frozen, the cooked food, beer,
eggs, some condiments that need cold preservation, milk, fruit juice, etc. The crisper box is suitable for the preservation of
vegetables, fruits, etc.
The freezer compartment is suitable for the storage of ice cream, frozen food and the foods to be preserved for a long
time.
Use of the fresh food compartment
Set the temperature of the fresh food storage compartment between 2 ℃ ~ 8 ℃, and store the foods that are intended
for short-term storage, or to be eaten at any time in the fresh food compartment.
Fridge shelf: When removing the shelf, lift it up first, and then pull it out; and when installing the shelf, place it into position
before putting it down. Keep the shelf rear flange upward, to prevent foods from contact the liner wall. When taking out or
putting in the shelf, hold it firmly, and handle with care to avoid damage.
Crisper box: Pull out the crisper box for access to food. After using or cleaning the cover plate of the crisper box, be sure
to put it back onto the crisper, so that the internal temperature of the crisper box will not be affected.
Cautions for food storage
You'd better clean the foods and wipe them dry before storing them inside the refrigerator. Before foods are put in the
refrigerator, it is advisable to seal them up, so as to prevent water evaporation to keep fresh fruits and vegetables on one
hand, and prevent taint of odor on the other hand.
Do not over pack the refrigerator compartment. Keep enough space between foods; if too close, the cold air flow will be
blocked, thus affecting the refrigeration effect. Do not store excessive or overweight foods, to avoid the shelf from being
crushed. When storing the foods, keep a distance away from the inner wall; and do not place the water-rich foods too
close to the fridge rear wall, lest they get frozen on the inner wall.
Categorized storage of foods：Foods should be stored by category, with the foods you eat every day placed in front of the
shelf, so that the door open duration can be shortened and food spoilage due to expiration can be avoided.
Energy-saving tips: Allow hot food to cool down to room temperature before putting it in the refrigerator. Put the frozen
food in the fresh food compartment to thaw, using the low temperature of the frozen food to cool the fresh food, thus
saving energy.
Storage of fruits and vegetables
In the case of refrigerating appliances with chill compartment, a statement to the effect that some types of fresh
vegetables and fruits are sensitive to cold and therefore are not suitable for storage in this kind of compartment should be
made.
Use of the frozen food storage compartment
The freezer temperature is controlled below -18 ℃, and it is advisable to store the food for long-term preservation in the
Fault Display
Fridge sensor fault
Freezer defrosting sensor fault
Communication fault
Ambient temp. sensor fault
The compressor not working properly;
(Insufficient battery level may also cause
this fault.)
Item Information
Indicator light "5" keeps flashing; (On for
0.5s, and Off for 0.5s))
Indicator light "3" keeps flashing; (On for
0.5s, and Off for 0.5s))
Indicator light "2" keeps flashing; (On for
0.5s, and Off for 0.5s))
Indicator light "1" keeps flashing; (On for
0.5s, and Off for 0.5s))
Indicator light "Fast Cool" keeps flashing;
(On for 0.5s, and Off for 0.5s))
