Summary of Contents for Waves BSS DPR-402

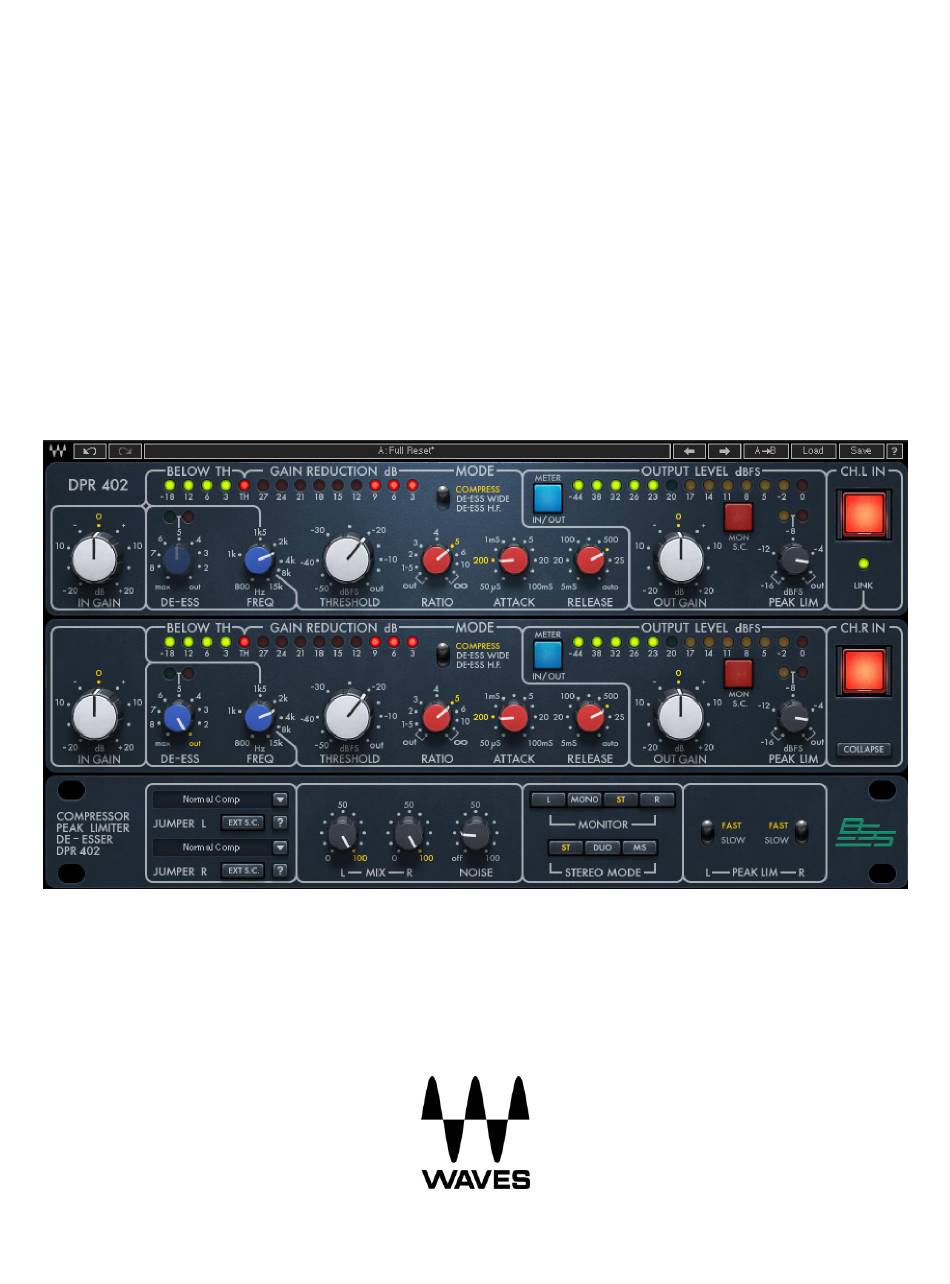

- Page 1 WAVES ® DPR-402 COMPRESSOR / PEAK LIMITER / DE-ESSER USER GUIDE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Chapter 1 – Introduction ....................... 3 1.1 Welcome ............................3 1.2 About BSS DPR-402 .......................... 3 1.3 The Original Hardware ........................3 1.4 Features Added to the Plugin ......................4 1.5 Components ............................. 5 Chapter 2 – Interface and Controls ..................6 2.1 Interface ............................ -
Page 3: Chapter 1 - Introduction
Chapter 1 – Introduction 1.1 Welcome Thank you for choosing Waves! In order to get the most out of your new Waves plugin, please take a moment to read this user guide. To install software and manage your licenses, you need to have a free Waves account. Sign up at www.waves.com. -
Page 4: Features Added To The Plugin
This can yield less dynamic distortion for an equivalent amount of compression. 1.4 Features Added to the Plugin In addition to modeling the above features of the original hardware, Waves has added five features to the plugin for extra flexibility, control, and ease of use: INPUT GAIN CONTROL... -
Page 5: Components
1.5 Components WaveShell technology enables Waves processors to be split into smaller plugins, which we call components. A choice of different components for a particular processor allows you to choose the configuration best suited to your material. Waves BSS DPR-402 includes the following components: ... -
Page 6: Chapter 2 - Interface And Controls
Chapter 2 – Interface and Controls 2.1 Interface Waves BSS DPR-402 User Guide... -
Page 7: Controls
2. Green – Shows that gain reduction is active, even at low values such as below 1 dB. 3. Orange – approximately 15 dB of Gain Reduction THRESHOLD Determines the level above which dynamic processes occur. Range: Out (0.0 dB) to -50 dB in 0.1-dB increments. Default: Out Reset: Out Waves BSS DPR-402 User Guide... - Page 8 Determines the release time of the compression, expansion or de-essing, depending on the selected Mode and Jumper settings. Range: 5 ms to 4 sec., or Auto for program-dependent Attack and Release times. The ATTACK control is inactive in this mode. Default: 100 ms Reset: 5 ms Waves BSS DPR-402 User Guide...
- Page 9 Lets you monitor the sidechain signal that triggers the VCA dynamic process. Range: On/Off Default: Off Reset: Off Input/Output Level Meter Indicates the signal level at the plugin’s input or output, according to the state of the Meter In/Out button. Range: -44 dB to 0 dB Waves BSS DPR-402 User Guide...
- Page 10 Range: In (active) / Out (bypass) Default: In Reset: In LINK LED When illuminated green, this LED indicates that the two channels are linked together as a stereo pair. Waves BSS DPR-402 User Guide...
- Page 11 COLLAPSE / EXPAND Exposes or hides the bottom panel of the BSS DPR-402 interface. When the plugin loads, the interface is “collapsed” and the button displays “Expand.” Range: Expand / Collapse Default: Collapsed Reset: Collapsed JUMPER SETTING L/R This drop-down menu provides a choice of 11 jumper settings modeled from the original BSS DPR-402 hardware unit.
- Page 12 When you automate L and R to different values in Duo mode, you will need to delete your settings for one of the channels (L or R) before you return to Stereo mode in order to avoid conflicting values. Waves BSS DPR-402 User Guide...
-
Page 13: Chapter 3 - Suggested Settings For Initial Setups
Chapter 3 – Suggested Settings for Initial Setups The original BSS DPR-402 had no such thing as a “standard setup”; some settings, however, provided a good starting point for certain uses. The original unit, as well as the plugin, has four basic modes of operation. -
Page 14: Essing
Usually this produces a natural-sounding compression, but it can also result in compressing parts of the signal that are below the set frequency. In this mode, the de-esser’s ratio, attack and release are pre-determined. Waves BSS DPR-402 User Guide... -
Page 15: Essing Wide With Full Dynamic Control
SC switch. This replaces the normal signal at the output connector with the output of the de-ess filter and aids in setting the FREQ control in relation to the audible sibilance. If desired, the peak limiter can be used simultaneously with wideband de-essing. Waves BSS DPR-402 User Guide... -
Page 16: Essing Hf With Full Dynamic Control
SC switch. This replaces the normal signal at the output connector with the output of the de-ess filter and aids in setting the FREQ control in relation to the audible sibilance. The peak limiter should NOT be used in the HF mode. Waves BSS DPR-402 User Guide... -
Page 17: Essing Wide With Simultaneous Compression
2. If this produces an unwanted decrease in overall output level, then the amount of compression should be increased either by reducing the compressor threshold, or by increasing the compressor ratio and then reestablishing the gain. Waves BSS DPR-402 User Guide... -
Page 18: Additional Jumper Settings
DE-ESSER should not be used in this mode. When input signals exceed the set threshold, expansion occurs. Normally, the Expander Wide DE-ESSER should not be used in this De-ESS mode. The PEAK LIMITER may be used for effect. Waves BSS DPR-402 User Guide... -
Page 19: Wavesystem Toolbar
Use the bar at the top of the plugin to save and load presets, compare settings, undo and redo steps, and resize the plugin. To learn more, click the icon at the upper-right corner of the window and open the WaveSystem Guide. Waves BSS DPR-402 User Guide...
