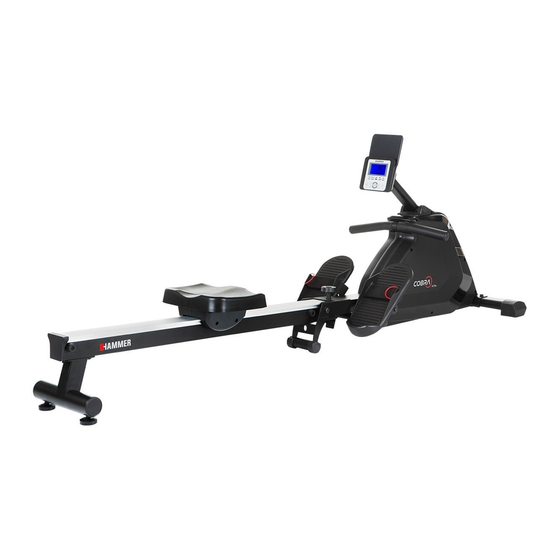

Uživatelský návod COBRA XTR PLUS ART.NR. / ITEM NO. 4532 I D: 01072020 PREMIUM QUALITY GERMAN BRAND...
Page 2
Index Obsah Safety instructions Bezpečnostní instrukce Obecně General 2.1 Balení Packaging 2.2 Odpady Disposal Assembly Montáž 3.1 Montážní kroky Assembly Steps Care and Maintenance Péče a údržba Počítač Computer 5.1 Funkce počítače Computer functions 5.2 Tlačítka Buttons 5.3 Použití počítače Operation 5.4 Měření...
1. Safety instructions 1. Bezpečnostní instrukce IMPORTANT! Důležité! Tento trenažér je vyroben dle směrnice EN ISO 20957-1/7, třídy HC The rower is produced according to EN ISO 20957- Max. zátěž 130 kg. 1/7 class HC, and cannot be used for physical exer- ...
Page 4
2. General 2. Obecně This training equipment is for use at home. The Oblastí použití tohoto tréninkového stroje je equipment complies with the requirements of EN ISO domácnost. Přístroj odpovídá požadavkům EN ISO 20957-1/7 Class HC. The CE marking refers to the EU 20957-1/7 třídy HC podle evropské...
Page 5
3. Montáž 3. Assembly In order to make assembly of the rower as easy as pos- Abychom Vám sestavení přístroje co nejvíce ulehčili, sible for you, we have preassembled the most important jsou důležité díly již předmontované. Před montáží parts. Before you assemble the equipment, please read přístroje byste si měli pečlivě...
4. Maintenance 4. Péče a údržba Maintenance: Údržba • Přístroj v podstatě nepotřebuje žádnou údržbu. In principle, the equipment does not require • Pravidelně kontrolujte všechny části přístroje a maintenance. pevnost všech šroubů a spojů. Regularly inspect all parts of the equipment and •...
Page 13
5.1 BUTTONS: 5.1 Tlačítka: 1. ENTER 1. ENTER - You can select and confirm the target values or the selected - Vybírá a potvrzuje hodnoty nebo programy program. 2. UP/DOWN nahoru/dolů tlačítka 2. UP/DOWNButtons: - Pomocí +/- tlačítka můžete vybrat program nebo změnit - By pressing the +/- buttons you can select the program or zátěž...
Page 14
5.3 OPERATION 5.3 Použití počítače 1.Turn on the computer 1.Zapněte počítač Plug in one end of the adaptor to the AC electrical source and connect Zapojte jeden konec elektrického přívodního kabelu do otvoru the other end to the rower. The computer will beep and enter into initial na trenažéru a druhý...
Page 15
2.3 Heartrate programs 2.3 Program s měřením srdečního pulsu Program P16 - P19 Program P16 - P19 A chest belt is needed! Pro měření pulsu je třeba použití hrudního pásu! Hrudní pás není součástí trenažéru. pro zakoupení pásu kontaktujte svého You have the option to select 55% (regeneration), 75% (fat prodejce.
2.5 How to use target heartrate P19. 2.5 Jak používat program s cílovou hodnotou pulsu P19. After you have selected this program with UP/DOWN button Vyberte požadovaný program UP/DOWN a potvrďte stiskem press ENTER. ENTER. Time is lighting. With the UP/DOWN -buttons, the exercise time can Nastavte čas TIME, pomocí...
Page 19
8. Kusovník 8. Parts list Číslo Popis Description Rozměr\/Dimension Ks/Quantity 4532-1 Computer Computer TZ 8128 Computer Halterung Computer holder Innensechskantschraube Bolt M8x90 Unterlegscheibe Washer Ø8x20x2 Mutter, selbsichernd Safety nut Schraube Crosshead screw Unterlegscheibe Washer Kabel unten Lower cable Netzgerät Adapter Kunststoffkappe End cap Standfuß...
Page 20
Číslo Popis/Description Rozměr\/Dimension Ks/Quantity Kabel Trunk wire Gehäuse links Housing left Gehäuse rechts Housing right Schraube Screw ST4.2x16 Schraube Screw ST4.8x16 -72* Motor Motor Schraube Screw ST4.2X16 Widerstandsverstellkabel Resistanccable Schwungrad Flywheel Mutter Mutter -78* Antriebsriemen Belt -79* Rolle Pulley Schraube Screw M10x112 Hülse...
Page 21
9. Záruka / Warranty Dovozce: FITNESS STORE s.r.o. Marešova 643/6 198 00 Praha 9 Tel.: +420 581 601 521 E-mail: fitnestore@fitnestore.cz Výrobce: Hammer Sport AG, Von Liebig Str. 21, 89231 Neu-Ulm www.hammerer.de...
