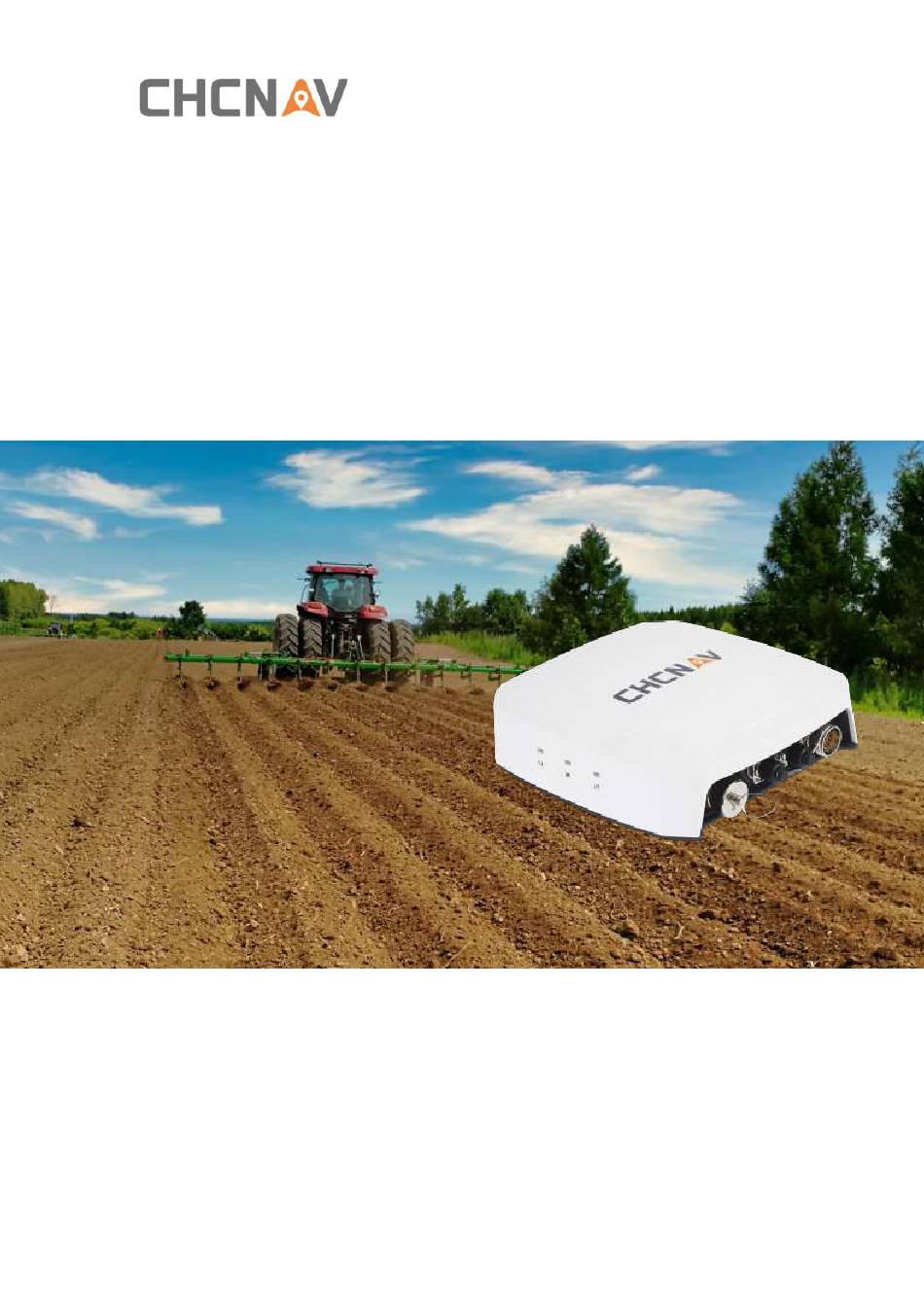

- Page 1 CHCNAV NX510 Pro User Guide Revision 1.0 June 01, 201 Precision Agriculture | August 2021 Make your work more efficient...
-
Page 2: Table Of Contents
3.3. Line to Zero ......................33 3.4. Transfer line calculation ..................34 3.5. Camera function ....................35 3.6. Guideline share ....................35 4. Equipment Maintenance ..................38 CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 2... -
Page 3: Preface
CE Interference Statement Declaration of Conformity: Hereby, Shanghai Huace Navigation Technology Ltd. declares that this NX510 Pro is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. A copy of the Declaration of conformity can be obtained from Shanghai Huace Navigation Technology Ltd. -
Page 4: Notices
Please use it strictly in accordance with the user manual and prohibit changing the software parameters arbitrarily. ▪ CHCNAV declines any responsibility for damage caused by improper use or any use other than those described in this instruction manual. CHCNAV NX510 PRO USER MANUAL... -
Page 5: Introduction

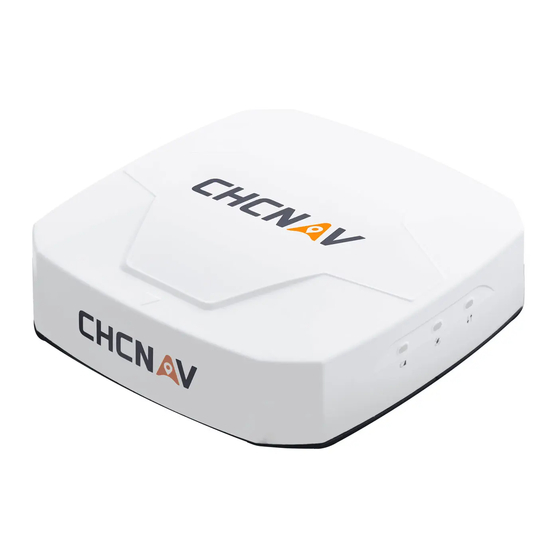

Introduction 1. Introduction 1.1.Main components Device name Image PA-3 Receiver Console Electrical Steering Wheel GA-Sensor Angle sensor Rear Camera CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 5... -
Page 6: Software Interface
The current number of lines where the tractor is located (the original line is 0); Real-time speed; Operating area (default unit is mu, adjustable); Shut down button; 10. Help, including one-click help, alignment guidance, center offset guidance, plow width guidance; CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 6... - Page 7 C: Enter the travel distance of the line (unit: cm) D: Line to zero 20. Quickly adjust the entry and travel parameters; 21. Working track coverage; 22. Manual / automatic status display and switching CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 7...
-
Page 8: Getting Started
Image Description Turn on the red power button above the monitor and the button will turn green. 2.2. Change software language Get into [Setting]-[System setup]-[Basic Setting]-[Language Selection] CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 8... -
Page 9: Register The Rtk Mode Get Into [Setting]-[Gnss-Setting]
Blue LED: indicates the number of tracked satellites; if it tracks N satellites, the blue LED will flash N times every 5 seconds. Red light: indicates the RTK status. Red indicates RTK Fixed. CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 9... - Page 10 If you are using the radio mode, Y is the current channel. If you are using network mode, Y will change to “NET”; C: Positioning accuracy. CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 10...
-
Page 11: Receiver Settings
2.5.1. Built-in radio (using radio base station) Click the signal display icon in the upper left corner. Click [ ] of Operation mode, select the built-in radio mode. CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 11... - Page 12 Three signal icons in the upper left corner are grey and non-zero, indicating that the RTK signal is available. CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 12...
-
Page 13: Multi-Network Mode (Use A Network Base Station)
SIM card (two in dual-network mode), and one SIM card can be inserted into the PA-3receiver and the other can be inserted into the display. Step 1: Click [ ] of operation mode to select the Multi-Network mode. CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 13... - Page 14 The base station name: chc (in default) Protocol: CORS (in default) Input the IP, port, username and password you have, click [Save]. Click [Download] in the source list and select RTCM3.2 format. CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 14...
- Page 15 ] corner to return to the main interface. The main interface shows that the three signal icons in the upper left corner are gray and non-zero, indicating that the RTK signal is normally available; CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 15...
-
Page 16: Implement Settings
Center offset (D): The abnormal line spacing due to the misalignment of the plough, it could be adjusted automatically based on the inputted value (see 4.2 Handover Line Calculation for specific operations). CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 16... -
Page 17: Quick Line Setting
Manually drive to the other side of the alignment, stop and set it as point B. During this process, please keep the agricultural tools lifted up. After the point B is set, the navigation line is automatically saved. CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 17... -
Page 18: Other Alignments
Getting Started 2.8. Other alignments This software can also set other types of guideline. ① Click [Settings]-[Guide Line Settings] CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 18... - Page 19 Getting Started ② Click [Add]. ③ Select the type of navigation line, input the name, and click [CREATE] to enter the alignment step. CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 19...
-
Page 20: Auto Pilot
Getting Started 2.9. Auto Pilot indicates manual mode; indicates auto pilot mode. Click this button to switch between the two modes. Manual mode Auto pilot mode CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 20... -
Page 21: Power Off
Controller power off Slide the red latch downward and press the switch to power off. Note: The direction of slide will change with the direction of controller mounting. CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 21... - Page 22 Getting Started Turn the steering wheel switch to "○" to turn off the steering wheel, the green led will turn off. CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 22...
-
Page 23: Common Functions
86.5cm, then you only need to enter 3.5cm to the right.lateral deviation will be changed automatically. At this time, just start the operation by auto-driving CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 23... -
Page 24: Help Function
] to enter the [Help]. A. Heading Reversed When the guideline swings when the outgoing vehicle stops, you can try to use this function to restore the course. CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 24... - Page 25 Step 1: Click [Make Line] in [Help] to turn on the AB line alignment guide. Step 2: After clicking [Make Line], the [Line] button will be highlighted on the right, and other functions are blocked. CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 25...
- Page 26 Step 4: Manually drive to the other side of the alignment. Set the point B after the tractor stops. During this process, please keep the agricultural tools lifted up. After point B is confirmed, click [Save]. CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 26...
- Page 27 Users can complete the self-adjustment of the transfer lines through the calculation guide of the transfer lines. Step 1: Click [Set Center Offset] in the [Help] function CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 27...
- Page 28 Common Functions Step 2: Click [IMP]. Step 3: Click the function of [AUTOMATIC CALCULATION]. CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 28...
- Page 29 Common Functions Select the scene based on the real situation. CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 29...
- Page 30 This function is used to modify the width after changing the farm implement. Step 1: Click [Set Plow With] in the [Help] function to enter the [Implement Management] interface. CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 30...
- Page 31 Step 2: Modify the width of agricultural implements and line spacing on [Implement width] and [Line Spacing] to. Step 3: Click [OK] after modification. E. Remote assistant Click [Remote assistant] and start to download the app CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 31...
- Page 32 Common Functions After click the [Start Now], You can provide the ID to our technical support. CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 32...
-
Page 33: Line To Zero
Click [Shift], then click [Reset] to reset the AB line to zero, that is, to shift the AB line to the current position of the tractor. Please make sure the tractor is facing parallelly with line AB while performing the line to zero. CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 33... -
Page 34: Transfer Line Calculation
Click OK and then the software will calculate the transfer line. Operation method: please refer to chapter 4.1 c. Transfer Line Calculation Guide for details CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 34... -
Page 35: Camera Function
3.6. Guideline share If both of the tablet is online, they can share the guideline remotely. First, choose the guideline you want to share, then click[ ]-[Export]-[Share] CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 35... - Page 36 If you want to share Trimble or Topcon’s guideline to your tablet. You can copy the guideline with USB fresh disk, then click[Import]-[Import Topcon data.]/[Import trimble line]to get the guideline you want. CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 36...
- Page 37 Common Functions CHCNAV NX510 PRO USER MANUAL | 2021-08 P a g e | 37...
-
Page 38: Equipment Maintenance
◼ Please do not disassemble the main components of the system. If necessary, please contact the CHCNAV after-sales service support@chcnav.com. ◼ Please use device under the instruction of user guide. ◼... - Page 39 CHC Navigation Building D, NO. 599 Gaojing Road, Qingpu District, 201702 Shanghai, China Tel: +86 21 542 60 273 | Fax: +86 21 649 50 963 Email: sales@chcnav.com | support@chcnav.com Skype: chc_support Website: www.chcnav.com Make your work more efficient...
