Summary of Contents for Express Water 300GPD

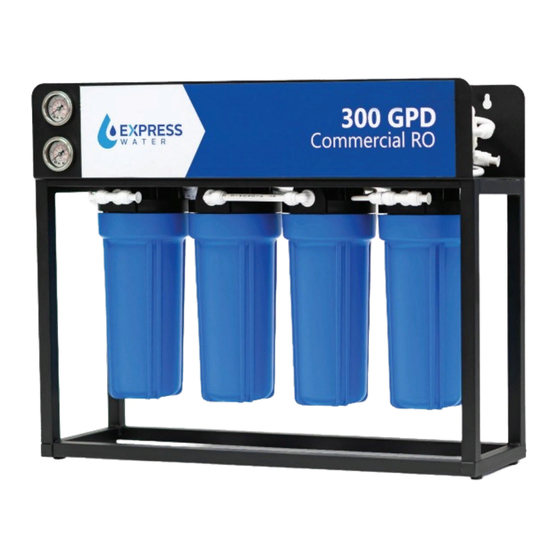

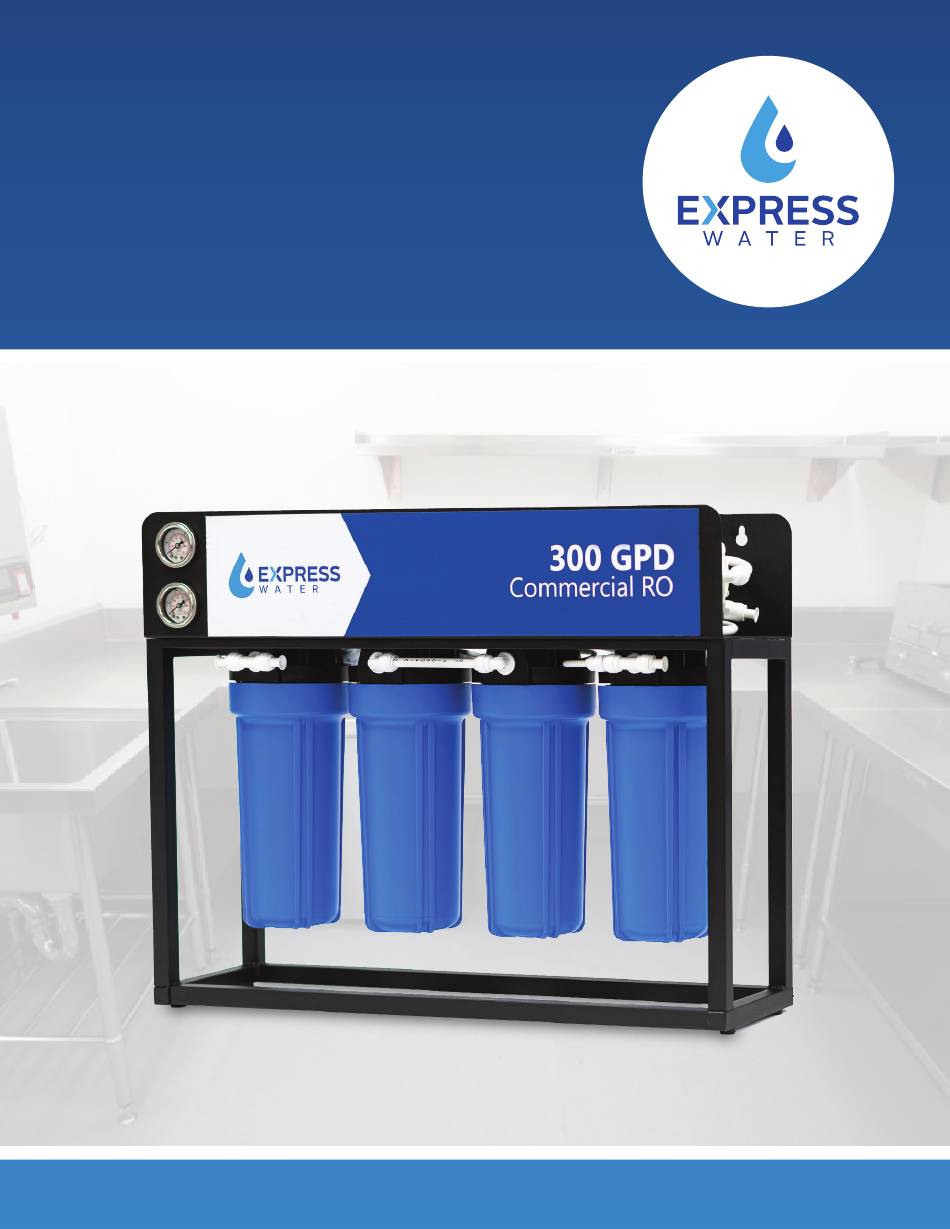

- Page 1 Light Commercial Reverse Osmosis System Installation Manual...
- Page 2 Overall System Connections Hello! You’ve taken the first step to having healthier and better from now on thanks to Express Water’s Light Commercial Reverse Osmosis Water Filtration System. Your new filtration system protects you and any appliances from contaminants with hundreds of gallons of perfectly pure water every day.
- Page 3 Always use proper replacement filter cartridges with the correct size and length replacements. Replace the Teflon Tape on all threaded connections and fittings. Copyright © 2020 by Express Water Inc. All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any...
-
Page 4: Table Of Contents
Table of Contents Introduction Page 5 Installation Notes Page 6 Components List Page 6 System Components Page 7 System Guide Page 8 Tubing Quick Connect Guide Page 9 Installation Feed Water Adapter Valve Page 10 Drain Saddle Page 12 Filter Housing Assembly Page 13 Water Storage Tank Page 14... -
Page 5: Introduction
Simply read through the manual and complete the steps in order and you’ll have your system up and running in no time. If you find any issues or have questions please contact Express Water from 10am to 5pm (Pacific Time) at: 1-800-992-8876 Monday - Friday Visit ExpressWater.com for filter replacements. -
Page 6: Installation Notes
• Power Drill • Teflon Tape Components List Your new Elite RO should include the following items. If any item is missing please contact Express Water. Please take a few moments to check all the following components: Accessories and Connections 19ft of 3/8”... -
Page 7: System Components
System Components 1. Feed Water Adapter Valve 8. Low Pressure Switch 15. Check Valve (3/8”) 2. Solenoid 9. Flow Splitter (3/8”) 16. High Pressure Switch 3. Stage 1 Sediment Filter 10. Adapter (3/8” to 1/4” QC) 17. Flow Restrictor 4. Stage 2 Carbon Block Filter 11. -
Page 8: System Guide
System Guide Untreated Water Inflow This is where your untreated or “tap” water enters the system. The water then proceeds through the five stages of filtration. Working Pressure Gauge This will show the pressure at which your Booster Pump is operating. Incoming Pressure Gauge This will show the pressure of your incoming water. -
Page 9: Tubing Quick Connect Guide
Tubing Quick Connect Guide The tubing in your RO System uses a Plug Quick Connect locking mechanism to lock the Color Coded Tubing in place. Be Collet careful not to damage your tubing as you unpack it. NOTE! Make sure to remove any Fitting plugs before attempting to insert tubing. -
Page 10: Feed Water Adapter Valve
Feed Water Adapter Valve CAUTION! The water supply to the unit MUST be from the COLD WATER LINE. Using HOT WATER will severely damage your RO System. 1. First you will assemble the feed water adapter. Wrap the threading of the smaller portion of the adapter (with the red handle) with 10-14 wraps of teflon tape. - Page 11 3. The Feed Water Adapter Valve can be used 1/2” feed line plumbing. If your feed line is another size you will need an adapter for setup. 1/2” Connection Next, use an adjustable wrench to secure the Adapter Valve either directly to the Cold Water Valve Option A or further up in the line before the faucet Option B (if applicable).
-
Page 12: Drain Saddle
Drain Saddle The Drain Saddle is used to connect the Drain Line to a drain pipe under the sink, or other drain plumbing. The Drain Saddle is designed to fit around a standard 1.5 inch OD (outer diameter) drain pipe. NOTE! Adjustable drain saddles are available upon request if the saddle does not fit your pipe. -
Page 13: Filter Housing Assembly
Filter Housing Assembly Housing O-Ring Filter Housing Filter NOTE! The Sediment Filter will be on the far right The 3 Carbon Block Filters will be on the opposite side. Tighten Filter Housings The housings may need little or no tightening. You can expect to make a quarter turn at most. The majority of systems will need no tightening. -
Page 14: Water Storage Tank
Water Storage Tank If you are using a water storage tank with this system you will connect it here. If not you can skip this page. 1. Identify the stem tee on the inflow side of the PAC filter and remove the plug from the quick connect arm of the tee. -
Page 15: System Connections
System Connections You may have already completed some or all of these connections in previous steps. Make sure to remove any plugs before installing Tubing. Use the provided Locking Clips to secure any Tubing connections. Lock Nut A to B Connect the 3/8” tubing to the Feed Water Adapter Valve (point A), remove plug then connect to the open inlet of the branch tee on the sediment filter (point B). -
Page 16: System Startup
System Startup NOTE! Do not drink water from your new system until you have completed System Startup. The flushing process is needed for your filters to begin working. NOTE! Do not send water through any appliance until flushing is complete, carbon fines flushed during startup will clog appliances. -
Page 17: Filter Change Instruction
This Commercial RO System contains Filters that must be replaced at regular intervals to maintain proper performance. Use only authentic Express Water filters. How to Change the SED and 2 ACB’s (Prefilters) (Recommended about every 6 months, depending on water use) 1. -
Page 18: How To Sanitize Your Ro Drinking Water System
Restarting The System 1. Fully open the Feed Water Adapter Valve, Cold Water Supply, and the Tank Valve [if you are using a tank]. [If not using a tank simply let pure water flow for 15 minutes] [SKIP 2-5 IF NOT USING A TANK] 2. -
Page 19: Faq
FAQ’s Do you need a tank? No, you can directly use water as the Commercial RO system produces it, however, for immediacy you may wish to use a tank as this will increase your supply of instantly available water. Does this system filter Fluoride, Lead, Pharmaceuticals, and Arsenic? Yes, as well as Cyanide, Phosphate, Pesticides, Sodium, Cadmium, Sulfates, and many other contaminants up to certain levels. - Page 20 Vacation Mode When you plan to not use your Commercial RO System for 2 weeks to 1 month it should be Turned Off. Locate the red Feed Water Adapter Valve connected to your Cold Water Supply (refer to page 10). Turn Off System: Turn the red Feed Water Adapter Valve to point away from the Tubing connection (in the Closed position, page 11) to close the water supply to the system.
-
Page 21: Warranty
Be sure to have a copy of your purchase confirmation email or receipt. Our support will verify that the product and problem are under warranty and help you arrange to send your defective part back to Express Water with your receipt and contact information (name, address, phone number, email address). - Page 22 Notes Date...
- Page 23 Notes Date...
- Page 24 Express Water Inc. 12730 Raymer St, Unit 1, North Hollywood, CA 91605 1-800-992-8876 • support@expresswater.com • www.expresswater.com...
Need help?
Do you have a question about the 300GPD and is the answer not in the manual?
Questions and answers

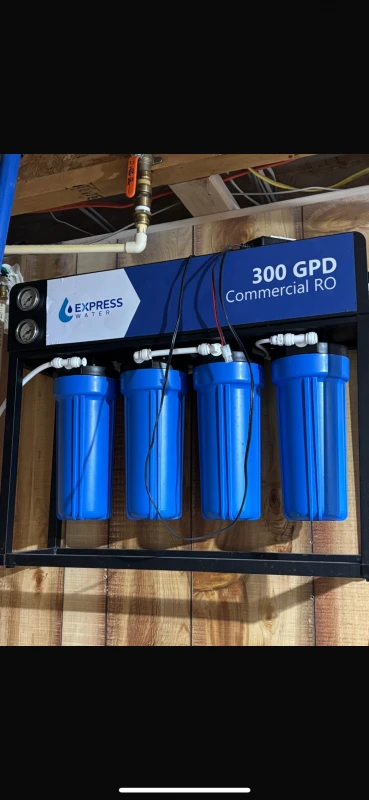

I have a 300 GPD Commercial RO system and it stop working, I replaced all the filters and it’s still not working. What can I do?
If your Express Water 300 GPD Commercial RO system has stopped working after replacing all the filters, follow these troubleshooting steps:
1. Check for leaks or moisture – Inspect the system carefully for any leaks or unexplained moisture.
2. Release trapped air – Gently tilt the system in different directions and then set it back in place to help release any trapped air.
3. Flush the system – Run the system for one hour or empty the water storage tank twice to remove any carbon residue from new or unused filters.
4. Check water pressure – Ensure the water pressure is within the system’s operating range (10–100 PSI). Use a pressure regulator if needed.
5. Verify the system is turned on – Make sure the red Feed Water Adapter Valve is turned on and supplying water to the system.
These steps address common issues related to filter replacement and system startup.
This answer is automatically generated
