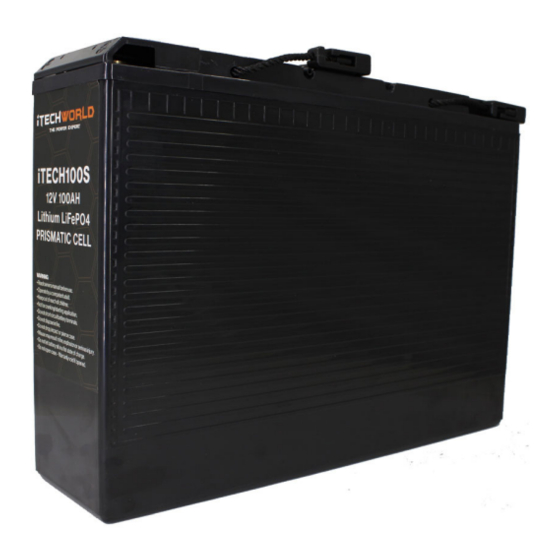

- Page 1 ITECH100S SLIMLINE 100 AH LITHIUM BATTERY User Guide...
-
Page 2: Key Features
USER GUIDE KEY FEATURES The iTECH100S is the pinnacle of slimline lithium battery design. The iTECH100S charges from almost every charging system making it perfect for use in boats, caravans, motor- homes, RVs, and more. Pre-installed Redback Operating System. Pre-installed Battery Management System. -
Page 3: Specifications
USER GUIDE SPECIFICATIONS Nominal Voltage: 12.8v C20 Rating usable amps 10v: 100Ah Short Circuit Protection: Yes Optimum Temperature Range: +5 to +60°C BMS Operational Temperature Range: -40 to 80°C Safety Protection Isolator: 80°C Recommended Charge Current: 10 - 50A Maximum Charge Current: 100A (5sec) Recommended Charge Voltage: 14.2 -14.6v BMS Charge Cut Off Voltage: 15.6v BMS Low Voltage Cut Off: 8v... - Page 4 ITECH100S SAFETY Please follow and understand these instructions before using the iTECH100S, failure to do so can cause the battery to fail. It is strictly prohibited to disassemble the iTECH100S battery. Inside the battery are electrolytes. These electrolytes can be skin and eye irritant.
-
Page 5: Do's And Don'ts
Exposure to sunlight can increase discharge rate of battery. If battery shows any shape change, colour change or any liquid seeping from battery stop using immediately and contact iTechworld. If the battery terminal screws are corroded, be careful not to bend the terminals when tightening or loosening. - Page 6 USER GUIDE WIRING When creating a bank of iTECH100S batteries, all the batteries must be of the same voltage. When drawing a load from the bank it should be split as follows: 2 battery bank Positive to battery number 1...
- Page 7 The iTECH100S has a sophisticated Battery Management System, Cell Balancing and the Redback Operating System pre-installed. This hardware allows the iTECH100S to be charged from almost all non-lithium charging profiles. For charging systems in which the parameters can be changed we suggest following our guidelines below to optimise the system.
-
Page 8: Discharge Curve
USER GUIDE DISCHARGE CURVE Please note that the iTECH100S discharge curve will be different from your previous lead-acid batteries. Please study the discharge curve provided below to give you a better understanding of how the iTECH100S will perform. iTECH100S... -
Page 9: Safe Mode
Australia. One such feature is "safe mode". If you draw too much power from your battery (over-discharge) your iTECH100S battery will enter safe mode to protect itself. The iTECH100S will enter safe mode at a voltage of 9v or less, the terminals have been shorted or too much current has been drawn. - Page 10 USER GUIDE JUMPER CABLE RESET METHOD Connect the red coloured jumper lead to the (+) positive terminal of the battery which has gone into safe mode and the other end of the red jumper lead to the (+) positive terminal of another 12V battery (this can be an AGM, Gel or lead acid as it is only a temporary connection).
- Page 11 USER GUIDE JUMPER CABLE RESET METHOD 2. Connect the black jumper lead to the (-) negative terminal of the charged battery and the other end of the black jumper lead to the (-) negative terminal of the flat battery, take care as some sparking may occur.
- Page 12 USER GUIDE ITECH2000A JUMPSTARTER RESET METHOD Use an iTECH2000A jump starter by following the steps below. You can purchase our iTECH2000A jump starter here: https://bit.ly/itech2000a Connect the jump starter clamps into the iTECH2000A jump starter, then locate the jump start button on the clamps and press and hold the button until the countdown timer is initiated.
- Page 13 USER GUIDE ITECH2000A JUMPSTARTER RESET METHOD 2. Within the 60-second countdown, connect the positive clamp to the positive terminal of the battery then followed by the negative clamp to the negative terminal, take care as some sparking may occur. Leave the jump starter connected until the countdown timer ends.
- Page 14 USER GUIDE ITECHWORLD BATTERY CHARGER The battery can also be reset with our battery charger by following the steps below. Connect the charger positive battery clamp to the battery positive terminal and the negative battery clamp to the negative terminal, then turn on the battery charger. The battery charger...
- Page 15 USER GUIDE ITECHWORLD BATTERY CHARGER 2. With the charger still powered on, remove the negative battery clamp from the battery momentarily then reconnect it take care as some sparking may occur. The charger will now turn on and start charging.
- Page 16 Install the bypass switch connecting only the positive terminals of the iTECH100S battery and your main starting battery, or any other battery. Both batteries must share the same negative ground, the arrow indicated on the switch must point to the battery.
- Page 17 USER GUIDE STORING YOUR ITECH100S Long-time storage in a hot or wet environment will damage the battery. The battery should be stored in dry and ventilated environment. The ideal storage temperature is below 25℃ if stored this way, it will extend the battery life. If the storage temperature surpasses 40℃...
- Page 18 USER GUIDE TRANSPORTING THE ITECH100S The iTECH100S battery should always be carefully handled. Don't throw the battery and avoid squeezing it i.e do not pack heavy objects on top of the battery otherwise your battery casing will warp. The battery is robust and designed to handle off-road bumps.
-
Page 19: Warranty
“Tariff Adjustment Program” of any type. - Page 20 Batteries determined to meet the conditions of this warranty will be replaced free of charge if, at the sole discretion of iTechworld, adjustment is necessary due to a defect in material or workmanship. Batteries for warranty replacement consideration are to be returned to iTechworld, PO BOX 223 BURSWOOD WA 6100.
- Page 21 USER GUIDE WARRANTY The iTECH100S battery is not designed or warranted in the following areas: •The Battery is NOT to be used in any Aviation aircraft application. •The Battery is NOT to be used in any lifesaving applications. •The Battery is NOT to be exported.
- Page 22 USER GUIDE WARRANTY General Provisions: iTechworld has no obligation under the limited warranty herein in the event the battery is damaged or destroyed as a result of one or more of the following: •Wilful abuse, misuse, physical damage, neglect or if the decorative cover has been removed.
- Page 23 •Failure to install the battery correctly will void the warranty. •Repair or attempted repair of the battery by anyone other than an authorized iTechworld representative shall void this warranty. •Normal or accelerated deterioration in electrical qualities due to operating or application conditions.
- Page 24 30 days of the original purchase. Any defective unit that is returned to iTechworld within 30 days of the date of purchase will be replaced free of charge. If such a unit is returned more than 30 days but less than three years from the purchase date, iTechworld will repair the unit or replace it, free of charge.
- Page 25 USER GUIDE WARRANTY Limitations This warranty does not cover damage or defects resulting from normal wear and tear (including chips, scratches, abrasions, discolouration or fading due to usage or exposure to sunlight and water), accidents, damage during shipping to our service facility, alterations, unauthorized use or repair, neglect, misuse, abuse, failure to follow instructions for care and maintenance, acts of god, fire, flood and force majeure.
