Murata GRM0225C1E6R9CDAE Reference Sheet

Chip monolithic ceramic capacitor

Advertisement

Quick Links

Chip Monolithic Ceramic Capacitor for General

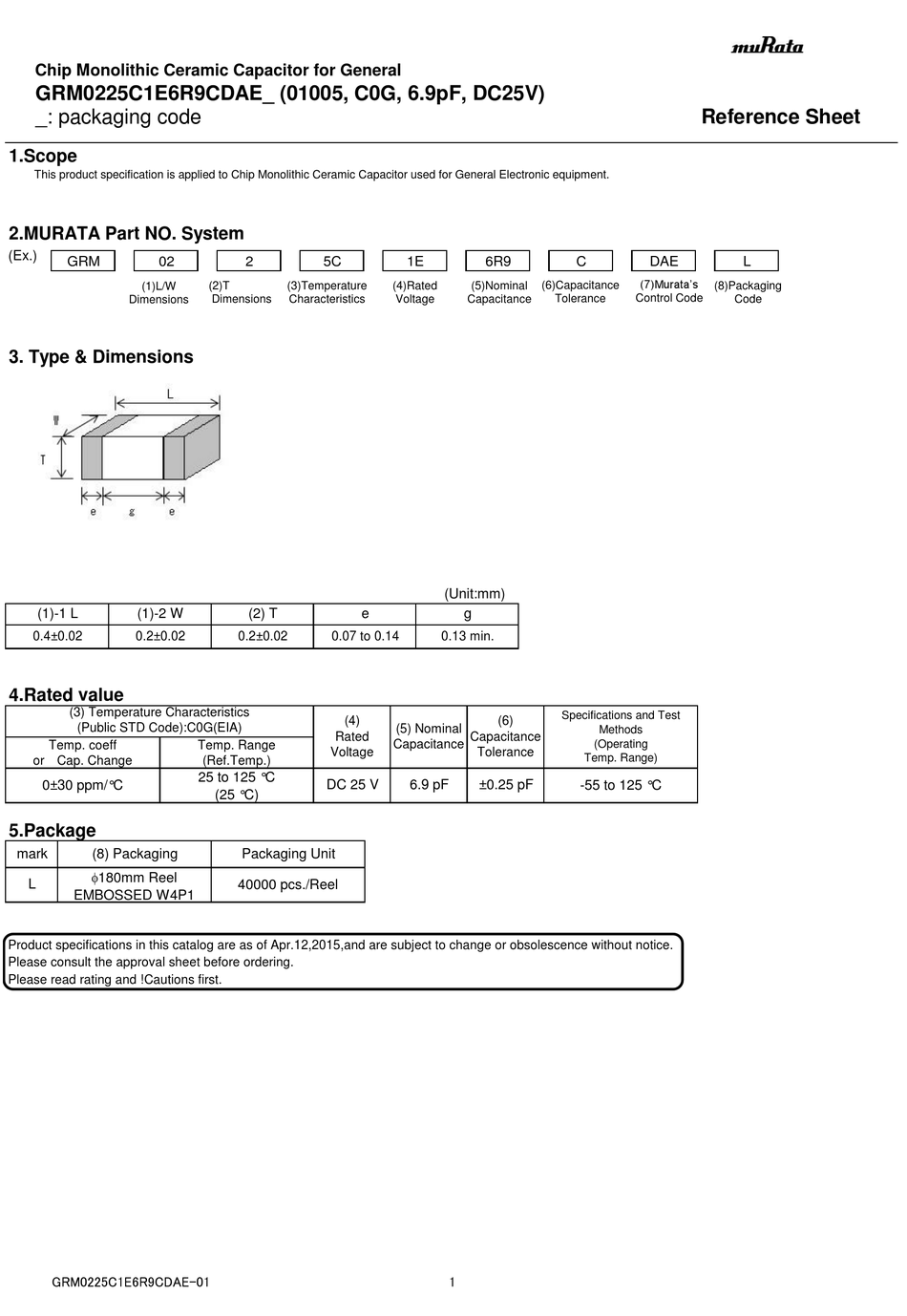

GRM0225C1E6R9CDAE_ (01005, C0G, 6.9pF, DC25V)
_: packaging code
1.Scope
This product specification is applied to Chip Monolithic Ceramic Capacitor used for General Electronic equipment.

2.MURATA Part NO. System
(Ex.)
GRM
02
(1)L/W
Dimensions
3. Type & Dimensions
(1)-1 L
(1)-2 W
0.4±0.02
0.2±0.02
4.Rated value
(3) Temperature Characteristics
(Public STD Code):C0G(EIA)
Temp. coeff
or Cap. Change
0±30 ppm/°C
5.Package
mark
(8) Packaging
f180mm Reel
L
EMBOSSED W4P1
Product specifications in this catalog are as of Apr.12,2015,and are subject to change or obsolescence without notice.
Please consult the approval sheet before ordering.
Please read rating and !Cautions first.
GRM0225C1E6R9CDAE-01
2
5C
(2)T
(3)Temperature
Dimensions
Characteristics
(2) T
e
0.2±0.02
0.07 to 0.14
(4)
Rated
Temp. Range
Voltage
(Ref.Temp.)
25 to 125 °C
DC 25 V
(25 °C)
Packaging Unit
40000 pcs./Reel
1E
6R9
(6)Capacitance
(4)Rated
(5)Nominal
Tolerance
Voltage
Capacitance
(Unit:mm)
g
0.13 min.
Specifications and Test
(6)
(5) Nominal
Capacitance
Capacitance
Tolerance
6.9 pF
±0.25 pF
1
Reference Sheet
C
DAE
L
(7)Murata's
(8)Packaging
Control Code
Code
Methods
(Operating
Temp. Range)
-55 to 125 °C

Advertisement

loading
Need help?

Need help?
