2. Product Overview

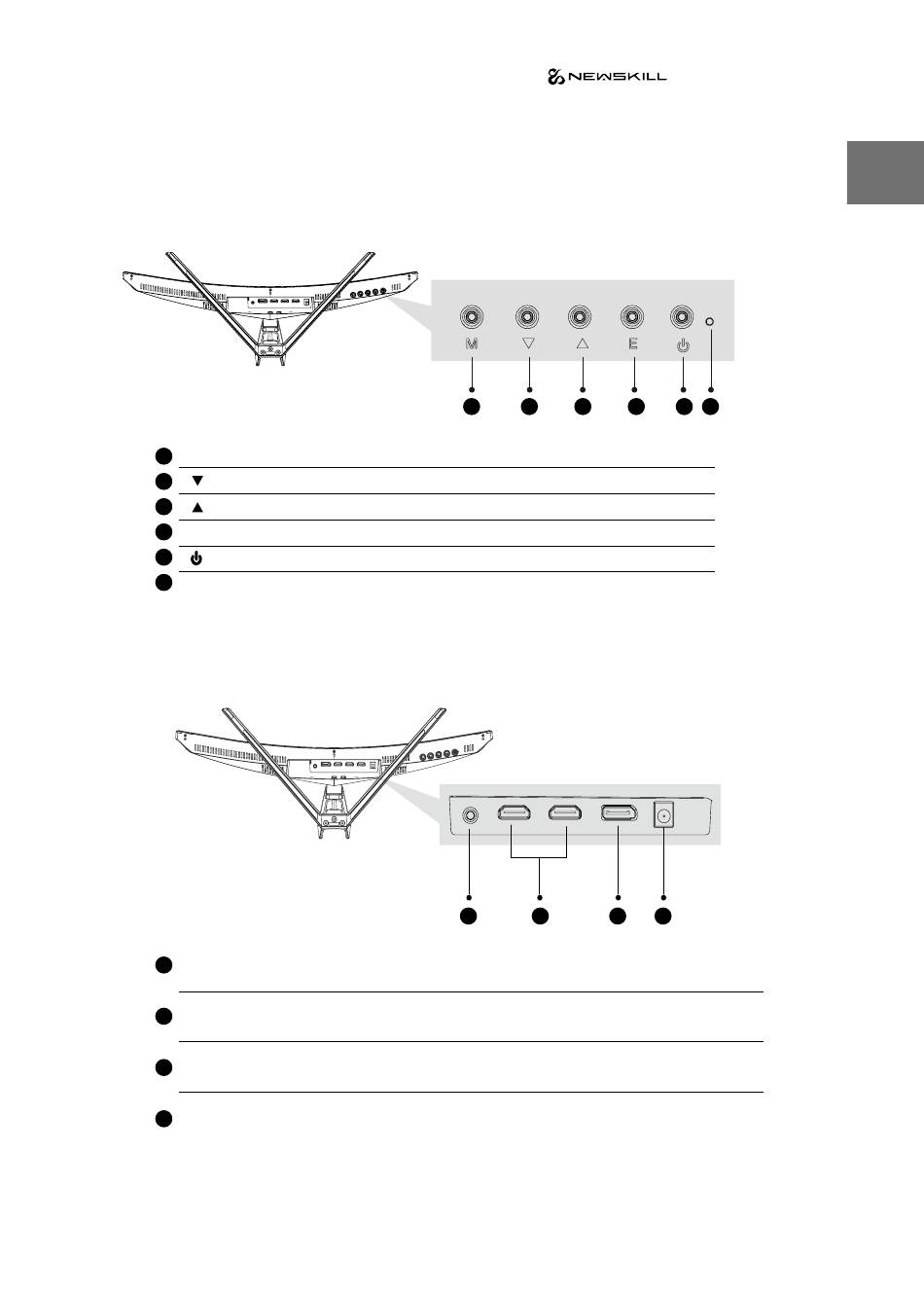

2.1 Monitor Buttons
M Menu Button
1
Down Button
2
3 Up Button
4
Exit Button
5
Power Button
6
LED Indicator
2.2 Monintor Ports
Connect the signal line to output interfaces signal of DP/HDMI signals of PC, and then connect the other end of
the signal line to the corresponding signal input port of the display.
7
Audio Output
8
HDMI Connectors
9 DP Connectors
Power Connector
10
1
Press to display the OSD menu or enter sub-menus.
Press to move down in the menus.
Press to move up in the menus.
Press to exit.
Press to turn the monitor on/off.
Changes colors to indicate status.
7
Insert one end of the Audio cable into the computer's Audio output to
recevie the Audio signals from your monitor.
Insert one end of the HDMI cable into the computer's HDMI output and
connect the other end to the monitor's HDMI port.
Insert one end of the DP cable into the computer's DP output and connect
the other end to the monitor's DP port.
Insert the power cable to supply power to the monitor.
