Summary of Contents for Newskill ICARUS 24

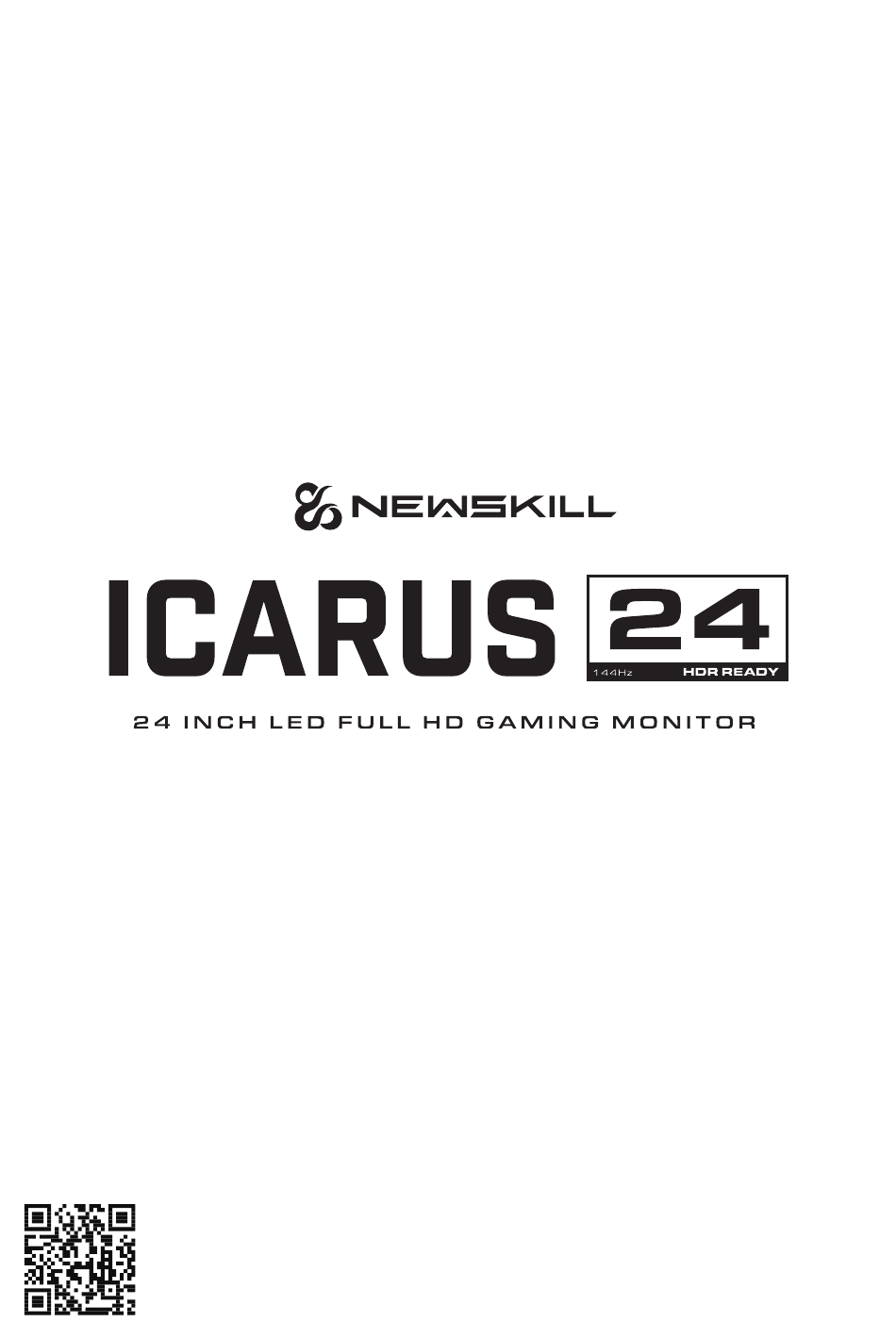

- Page 1 INSTRUCTION MANUAL Please read this manual thoroughly before use, and keep it handy for future reference. www.newskillgaming.com NS-MN-ICARUS24...
-
Page 3: Table Of Contents
CONTENTS 1. General information ......................1 1.1 Product description and type of use ........................... 1 1.1.1 General features 1.2 Opening the box ..................................1 1.2.1 Contents of the box 1.3 Warnings ....................................... 1 1.3.1 Power 1.3.2 Safety precautions 1.3.3 Installation precautions 1.3.4 Cleaning the device 1.3.5 Privacy and copyright 2. -
Page 4: General Information
GENERAL INFORMATION Dear Customer, Thank you for having purchased this product. This document describes how to install and use the LCD colour monitor. Read this manual which contains information for correct, safe use carefully. Keep this manual at hand so that you can refer to it when needed. 1.1 PRODUCT DESCRIPTION AND TYPE OF USE The LED color monitor presents a very rugged structure. -
Page 5: Installation Precautions
1.3.3 INSTALLATION PRECAUTIONS • To prevent overheating the device, arrange it in a position allowing the flow of air through the slots in the casing. Ensure at least 5 cm of free space when installing inside a rack. For the same reason, do not install sources of heat, such as radiators or hot air ducts. -
Page 6: Controls & Settings
CONTROLS & SETTINGS 2. 1 Controls: 2.1. 1 Control key board: EXIT - + MENU POWER EXIT: Use this to exit the an item - : Use this to move down on the on-screen menu. + : Use this to move up on the on-screen menu MENU: Use this to select an menu Power: Press the power button to open or close the display Indicator Status... -
Page 7: Osd Menu Controls
2.2 OSD MENU CONTROLS A. BRIGHTNESS BRIGHTNESS Change image brightness, according to ambient light. (0-100) CONTRAST It allows the adjustment of contrast between white and black areas of the image.(0-100) It allows to select the energy saving mode between:”standard , movie , photo , game , FPS, RTS , user”. -
Page 8: D Osd Setting
D. OSD SETTING LANGUAGE Select the desired language HORIZONTAL Change the horizontal position of the OSD menu(0-100) VERTICAL Change the vertical position of the OSD menu(0-100) OSD TIME Set the duration of the OSD menu (0-100) TRANSPARENCY Set the transparency of the OSD menu (0-100) E. -
Page 9: Product Specifications
PRODUCT SPECIFICATIONS Display Specification Panel Type 24'' (16:9) LED Backlit Monitor Case Type Plastic Max Resolution 1920x1080@144 Hz, downward compatible Active Display Area 596.74(H) X 335.66 (V ) Pixel Pitch 0.2331 (H) x0.2331(V) Contrast Ratio (Max) 1000:1 Brightness(Max) 350 cd/m² Response Time 1ms(G2G) Viewing Angle...
