Summary of Contents for Newskill ICARUS 27

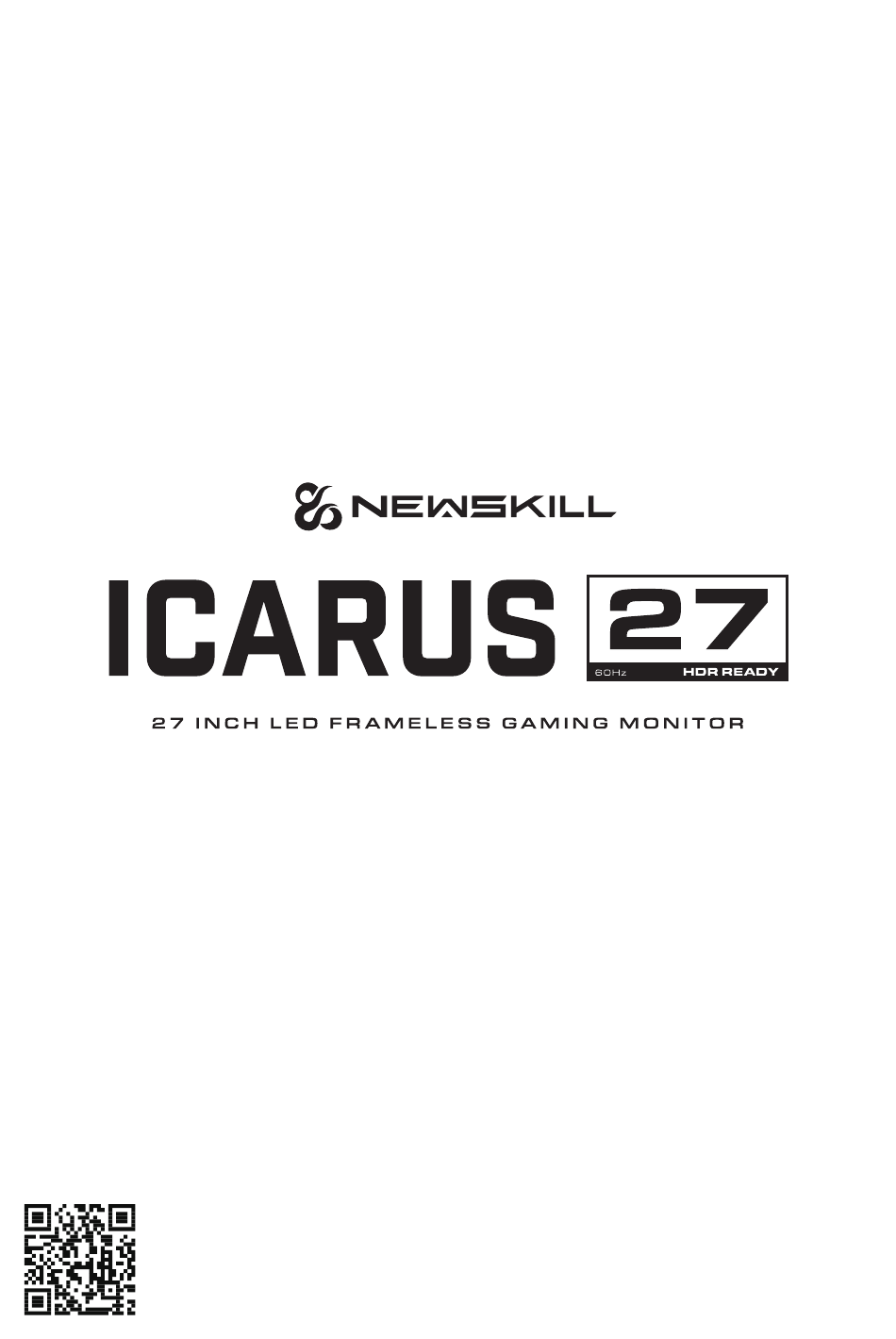

- Page 1 INSTRUCTION MANUAL Please read this manual thoroughly before use, and keep it handy for future reference. www.newskillgaming.com NS-MN-ICARUS27-4K...
-
Page 3: Table Of Contents
CONTENTS Saftey Information ....................... 1 What's included ........................2 Fitting the table stand ......................3 INPUT/OUTPUT Ports ......................4 Angle adjustment ........................ 5 Control buttons ........................6 Wall mounting ........................6 Getting Started …………………………………………………………....………….....……..… 7 Troubleshotting ………………………………………………....…………………….....……..… 10 Dimensions .....…………………….....……..……..……..……..……..……..… 10 Specification …………………………………………….......………………………...……..…... -
Page 4: Saftey Information
SAFETY INFORMATION • Read these instructions- All the safety and operating instructions should be read before this product is operated. • Keep these instructions- The safety and operating instructions should be retained for future reference. • Heed all warnings- All warnings on the appliance and in the operating instructions should be adhered to. •... -
Page 5: What's Included
WARNING • To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. • The apparatus shall not be exposed to dripping or splashing and objects filled with liquids, such as vases, shall not be placed on the apparatus. •... -
Page 6: Fitting The Table Stand
FITTING THE TABLE STAND 4pcs, M4*10mm... -
Page 7: Input/Output Ports
INPUT/OUTPUT PORT 1. DC Input Connect power supply here(included) 2. USB Only for charging 3. HDMI2 HDMI 2.0 Input (support 4k@60Hz) 4. HDMI1 HDMI 2.0 Input (support 4k@60Hz) 5. DP DisplayPort1.2 Input (support 4k@60Hz) 6. Audio Out Headphones/Speaker Output Before connecting, make sure the power supply of this product and the PC Please make sure you have turned off. -
Page 8: Angle Adjustment
ANGLE ADJUSTMENT In order to comfortably use the monitor there is a range of movement for adjusting the angle to ensure comfortable use. • It is recommended to reduce eye fatigue that the monitor should be a little lower than the height of the eye and at a distance of about 50-70cm. -
Page 9: Control Buttons
CONTROL BUTTONS Turn ON/OFF the monitor Enter menu setting page Press this button to enter selection or to move down in the menu Press this button if you want to move up the menu Exit menu WALL MOUNTING • The monitor is provided with mounting holes for a VESA approved wall mounting bracket(not supplied). •... -
Page 10: Getting Started
GETTING STARTED SETTINGS INITIAL SETUP 1. Connect the monitor to a power outlet. 2. Press the POWER button on the monitor or to turn it on(the indicator will be lit blue) 3. Connect the relevant cable to the corresponding source on the monitor. The input should be automatically detected. - Page 11 IMAGE MENU Alter the Horizontal / Vertical Position, Clock, Phase and Aspect Ratio of the display. Alter the Horizontal / Vertical Position, Clock, Phase and Aspect Ratio of the display. Adjust the Horizontal Position of the screen between 0-100 Adjust the Vertical Position of the screen between 0-100 Adjust the Clock Speed between 0-100 Adjust the Phase between 0-100...
- Page 12 RESET MENU Use the Auto Adjustment for the display and colour, or reset to factory settings. Auto adjust image Auto adjust colour Reset to factory settings MISC MENU Adjust miscellaneous settings including input source, volume and Freesync setting. Select from DP1, DP2, HDMI1, HDMI2 and Auto Adjust volume between 0-100 FreeSync-select from On or Off...
-
Page 13: Troubleshotting
TROUBLE SHOTTING Problem Solution No power Insert the power plug securely into the power outlet. Ensure that the equipment is connected properly. No picture Ensure the correct input is selected. Disconnect the power plug and then reconnect it. (The Buttons on the monitor don’t do anything unit may not be operating properly due to lightning, static, or other factors.) Electronic equipment near the unit may be causing... -
Page 14: Specification
PRODUCT SPECIFICATIONS Display Specification Screen Size 27'' Aspect Ratio 16:9 Brightness(MAX) 350 cd/m² Contrast Ratio 1000:1 Resolution 2840(H) x 2160(V) @ 60 Hz, downward compatible Response Time 5ms(G2G) Viewing Angle 178°/178°(CR=10) Color Support 1.07G Filter 3D Combo Pixel Pitch 0.155(h)x0.155(v) Active Display Area 596.16(H)x335.34(V) INPUT... - Page 15 PRODUCT DISPOSAL Do not dispose this product as unsorted waste. Collection of such waste must be handled separately as special treatment is necessary Recycling facilities are now available for all customers at which you can deposit your old electrical products. Customers will be able to take any old electrical equipment to participating civic amenity sites run by their local councils.
