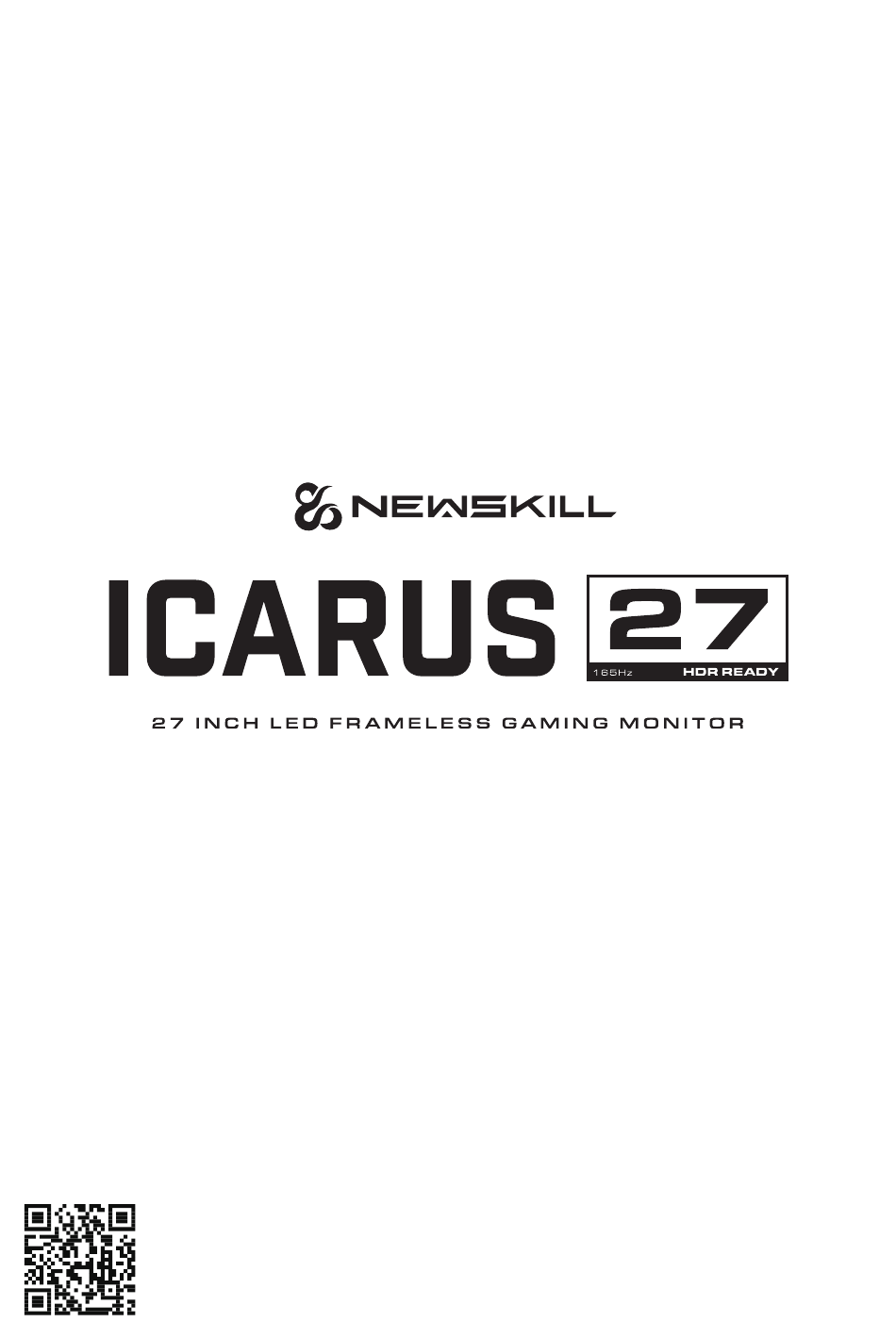

Newskill ICARUS Instruction Manual

27 inch led frameless gaming monitor
Hide thumbs Also See for ICARUS:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
Please read this manual thoroughly before use,
and keep it handy for future reference.
www.newskillgaming.com
NS-MN-ICARUS27-2K

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICARUS and is the answer not in the manual?

Questions and answers

Related Manuals for Newskill ICARUS

Summary of Contents for Newskill ICARUS

  • Page 1 INSTRUCTION MANUAL Please read this manual thoroughly before use, and keep it handy for future reference. www.newskillgaming.com NS-MN-ICARUS27-2K...

  • Page 3: Table Of Contents

    CONTENTS 1. General information ......................1 1.1 Product description and type of use ........................... 1 1.1.1 General features 1.2 Opening the box ..................................1 1.2.1 Contents of the box 1.3 Warnings ....................................... 1 1.3.1 Power 1.3.2 Safety precautions 1.3.3 Installation precautions 1.3.4 Cleaning the device 1.3.5 Privacy and copyright 2.

  • Page 4: General Information

    GENERAL INFORMATION Dear Customer, Thank you for having purchased this product. This document describes how to install and use the LCD colour monitor. Read this manual which contains information for correct, safe use carefully. Keep this manual at hand so that you can refer to it when needed. 1.1 PRODUCT DESCRIPTION AND TYPE OF USE The LED color monitor presents a very rugged structure.

  • Page 5: Installation Precautions

    1.3.3 INSTALLATION PRECAUTIONS • To prevent overheating the device, arrange it in a position allowing the flow of air through the slots in the casing. Ensure at least 5 cm of free space when installing inside a rack. For the same reason, do not install sources of heat, such as radiators or hot air ducts.

  • Page 6: Controls & Settings

    CONTROLS & SETTINGS 2. 1 Controls: 2.1. 1 Control key board: EXIT MENU POWER EXIT: Go back to previous menu, and exit OSD : Move down/left in the OSD menu. Decrease (-) the value of volume/brightness. : Move up/right in the OSD menu. Increase (+) the value of volume/brightness. MENU: Enter into OSD menu and select item for confirming settings.

  • Page 7: Osd Menu Controls

    2.2 OSD MENU CONTROLS A. PICTURE BRIGHTNESS Change image brightness, according to ambient light. (0-100) CONTRAST It allows the adjustment of contrast between white and black areas of the image.(0-100) It allows to select the energ y saving mode between:”standard , movie , photo , game , FPS, RTS , user”.

  • Page 8: D Setup

    D. SETUP INPUT Select from :”DP , HDMI , DVI”. MUTE Adjust mute, ON/OFF . VOLUME Adjust volume from (0-100) RESET Factory default the monitor E. OTHERS DISPLAY SIZE Choose the display size :”Full Screen , 16:9 , 4:3”. LOW BLUE Choose the low blue :”off , weak , median ,strong , strongest ”.

  • Page 9: Product Specifications

    PRODUCT SPECIFICATIONS Display Specification Panel Type 27'' (16:9) LED Backlit Monitor Case Type Plastic Max Resolution 2560(H) x 1440(V) @ 165 Hz, downward compatible Active Display Area 596.74(H) X 335.66 (V ) Pixel Pitch 0.2331 (H) x0.2331(V) Contrast Ratio (Max) 1000:1 Brightness(Max) 350 cd/m²...
