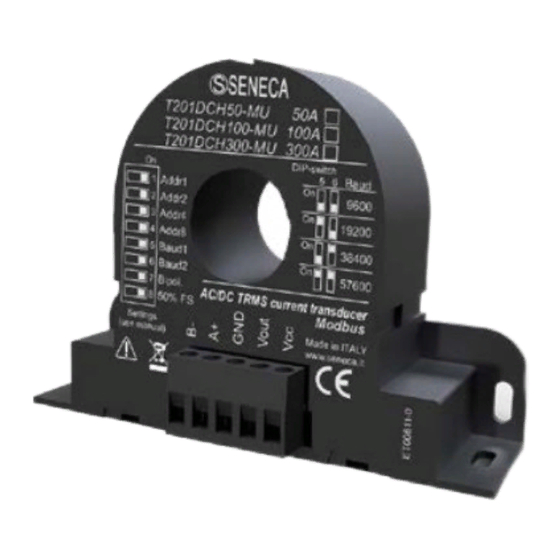

Ac/dc true rms or dc bipolar current transformer with modbus rtu protocol and analog/digital output
Hide thumbs Also See for T201DCH50-MU:
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
T201DCH50-MU
T201DCH100-MU
T201DCH300-MU
T201DCH600-MU
AC/DC TRUE RMS or DC BIPOLAR CURRENT TRANSFORMER
WITH MODBUS RTU PROTOCOL AND ANALOG/DIGITAL OUTPUT
SENECA S.r.l.
Via Austria 26 – 35127 – Z.I. - PADOVA (PD) - ITALY
Tel. +39.049.8705355 – 8705355 Fax +39 049.8706287
ORIGINAL INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T201DCH50-MU and is the answer not in the manual?

Questions and answers

Related Manuals for Seneca T201DCH50-MU

Summary of Contents for Seneca T201DCH50-MU

  • Page 1 USER MANUAL T201DCH50-MU T201DCH100-MU T201DCH300-MU T201DCH600-MU AC/DC TRUE RMS or DC BIPOLAR CURRENT TRANSFORMER WITH MODBUS RTU PROTOCOL AND ANALOG/DIGITAL OUTPUT SENECA S.r.l. Via Austria 26 – 35127 – Z.I. - PADOVA (PD) - ITALY Tel. +39.049.8705355 – 8705355 Fax +39 049.8706287...
  • Page 2 Set up shall be performed only after a correct installation and the user shall perform every operation described in the installation manual carefully. Seneca is not considered liable for failure, breakdown, accident caused because of ignorance or failure to apply the indicated requirements.

  • Page 3: Table Of Contents

    Easy Setup Menu ..................................20 6.1. Creating a Project Configuration ............................21 6.2. Testing the Device ................................25 6.3. 6.3.1. The datalogger ................................25 www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev.2 Page 3 BE REPRODUCED WITHOUT PRIOR PERMISSION.

  • Page 4: Device Description And Intended Use

     Digital Output configurable Alarm (Max, Min, Window)  Suitable for use with all Seneca modules that allow to power the device with at least 12 Vdc and having a  0 – 10Vdc input Simple configurable with dip switches or with the free Easy Setup software ...

  • Page 5: Configuring The Device

    WARNING! The Dip Switch setting will overwrite the Flash setting so, if you need to use the flash configuration you MUST set ALL dip switches to “OFF”. www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev.2 Page 5 BE REPRODUCED WITHOUT PRIOR PERMISSION.

  • Page 6: Dip Switch Configuration

    3.2. Dip Switch 1..4 are using for configure the Modbus RTU Station Address: Modbus RTU DIP1 DIP2 DIP3 DIP4 Address www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev.2 Page 6 BE REPRODUCED WITHOUT PRIOR PERMISSION.

  • Page 7: Setting The Rs485 Baud Rate

    Dip Switch 7: Select from True RMS Measure / Bipolar DC Measure Dip Switch 8: Select 50% of full scale The following figure is related to RMS measure (“Bipol” dip switch 7 = OFF): www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev.2...
  • Page 8 User Manual T201DCH50/100/300/600-MU MODEL DIP7 DIP8 BIPOL 50% FS T201DCH50-MU 25 A 50 A T201DCH50-MU 12,5 A 25 A T201DCH100-MU 50 A 100 A T201DCH100-MU 25 A 50 A T201DCH300-MU 150 A 300 A T201DCH300-MU 75 A 150 A T201DCH600-MU...

  • Page 9: Modbus Rtu Protocol

    All 32 bits values are stored into 2 consecutive registers WARNING! You can Read a Maximum of 5 Modbus Registers with the Read Holding Register function (function 3) www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev.2...

  • Page 10: Modbus Register Table

    Signed 16 bit = signed integer register can take values from -32768 to +32767 Float 32 bits = 32-bit single-precision floating point register (IEEE 754) https://en.wikipedia.org/wiki/IEEE_754 BIT = Boolean registry, can be 0 (false) or 1 (true) www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev.2 Page 10 BE REPRODUCED WITHOUT PRIOR PERMISSION.

  • Page 11: 0-Based" Or "1-Based" Modbus Addresses

    According to the Modbus standard the Holding Register registers are addressable from 0 to 65535, there are 2 different conventions for numbering the addresses: "0-BASED" and "1-BASED". For greater clarity, Seneca shows its register tables in both conventions. ATTENTION! CAREFULLY READ THE DOCUMENTATION OF THE MODBUS MASTER DEVICE IN ORDER TO UNDERSTAND WHICH OF THE TWO CONVENTIONS THE MANUFACTURER HAS DECIDED TO USE www.seneca.it...

  • Page 12: Modbus Addresses With "0-Based" Convention

    A further convention is also possible where the number 4 is omitted in front of the register address: HOLDING MODBUS ADDRESS MEANING WITHOUT 4x FIRST REGISTER SECOND REGISTER THIRD REGISTER FOURTH REGISTER FIFTH REGISTER www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev.2 Page 12 BE REPRODUCED WITHOUT PRIOR PERMISSION.

  • Page 13: Bit Convention Within A Modbus Holding Register

    The representation of a 32-bit value in the Modbus Holding Registers is made using 2 consecutive Holding Registers (a Holding Register is a 16-bit register). To obtain the 32-bit value it is therefore necessary to read two consecutive registers: www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev.2...

  • Page 14: Type Of 32-Bit Floating Point Data (Ieee 754)

    Since we have 16-bit registers available, the value must be divided into MSW and LSW: 0x4022 (16418 decimal) are the 16 most significant bits (MSW) while 0x8F5C (36700 decimal) are the 16 least significant bits (LSW). www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev.2...

  • Page 15: T201Dch-Mu: Modbus 4Xxxx Holding Registers Table (Function Code 3)

    0 value FLOAT Current Measure Value 40049 CURRENT in floating point LSW- (LSW) Float32 48-49 VALUE 40050 (MSW) www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev.2 Page 15 BE REPRODUCED WITHOUT PRIOR PERMISSION.
  • Page 16 40065 FLOAT (MSW) CURRENT Copy of Float Current Float32 64-65 40066 VALUE Value (LSW) Registers with Inverse (MSW-LSW) Floating Point www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev.2 Page 16 BE REPRODUCED WITHOUT PRIOR PERMISSION.
  • Page 17 7 = 2400 baud Communication Parity Unsigned PARITY 40103 0 = None (8,N,1) 16 bits 1 = Even (8,E,1) 2 = Odd (8,O,1) www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev.2 Page 17 BE REPRODUCED WITHOUT PRIOR PERMISSION.
  • Page 18 Time 40106 16 bits 1 = HIGH RMS = 2900 ms response Time BIPOLAR = 650 ms response Time Select the model 0 = T201DCH50-MU According 1 = T201DCH100-MU Unsigned MODEL to the 40107 2 = T201DCH300-MU 16 bits...
  • Page 19 40118 (MSW) SCALE ALARM Select the Hysteresis for 40119 (LSW) Float32 10.0 A 118-119 HYSTERESIS the Alarm in [A] 40120 (MSW) www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev.2 Page 19 BE REPRODUCED WITHOUT PRIOR PERMISSION.

  • Page 20: Full Configuration With Easy Setup

    Connect: Use the connect icon for connect the PC to the Device. Note that you need a RS485 to USB converter like Seneca S117P1 or S107USB for connect the device to a PC. New: Load the default parameters in the actual project...

  • Page 21: Creating A Project Configuration

    You must set all dip switches to OFF before sending the configuration to the device or the actual configuration will be overwritten from the dip switches configuration! The parameters in the “Configuration” section that can be configured are: Model: Select between T201DCH50-MU, T201DCH100-MU, T201DCH300-MU, T201DCH300-MU HW2 or T201DCH600-MU model. Station Address: Select The Modbus RTU station address...
  • Page 22 “Analogic” or “Digital”: If The Output is configured in “Analogic”: Input Start/Stop Scale and Output Start/Stop Scale: Select the Start/Stop input and Output Start/Stop scale see figure: www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev.2 Page 22 BE REPRODUCED WITHOUT PRIOR PERMISSION.
  • Page 23 OUTPUT STOP = 6 V Note that with an input of 0 A the output is 0 V and over 80 A the output is over 6V (6V and 2V are not a limit). www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc.
  • Page 24 Hysteresis: Select the Alarm Hysteresis in [A] High Alarm: Select the High Threshold for the Alarm in [A] Low Alarm: Select the Low Threshold for the Alarm in [A] www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev.2...

  • Page 25: Testing The Device

    The datalogger can be used for acquire data that can be used with an external software (for example Microsoft Excel ™). It is possible to set how much time to acquire the samples (minimum 1 second): www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc.
  • Page 26 8;LOG;18/07/2017 17:37:23;9,97722816467285;10,0778799057007;0;5,50247716903687 9;LOG;18/07/2017 17:37:24;10,0623197555542;10,0778799057007;0;5,50186014175415 10;LOG;18/07/2017 17:37:25;9,99120616912842;10,0778799057007;0;5,50126504898071 11;LOG;18/07/2017 17:37:26;10,0330896377563;10,0778799057007;0;5,50066900253296 12;LOG;18/07/2017 17:37:27;10,0363702774048;10,0778799057007;0;5,50058698654175 13;LOG;18/07/2017 17:37:29;10,0059795379639;10,0778799057007;0;5,50120306015015 14;LOG;18/07/2017 17:37:30;9,97681522369385;10,0778799057007;0;5,50337982177734 15;LOG;18/07/2017 17:37:31;10,0129499435425;10,0778799057007;0;5,50225019454956 16;LOG;18/07/2017 17:37:32;10,0162401199341;10,0778799057007;0;5,50075101852417 17;LOG;18/07/2017 17:37:33;10,0614995956421;10,0778799057007;0;5,50206613540649 www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev.2 Page 26 BE REPRODUCED WITHOUT PRIOR PERMISSION.
