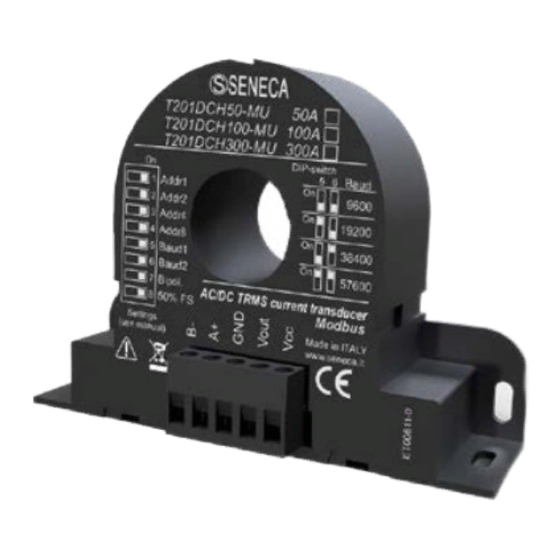

Seneca T201DCH50-MU User Manual

Ac/dc true rms or dc bipolar current transformer with modbus rtu protocol and analog/digital output
Hide thumbs Also See for T201DCH50-MU:
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
T201DCH50-MU
T201DCH100-MU
T201DCH300-MU
AC/DC TRUE RMS or DC BIPOLAR CURRENT TRANSFORMER
WITH MODBUS RTU PROTOCOL AND ANALOG/DIGITAL OUTPUT
SENECA S.r.l.
Via Austria 26 – 35127 – Z.I. - PADOVA (PD) - ITALY
Tel. +39.049.8705355 – 8705355 Fax +39 049.8706287
www.seneca.it
ORIGINAL INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T201DCH50-MU and is the answer not in the manual?

Questions and answers

Related Manuals for Seneca T201DCH50-MU

Summary of Contents for Seneca T201DCH50-MU

  • Page 1 USER MANUAL T201DCH50-MU T201DCH100-MU T201DCH300-MU AC/DC TRUE RMS or DC BIPOLAR CURRENT TRANSFORMER WITH MODBUS RTU PROTOCOL AND ANALOG/DIGITAL OUTPUT SENECA S.r.l. Via Austria 26 – 35127 – Z.I. - PADOVA (PD) - ITALY Tel. +39.049.8705355 – 8705355 Fax +39 049.8706287 www.seneca.it...
  • Page 2 Set up shall be performed only after a correct installation and the user shall perform every operation described in the installation manual carefully. Seneca is not considered liable for failure, breakdown, accident caused because of ignorance or failure to apply the indicated requirements.

  • Page 3: Table Of Contents

    Easy Setup Menu ..................................19 6.1. Creating a Project Configuration ............................20 6.2. Testing the Device ................................23 6.3. The datalogger ................................24 6.3.1. www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev. 1.0.0.0 Page 3 BE REPRODUCED WITHOUT PRIOR PERMISSION.

  • Page 4: Device Description And Intended Use

     Digital Output configurable Alarm (Max, Min, Window)  Suitable for use with all Seneca modules that allow to power the device with at least 12 Vdc and having a  0 – 10Vdc input Simple configurable with dip switches or with the free Easy Setup software ...

  • Page 5: Configuring The Device

    WARNING! The Dip Switch setting will overwrite the Flash setting so, if you need to use the flash configuration you MUST set ALL dip switches to “OFF”. www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev. 1.0.0.0 Page 5 BE REPRODUCED WITHOUT PRIOR PERMISSION.

  • Page 6: Dip Switch Configuration

    Dip Switch 1..4 are using for configure the Modbus RTU Station Address: Modbus RTU DIP1 DIP2 DIP3 DIP4 Address www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev. 1.0.0.0 Page 6 BE REPRODUCED WITHOUT PRIOR PERMISSION.

  • Page 7: Setting The Rs485 Baud Rate

    Dip Switch 7: Select from True RMS Measure / Bipolar DC Measure Dip Switch 8: Select 50% of full scale The following figure is related to RMS measure (“Bipol” dip switch 7 = OFF): www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev.
  • Page 8 User Manual T201DCH50/100/300-MU MODEL DIP7 DIP8 BIPOL 50% FS T201DCH50-MU 25 A 50 A T201DCH50-MU 12,5 A 25 A T201DCH100-MU 50 A 100 A T201DCH100-MU 25 A 50 A T201DCH300-MU 150 A 300 A T201DCH300-MU 75 A 150 A The following figure is related to Bipolar measure (“Bipol” dip switch 7 = ON):...

  • Page 9: Modbus Rtu Protocol

    All 32 bits values are stored into 2 consecutive registers WARNING! You can Read a Maximum of 5 Modbus Registers with the Read Holding Register function (function 3) www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev.

  • Page 10: Modbus Register Table

    According to the Modbus standard the Holding Register registers are addressable from 0 to 65535, there are 2 different conventions for numbering the addresses: "0-BASED" and "1-BASED". For greater clarity, Seneca shows its register tables in both conventions. www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc.
  • Page 11 T201DCH50/100/300-MU ATTENTION! CAREFULLY READ THE DOCUMENTATION OF THE MODBUS MASTER DEVICE IN ORDER TO UNDERSTAND WHICH OF THE TWO CONVENTIONS THE MANUFACTURER HAS DECIDED TO USE www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev. 1.0.0.0 Page 11 BE REPRODUCED WITHOUT PRIOR PERMISSION.

  • Page 12: Modbus Addresses With "0-Based" Convention

    A further convention is also possible where the number 4 is omitted in front of the register address: HOLDING MODBUS ADDRESS MEANING WITHOUT 4x FIRST REGISTER SECOND REGISTER THIRD REGISTER FOURTH REGISTER FIFTH REGISTER www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev. 1.0.0.0 Page 12 BE REPRODUCED WITHOUT PRIOR PERMISSION.

  • Page 13: Bit Convention Within A Modbus Holding Register

    The representation of a 32-bit value in the Modbus Holding Registers is made using 2 consecutive Holding Registers (a Holding Register is a 16-bit register). To obtain the 32-bit value it is therefore necessary to read two consecutive registers: www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev.

  • Page 14: Type Of 32-Bit Floating Point Data (Ieee 754)

    Since we have 16-bit registers available, the value must be divided into MSW and LSW: 0x4022 (16418 decimal) are the 16 most significant bits (MSW) while 0x8F5C (36700 decimal) are the 16 least significant bits (LSW). www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev.

  • Page 15: T201Dch-Mu: Modbus 4Xxxx Holding Registers Table (Function Code 3)

    [A x100] CURRENT Signed 16 40051 VALUE Bits For example: [A X100] 18534 = 185.34 A -2500 = -25.00 A www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev. 1.0.0.0 Page 15 BE REPRODUCED WITHOUT PRIOR PERMISSION.
  • Page 16 BIT 11 = External Window Alarm BIT 12..15 = Not Used MODBUS Modbus RTU station Unsigned STATION 40101 address 16 bits ADDRESS www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev. 1.0.0.0 Page 16 BE REPRODUCED WITHOUT PRIOR PERMISSION.
  • Page 17 Time 40106 16 bits 1 = HIGH RMS = 2900 ms response Time BIPOLAR = 650 ms response Time www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev. 1.0.0.0 Page 17 BE REPRODUCED WITHOUT PRIOR PERMISSION.
  • Page 18 (4xxxx) ADDRESS START VALUE Select the model 0 or 1 or 2 Unsigned According MODEL 0 = T201DCH50-MU 40107 16 bits to the 1 = T201DCH100-MU model 2 = T201DCH300-MU Select the Alarm linked to the Digital Output: 0 = NONE...

  • Page 19: Full Configuration With Easy Setup

    Connect: Use the connect icon for connect the PC to the Device. Note that you need a RS485 to USB converter like Seneca S117P1 or S107USB for connect the device to a PC. New: Load the default parameters in the actual project...

  • Page 20: Creating A Project Configuration

    The parameters in the “Configuration” section that can be configured are: Model: Select between T201DCH50-MU, T201DCH100-MU or T201DCH300-MU model. Station Address: Select The Modbus RTU station address Baud Rate: Select the Baud rate from 1200 to 115200 baud...
  • Page 21 “Analogic” or “Digital”: If The Output is configured in “Analogic”: Input Start/Stop Scale and Output Start/Stop Scale: Select the Start/Stop input and Output Start/Stop scale see figure: www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev. 1.0.0.0 Page 21 BE REPRODUCED WITHOUT PRIOR PERMISSION.
  • Page 22 OUTPUT STOP = 6 V Note that with an input of 0 A the output is 0 V and over 80 A the output is over 6V (6V and 2V are not a limit). www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc.

  • Page 23: Testing The Device

    Low Alarm: Select the Low Threshold for the Alarm in [A] Testing the Device 6.3. When the configuration is sent to the device you can test the actual configuration by using the icon: www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev. 1.0.0.0 Page 23...

  • Page 24: The Datalogger

    Excel ™). It is possible to set how much time to acquire the samples (minimum 1 second): The datalogger will create a file in a standard .csv format that can be open with external tools: www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc.
  • Page 25 8;LOG;18/07/2017 17:37:23;9,97722816467285;10,0778799057007;0;5,50247716903687 9;LOG;18/07/2017 17:37:24;10,0623197555542;10,0778799057007;0;5,50186014175415 10;LOG;18/07/2017 17:37:25;9,99120616912842;10,0778799057007;0;5,50126504898071 11;LOG;18/07/2017 17:37:26;10,0330896377563;10,0778799057007;0;5,50066900253296 12;LOG;18/07/2017 17:37:27;10,0363702774048;10,0778799057007;0;5,50058698654175 13;LOG;18/07/2017 17:37:29;10,0059795379639;10,0778799057007;0;5,50120306015015 14;LOG;18/07/2017 17:37:30;9,97681522369385;10,0778799057007;0;5,50337982177734 15;LOG;18/07/2017 17:37:31;10,0129499435425;10,0778799057007;0;5,50225019454956 16;LOG;18/07/2017 17:37:32;10,0162401199341;10,0778799057007;0;5,50075101852417 17;LOG;18/07/2017 17:37:33;10,0614995956421;10,0778799057007;0;5,50206613540649 www.seneca.it ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY Doc. MI00546-EN Rev. 1.0.0.0 Page 25 BE REPRODUCED WITHOUT PRIOR PERMISSION.
