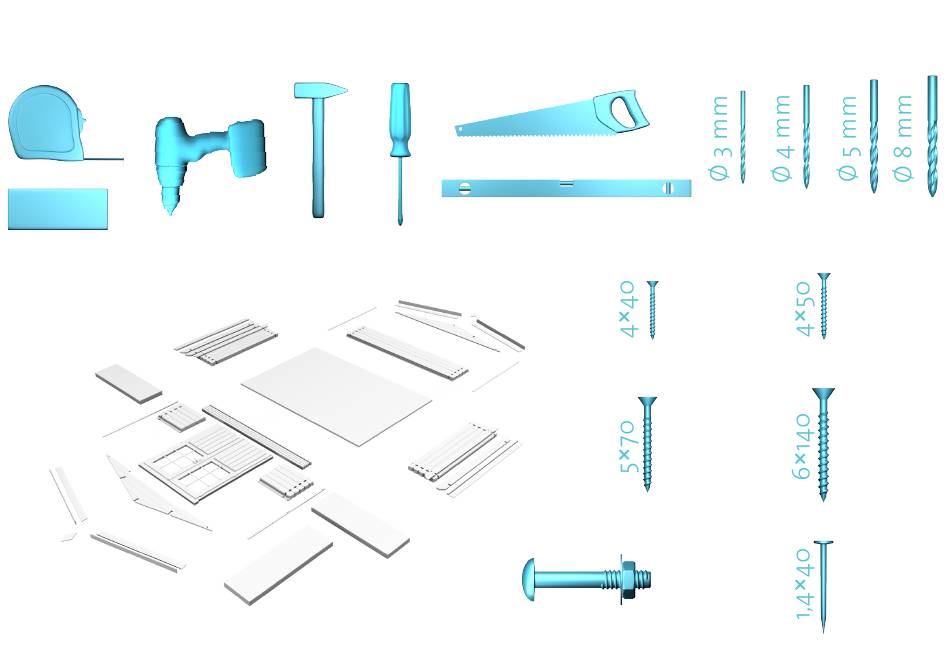

- Page 1 BENTE I 28 PREPARE THE GROUND, UNWRAP THE PACKAGE, LAY OUT THE COMPONENTS, FIND THE TOOLS. × 75 × 290 × 10 × 25 M8×60 × 12 × 25 1/19...
- Page 2 BENTE I 28 LAY OUT THE FOUNDATION BEAMS AB=CD SQUARE IT BY MEASURING FROM CORNER TO CORNER. 0° MAKE SURE THAT THE FOUNDATION IS INSTALLED ON A LEVEL SURFACE. CHECKING ALL DIRECTIONS, 2/19 INCLUDING CORNER TO CORNER.
- Page 3 BENTE I 28 LAY OUT THE BOTTOM LOGS, ATTACH TO THE FOUNDATION. × 4 × 10 2 BL-1 A LG-1 5×70 6×140 B LG-1 THE WALL LOGS WILL HANG OVER 1 BL-1 THE FOUNDATION BEAMS 1 BL-1 APPROXIMATELY 5MM. THIS OVERHANG 3/19 IS DESIGNED AS A RAIN DRIP.
- Page 4 BENTE I 28 ATTACH THE FIRST ROW OF WALL LOGS INTO THE BOTTOM LOGS WITH SCREWS. × 4 × 4 6×140 2 LG-5 5×70 1 LG-1 1 LG-1 4/19...
- Page 5 BENTE I 28 AFTER PLACING 3-4 ROWS OF WALL LOGS, TAP EACH WALL LOG IN PLACE USING A HAMMER AND THE HITBLOCK PROVIDED, TO TIGHTEN THE LOGS. HITBLOCK 5/19...
- Page 6 BENTE I 28 SLIDE THE DOOR IN, ATTACH THE HANDLE. BDD2R LOGS IN PLACE 6/19...
- Page 7 BENTE I 28 DON`T FORGET TO TIGHTEN THE LOGS AFTER EVERY 3-4 ROWS. HITBLOCK 7/19...
- Page 8 BENTE I 28 INSTALL THE GABLES WITH LONG SCREWS TO THE WALL LOGS ON THE FRONT AND REAR WALLS. × 4 GABLE A TL-1 B TL-1 LOGS IN PLACE 8/19...
- Page 9 BENTE I 28 INSTALL THE ROOF PURLINS AND ATTACH THEM WITH SCREWS. × 6 9/19...
- Page 10 BENTE I 28 PLACE THE FIRST ROOFBOARD FLUSH WITH THE END OF THE PURLINS AND ATTACH WITH 6 SCREWS, 3 INTO EACH NEXT, SAW THE LAST BOARD TO MAKE IT FIT. × 132 10/19...
- Page 11 BENTE I 28 INSERT FOR THE FASCIA TRIMS SCREWS AFTER EVERY 0,5 METERS. × 20 11/19...
- Page 12 BENTE I 28 EAVES EDGES GO ON TOP OF THE ROOFING*. *(NOT INCLUDED) × 32 12/19...
- Page 13 BENTE I 28 ATTACH ROMBS WITH SCREWS. ROMB × 4 13/19...
- Page 14 BENTE I 28 10 SCREWS INTO THE FIRST FLOORBOARD, INTO EACH NEXT, SAW THE LAST BOARD TO MAKE IT FIT. × 135 14/19...
- Page 15 BENTE I 28 SAW THE BASEBOARDS AND ATTACH WITH NAILS EVERY 0,5 METERS. × 25 15/19...
- Page 16 BENTE I 28 DRILL THROUGH THE WALL, HOLE MUST BE AT THE BOTTOM OF THE OVAL, ATTACH WITH BOLT. × 12 WINDBOARD 16/19...
- Page 17 BENTE I 28 IF DOOR IS TILTED, PUSH THE DOOR FRAME SO THAT ALL CORNERS ARE 90º. 90º 90º 17/19...
- Page 18 BENTE I 28 DOORS ARE IN DIFFERENT HEIGHTS OR THERE IS A GAP BETWEEN THEM, ADJUST 3 SCREWS ON DOOR HINGES. 18/19...
- Page 19 BENTE I 28 WHEN THE HOUSE IS ASSEMBLED, YOU SHOULD COVER THE TIMBER WITH WOOD PROTECTIVE SEAL, PAINT OR STAIN AS SOON AS POSSIBLE TO AVOID DETERIORATION TO THE WOOD. 19/19 100%...
