Summary of Contents for Holz-Blech Annika II 28

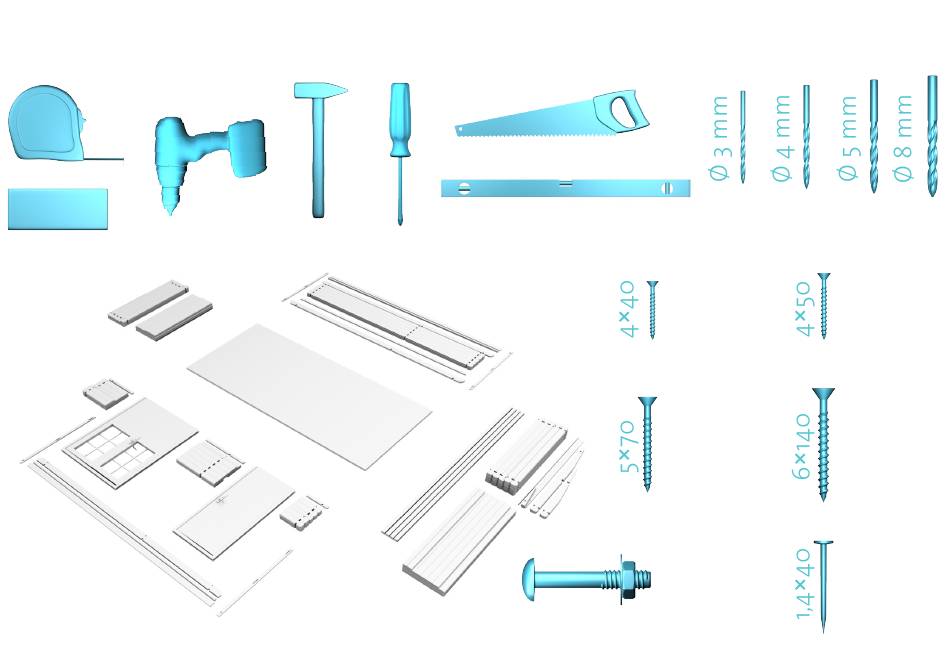

- Page 1 ANNIKA II 28 PREPARE THE GROUND, UNWRAP THE PACKAGE, LAY OUT THE COMPONENTS, FIND THE TOOLS. × 70 × 320 × 15 × 30 M8×60 × 12 × 35 1/18...
- Page 2 ANNIKA II 28 LAY OUT THE FOUNDATION BEAMS AB=CD SQUARE IT BY MEASURING FROM CORNER TO CORNER. 0° MAKE SURE THAT THE FOUNDATION IS INSTALLED ON A LEVEL SURFACE. CHECKING ALL DIRECTIONS, 2/18 INCLUDING CORNER TO CORNER.
- Page 3 ANNIKA II 28 LAY OUT THE BOTTOM LOGS, ATTACH TO THE FOUNDATION. × 12 × 7 2 BL-1 A LG-4 5×70 B LG-4 C LG-4 6×140 1 BL-2 THE WALL LOGS WILL HANG OVER 1 BL-3 THE FOUNDATION BEAMS APPROXIMATELY 5MM.
- Page 4 ANNIKA II 28 ATTACH THE FIRST ROW OF WALL LOGS INTO THE BOTTOM LOGS WITH SCREWS. × 6 × 7 6×140 2 LG-1 5×70 1 LG-2 1 LG-3 1 LG-1 4/18...
- Page 5 ANNIKA II 28 AFTER PLACING 3-4 ROWS OF WALL LOGS, TAP EACH WALL LOG IN PLACE USING A HAMMER AND THE HITBLOCK PROVIDED, TO TIGHTEN THE LOGS. HITBLOCK 5/18...
- Page 6 ANNIKA II 28 SLIDE THE DOOR IN, ATTACH THE HANDLE. BD2R BDD1R LOGS IN PLACE 6/18...
- Page 7 ANNIKA II 28 DON`T FORGET TO TIGHTEN THE LOGS AFTER EVERY 3-4 ROWS. 7/18...
- Page 8 ANNIKA II 28 INSTALL THE GABLES WITH LONG SCREWS TO THE WALL LOGS ON THE FRONT AND REAR WALLS. × 12 2 TL-1 B LG-1 1 TL-1 B LG-2 B LG-3 A LG-1 C LG-1 C LG-2 A LG-2 C LG-3...
- Page 9 ANNIKA II 28 INSTALL THE ROOF PURLINS AND ATTACH THEM WITH SCREWS. × 3 9/18...
- Page 10 ANNIKA II 28 PLACE THE FIRST ROOFBOARD FLUSH WITH THE END OF THE PURLINS AND ATTACH WITH 6 SCREWS, 3 INTO EACH NEXT, SAW THE LAST BOARD TO MAKE IT FIT. × 135 10/18...
- Page 11 ANNIKA II 28 FOR THE FASCIA TRIMS INSERT SCREWS AFTER EVERY 0,5 METERS. × 44 11/18...
- Page 12 ANNIKA II 28 EAVES EDGES GO ON TOP OF THE ROOFING*. *(NOT INCLUDED) ×20 12/18...
- Page 13 ANNIKA II 28 14 SCREWS INTO THE FIRST FLOORBOARD, INTO EACH NEXT, SAW THE LAST BOARD TO MAKE IT FIT. × 160 13/18...
- Page 14 ANNIKA II 28 SAW THE BASEBOARDS AND ATTACH WITH NAILS EVERY 0,5 METERS. × 35 14/18...
- Page 15 ANNIKA II 28 DRILL THROUGH THE WALL, HOLE MUST BE AT THE BOTTOM OF THE OVAL, 20CM ATTACH WITH BOLT. × 12 WINDBOARD 15/18...
- Page 16 ANNIKA II 28 IF DOOR IS TILTED, PUSH THE DOOR FRAME SO THAT ALL CORNERS ARE 90º. 90º 90º 16/18...
- Page 17 ANNIKA II 28 DOORS ARE IN DIFFERENT HEIGHTS OR THERE IS A GAP BETWEEN THEM, ADJUST 3 SCREWS ON DOOR HINGES. 17/18...
- Page 18 ANNIKA II 28 WHEN THE HOUSE IS ASSEMBLED, YOU SHOULD COVER THE TIMBER WITH WOOD PROTECTIVE SEAL, PAINT OR STAIN AS SOON AS POSSIBLE TO AVOID DETERIORATION TO THE WOOD. 18/18 100%...
