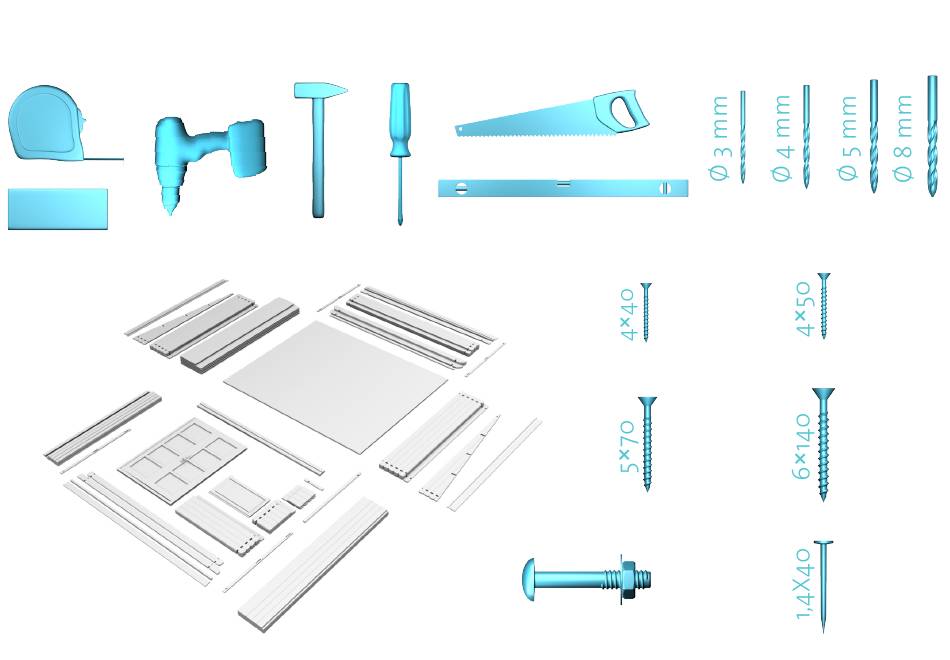

- Page 1 CARINA 28 PREPARE THE GROUND, UNWRAP THE PACKAGE, LAY OUT THE COMPONENTS, FIND THE TOOLS. × 500 × 70 × 15 × 60 M8×60 × 12 × 30 1/20...
- Page 2 CARINA 28 LAY OUT THE FOUNDATION BEAMS AB=CD SQUARE IT BY MEASURING FROM CORNER TO CORNER. 0° IFB2 IFB1 MAKE SURE THAT THE FOUNDATION IS INSTALLED ON A LEVEL SURFACE. CHECKING ALL DIRECTIONS, 2/20 INCLUDING CORNER TO CORNER.
- Page 3 CARINA 28 ASSEMBLE THE FOUNDATION WITH SCREWS. × 20 3/20...
- Page 4 CARINA 28 LAY OUT THE BOTTOM LOGS, ATTACH TO THE FOUNDATION. × 6 × 8 2 BL-1 A LG-5 5×70 6×140 THE WALL LOGS WILL HANG OVER B LG-5 1 BL-1 THE FOUNDATION BEAMS 1 BL- 2 APPROXIMATELY 5MM. THIS OVERHANG 4/20 IS DESIGNED AS A RAIN DRIP.
- Page 5 CARINA 28 ATTACH THE FIRST ROW OF WALL LOGS INTO THE BOTTOM LOGS WITH SCREWS. × 4 × 6 6×140 2 LG-1 5×70 1 LG-2 1 LG-3 5/20...
- Page 6 CARINA 28 AFTER PLACING 3-4 ROWS OF WALL LOGS, TAP EACH WALL LOG IN PLACE USING A HAMMER AND THE HITBLOCK PROVIDED, TO TIGHTEN THE LOGS. HITBLOCK 6/20...
- Page 7 CARINA 28 SLIDE THE DOOR IN, ATTACH THE HANDLE. BDD4R LOGS IN PLACE 7/20...
- Page 8 CARINA 28 DON`T FORGET TO TIGHTEN THE LOGS AFTER EVERY 3-4 ROWS. HITBLOCK 1 LG-1 1 LG-2 8/20...
- Page 9 CARINA 28 SLIDE THE WINDOW IN, ATTACH THE HANDLE. 9/20...
- Page 10 CARINA 28 INSTALL THE GABLES WITH LONG SCREWS TO THE WALL LOGS ON THE FRONT AND REAR WALLS. × 8 1 TL-1 A LG-1 A LG-2 B LG-4 A LG-3 A LG-4 1 LG-4 B LG-1 B LG-3 B LG-2...
- Page 11 CARINA 28 INSTALL THE ROOF PURLINS AND ROOF ELEMENTS 1, ATTACH THEM WITH SCREWS. × 6 11/20...
- Page 12 CARINA 28 PLACE THE FIRST ROOFBOARD FLUSH WITH OF THE PURLINS AND ATTACH WITH 10 SCREWS, 5 INTO EACH NEXT. × 185 12/20...
- Page 13 CARINA 28 FOR THE FASCIA TRIMS INSERT SCREWS AFTER EVERY 0,5 METERS. × 24 13/20...
- Page 14 CARINA 28 EAVES EDGES GO ON TOP OF THE ROOFING*. *(NOT INCLUDED) × 28 14/20...
- Page 15 CARINA 28 20 SCREWS INTO THE FIRST FLOORBOARD, INTO EACH NEXT, SAW THE LAST BOARD TO MAKE IT FIT. × 270 15/20...
- Page 16 CARINA 28 SAW THE BASEBOARDS AND ATTACH WITH NAILS EVERY 0,5 METERS. × 30 16/20...
- Page 17 CARINA 28 DRILL THROUGH THE WALL, HOLE MUST BE AT THE BOTTOM OF THE OVAL, ATTACH WITH BOLT. × 12 WINDBOARD 17/20...
- Page 18 CARINA 28 IF DOOR IS TILTED, PUSH THE DOOR FRAME SO THAT ALL CORNERS ARE 90º. 90º 90º 18/20...
- Page 19 CARINA 28 DOORS ARE IN DIFFERENT HEIGHTS OR THERE IS A GAP BETWEEN THEM, ADJUST 3 SCREWS ON DOOR HINGES. 19/20...
- Page 20 CARINA 28 WHEN THE HOUSE IS ASSEMBLED, YOU SHOULD COVER THE TIMBER WITH WOOD PROTECTIVE SEAL, PAINT OR STAIN AS SOON AS POSSIBLE TO AVOID DETERIORATION TO THE WOOD. 20/20 100%...
