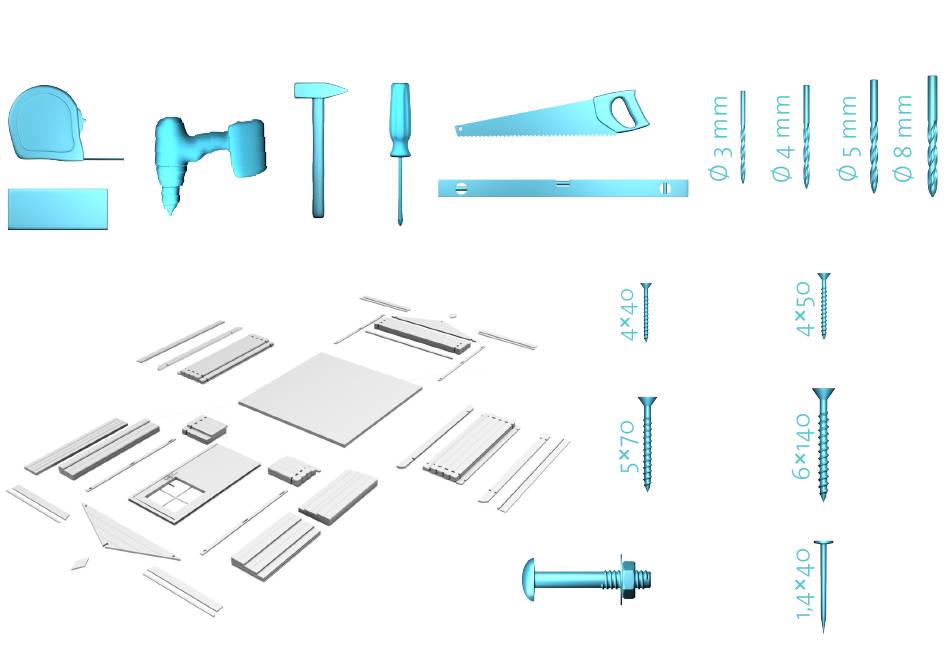

- Page 1 ANNA 28 PREPARE THE GROUND, UNWRAP THE PACKAGE, LAY OUT THE COMPONENTS, FIND THE TOOLS. × 190 × 60 × 10 × 25 M8×60 × 12 × 20 1/18...
- Page 2 ANNA 28 LAY OUT THE FOUNDATION BEAMS AB=CD SQUARE IT BY MEASURING FROM CORNER TO CORNER. 0° MAKE SURE THAT THE FOUNDATION IS INSTALLED ON A LEVEL SURFACE. CHECKING ALL DIRECTIONS, 2/18 INCLUDING CORNER TO CORNER.
- Page 3 ANNA 28 LAY OUT THE BOTTOM LOGS, ATTACH TO THE FOUNDATION. × 3 × 8 2 BL-1 5×70 ALG-1 6×140 BLG-1 THE WALL LOGS WILL HANG OVER 1 BL-1 THE FOUNDATION BEAMS 1 BL-1 APPROXIMATELY 5MM. THIS OVERHANG 3/18 IS DESIGNED AS A RAIN DRIP.
- Page 4 ANNA 28 ATTACH THE FIRST ROW OF WALL LOGS INTO THE BOTTOM LOGS WITH SCREWS. × 4 × 3 6×140 2 LG-5 5×70 1 LG-2 1 LG-2 4/18...
- Page 5 ANNA 28 AFTER PLACING 3-4 ROWS OF WALL LOGS, TAP EACH WALL LOG IN PLACE USING A HAMMER AND THE HITBLOCK PROVIDED, TO TIGHTEN THE LOGS. HITBLOCK 5/18...
- Page 6 ANNA 28 SLIDE THE DOOR IN, ATTACH THE HANDLE. BD1R LOGS IN PLACE 6/18...
- Page 7 ANNA 28 INSTALL THE GABLES WITH LONG SCREWS TO THE WALL LOGS ON THE FRONT AND REAR WALLS. × 4 GABLE A TL-1 B TL-1 GABLE 7/18...
- Page 8 ANNA 28 INSTALL THE ROOF PURLINS AND ATTACH THEM WITH SCREWS. × 2 8/18...
- Page 9 ANNA 28 PLACE THE FIRST ROOFBOARD FLUSH WITH THE END OF THE PURLINS AND ATTACH WITH 4 SCREWS, 2 INTO EACH NEXT, SAW THE LAST BOARD TO MAKE IT FIT. × 92 9/18...
- Page 10 ANNA 28 INSERT FOR THE FASCIA TRIMS SCREWS AFTER EVERY 0,5 METERS. × 20 10/18...
- Page 11 ANNA 28 EAVES EDGES GO ON TOP OF THE ROOFING*. *(NOT INCLUDED) × 28 11/18...
- Page 12 ANNA 28 ATTACH ROMBS WITH SCREWS. × 4 ROMB 12/18...
- Page 13 ANNA 28 8 SCREWS INTO THE FIRST FLOORBOARD, INTO EACH NEXT, SAW THE LAST BOARD TO MAKE IT FIT. × 72 13/18...
- Page 14 ANNA 28 SAW THE BASEBOARDS AND ATTACH WITH NAILS EVERY 0,5 METERS. × 20 14/18...
- Page 15 ANNA 28 DRILL THROUGH THE WALL, HOLE MUST BE AT THE BOTTOM OF THE OVAL, ATTACH WITH BOLT. × 12 WINDBOARD 15/18...
- Page 16 ANNA 28 IF DOOR IS TILTED, PUSH THE DOOR FRAME SO THAT ALL CORNERS ARE 90º. 90º 90º 16/18...
- Page 17 ANNA 28 DOOR IS NOT ON THE RIGHT HEIGHT, ADJUST 3 SCREWS ON DOOR HINGES. 17/18...
- Page 18 ANNA 28 WHEN THE HOUSE IS ASSEMBLED, YOU SHOULD COVER THE TIMBER WITH WOOD PROTECTIVE SEAL, PAINT OR STAIN AS SOON AS POSSIBLE TO AVOID DETERIORATION TO THE WOOD. 18/18 100%...
