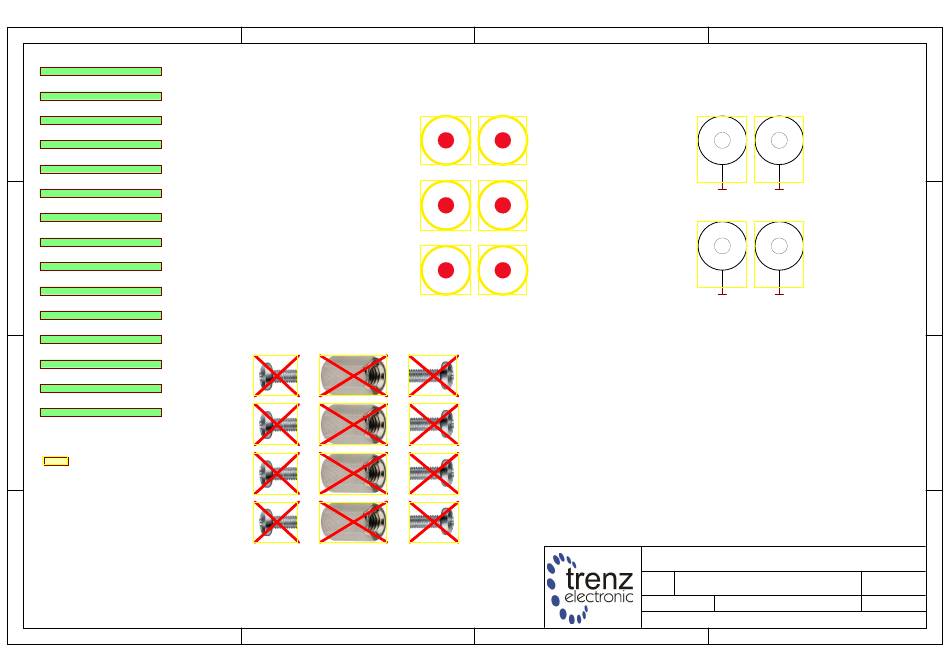

Trenz Electronic TE0712 200 2C10 Series Schematics
  1. Manuals
  2. Brands
  3. Trenz Electronic Manuals
  4. Control Unit
  5. TE0712 200 2C10 Series
  6. Schematics

Trenz Electronic TE0712 200 2C10 Series Schematics

Hide thumbs Also See for TE0712 200 2C10 Series:

Advertisement

Quick Links

Download this manual
1
U_B2B-Connectors
B2B-Connectors.SchDoc
U_B13
B13.SchDoc
U_B14
A
B14.SchDoc
U_B15
B15.SchDoc
U_B16
B16.SchDoc
U_B34
B34.SchDoc
U_FPGA-MGT
FPGA-MGT.SchDoc
U_FPGA-CFG
FPGA-CFG.SchDoc
U_FPGA-PWR
FPGA-PWR.SchDoc
B
U_Clock
Clock.SchDoc
U_DDR3-RAM
DDR3-RAM.SchDoc
U_ETHERNET
ETHERNET.SchDoc
U_CPLD
CPLD.SchDoc
U_PWR1
PWR1.SchDoc
U_PWR2
PWR2.SchDoc
C
Serial
Serial
Serialnumber 6,3 x 6.3mm
D
1
2
Top of Board
Screw M3x4
Distance Holder M3x8
Screw M3x6
Screw M3x4
Distance Holder M3x8
Screw M3x6
Screw M3x4
Distance Holder M3x8
Screw M3x6
Screw M3x4
Distance Holder M3x8
Screw M3x6
2
3
FIDU-DOT - small
FIDU-DOT - small
PM1
PM2
FIDU-DOT - small
FIDU-DOT - small
PM3
PM4
FIDU-DOT - small
FIDU-DOT - small
PM5
PM6
3
4
Mount.Hole 3.2mm
Mount.Hole 3.2mm
GND
GND
Mount.Hole 3.2mm
Mount.Hole 3.2mm
GND
GND
Title:
TE0712
Number:
TE0712
A4
200_2C10
Date:
2015-12-09
Copyright:
Trenz Electronic GmbH
TE0712.SchDoc
Filename:
4
A
B
C
D
Rev.
02
Page1
of
16
