- Page 1 TE0714 TRM Revision v.55 Exported on 2019-03-04 Online version of this document: https://wiki.trenz-electronic.de/display/PD/TE0714+TRM...
-
Page 2: Table Of Contents
Recommended Operating Conditions ........................ 15 Physical Dimensions ............................15 Variants Currently In Production ........................17 Revision History ..............................18 11.1 Hardware Revision History ..........................18 11.2 Document Change History ..........................18 Disclaimer................................21 Copyright © 2019 Trenz Electronic GmbH 2 of 22 http://www.trenz-electronic.de... - Page 3 Data privacy ................................. 21 12.2 Document Warranty............................. 21 12.3 Limitation of Liability............................21 12.4 Copyright Notice ..............................21 12.5 Technology Licenses............................21 12.6 Environmental Protection ........................... 21 12.7 REACH, RoHS and WEEE ............................21 Copyright © 2019 Trenz Electronic GmbH 3 of 22 http://www.trenz-electronic.de...
-
Page 4: Table Of Figures
2 Table of Figures Figure 1: TE0714 block diagram ............................7 Figure 2: TE0714 main components..........................7 Figure 3: Power Distribution ............................11 Figure 4: Power-On Sequency ............................12 Figure 5: Physical dimensions drawing...........................16 Copyright © 2019 Trenz Electronic GmbH 4 of 22 http://www.trenz-electronic.de... -
Page 5: Table Of Tables
Table 11: Speed rating..............................13 Table 12: Module absolute maximum ratings........................15 Table 13: Recommended Operating Conditions ......................15 Table 14: Trenz Electronic Shop Overview ........................17 Table 15: Hardware Revision History ..........................18 Table 16: Document change history ..........................18 Copyright © 2019 Trenz Electronic GmbH 5 of 22 http://www.trenz-electronic.de... -
Page 6: Overview

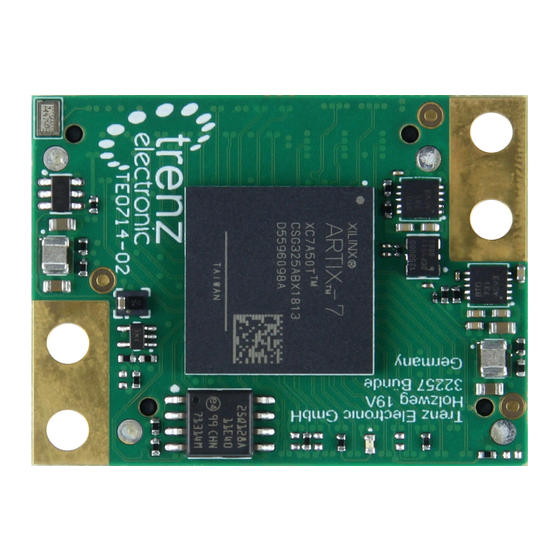

4 Overview The Trenz Electronic TE0714 is an industrial-grade SoM (System on Module) based on Xilinx Artix-7, 16 MByte Flash memory and powerful switching mode power supplies for all on-board voltages. A large number of configurable I/ O's is provided via rugged high-speed stacking strips. TE0714 is the smallest module with transceiver (3 x 4 cm). -
Page 7: Main Components
10. Step-down DC-DC converter (1.0V), U1 11. PFET load switch with configurable slew rate (3.3V), Q1 12. Low-power step-down DC-DC converter (1.8V), U3 13. Voltage detector for circuit initialization and timing supervision, U23 Copyright © 2019 Trenz Electronic GmbH 7 of 22 http://www.trenz-electronic.de... -
Page 8: Initial Delivery State
As those pins have SPI RESET function when Quad mode is not enabled, it is mandatory to either add pull-ups on user baseboard or program the Quad Enable bit in Flash nonvolatile status register. Copyright © 2019 Trenz Electronic GmbH 8 of 22 http://www.trenz-electronic.de... -
Page 9: Signals, Interfaces And Pins
VCCIO15 Supplied by the baseboard. VCCIO34 Supplied by the baseboard. MGT_AVC 4 x GTP lanes. MGT_AVT Table 4: B2B I/Os Please refer to the Pin-out tables page for additional information. https://shop.trenz-electronic.de/de/Download/?path=Trenz_Electronic/Pinout Copyright © 2019 Trenz Electronic GmbH 9 of 22 http://www.trenz-electronic.de... -
Page 10: On-Board Peripherals
25 MHz Frequency depends on the module variant. Output is compatible to 3.3V and 1.8V I/O standard of the FPGA bank. 125MHz Frequency depends on the module variant Table 6: Clock signals. Copyright © 2019 Trenz Electronic GmbH 10 of 22 http://www.trenz-electronic.de... -
Page 11: Power And Power-On Sequence
7.2 Power Distribution Dependencies Figure 3: Power Distribution 7.3 Power-On Sequence There is no specific or special power-on sequence, single power source is needed as VIN, rest of the sequence is automatic. Copyright © 2019 Trenz Electronic GmbH 11 of 22 http://www.trenz-electronic.de... -
Page 12: Power Rails
0 Config and B14 1.8V or 3.3V Depends on module variant User Supplied from baseboard via B2B connector, max 3.3V User Supplied from baseboard via B2B connector, max 3.3V Table 9: Bank Voltages Copyright © 2019 Trenz Electronic GmbH 12 of 22 http://www.trenz-electronic.de... -
Page 13: Board To Board Connectors
7.5 GHz / 15 Gbps 12 mm, Differential 6.5 GHz / 13 Gbps 5 mm, Single-Ended 11.5 GHz / 23 Gbps 5 mm, Differential 7.0 GHz / 14 Gbps Table 11: Speed rating. https://www.samtec.com/technical-specifications/Default.aspx?SeriesMaster=LSHM Copyright © 2019 Trenz Electronic GmbH 13 of 22 http://www.trenz-electronic.de... -
Page 14: Current Rating
Current rating of Samtec Razor Beam™ LSHM B2B connectors is 2.0A per pin (2 adjacent pins powered). 8.3 Connector Mechanical Ratings • Shock: 100G, 6 ms Sine • Vibration: 7.5G random, 2 hours per axis, 3 axes total Copyright © 2019 Trenz Electronic GmbH 14 of 22 http://www.trenz-electronic.de... -
Page 15: Technical Specifications
• Module size: 40 mm × 30 mm. Please download the assembly diagram for exact numbers. • Mating height with standard connectors: 8 mm https://www.xilinx.com/support/documentation/data_sheets/ds181_Artix_7_Data_Sheet.pdf https://www.xilinx.com/support/documentation/data_sheets/ds181_Artix_7_Data_Sheet.pdf https://www.xilinx.com/support/documentation/data_sheets/ds181_Artix_7_Data_Sheet.pdf https://www.xilinx.com/support/documentation/data_sheets/ds181_Artix_7_Data_Sheet.pdf https://www.xilinx.com/support/documentation/data_sheets/ds181_Artix_7_Data_Sheet.pdf https://www.xilinx.com/support/documentation/data_sheets/ds181_Artix_7_Data_Sheet.pdf https://www.xilinx.com/support/documentation/data_sheets/ds181_Artix_7_Data_Sheet.pdf Copyright © 2019 Trenz Electronic GmbH 15 of 22 http://www.trenz-electronic.de... -
Page 16: Figure 5: Physical Dimensions Drawing
• Highest part on PCB: approximately 2.5 mm. Please download the step model for exact numbers. All dimensions are shown in mm. Additional sketches, drawings and schematics can be found here Figure 5: Physical dimensions drawing https://shop.trenz-electronic.de/de/Download/?path=Trenz_Electronic/TE0714 Copyright © 2019 Trenz Electronic GmbH 16 of 22 http://www.trenz-electronic.de... -
Page 17: Variants Currently In Production
Trenz shop TE0714 overview page English page German page Table 14: Trenz Electronic Shop Overview On REV 01 JM2 Pin 54 was connected to GND. When R27 is not populated, REV 02 is backwards compatible to REV 01. When R27 is set, check your baseboard to not connect this pin to GND. For all new baseboards JM2.54 should be used as VCCIO output (it will then be 1.8V or 3.3V depending the voltage settings on the... -
Page 18: Revision History
• Updated to TRM version 2.2 2019-01-07 v.50 John Hartfiel • Style modifications • Updated to TRM version 2.1 2018-09-19 v.48 Martin Rohrmüller • Updated B2B Connectors • Style modifications https://wiki.trenz-electronic.de/display/PD/PCN-20160815+TE0714-01+to+TE0714-02+hardware+revision+upgrade https://shop.trenz-electronic.de/Download/?path=Trenz_Electronic/Modules_and_Module_Carriers/3x4/TE0714/REV02 https://shop.trenz-electronic.de/de/Download/?path=Trenz_Electronic/TE0714/REV01 https://wiki.trenz-electronic.de/display/~j.hartfiel Copyright © 2019 Trenz Electronic GmbH 18 of 22 http://www.trenz-electronic.de... - Page 19 Thorsten Trenz, Emmanuel Vassilakis • Initial version. 2016-06-01 Antti Lukats Ali Naseri Antti Lukats Emmanuel Vassilakis John Hartfiel Kumann Kerstin Möller Martin Rohrmüller Susanne https://wiki.trenz-electronic.de/display/~a.naseri https://wiki.trenz-electronic.de/display/~antti.lukats https://wiki.trenz-electronic.de/display/~e.vassilakis https://wiki.trenz-electronic.de/display/~j.hartfiel https://wiki.trenz-electronic.de/display/~j.kumann https://wiki.trenz-electronic.de/display/~k.moeller https://wiki.trenz-electronic.de/display/~m.rohrmueller Copyright © 2019 Trenz Electronic GmbH 19 of 22 http://www.trenz-electronic.de...
- Page 20 TE0714 TRM Revision: v.55 Date Revision Authors Description Kunath Thorsten Trenz Table 16: Document change history https://wiki.trenz-electronic.de/display/~s.kunath https://wiki.trenz-electronic.de/display/~tht Copyright © 2019 Trenz Electronic GmbH 20 of 22 http://www.trenz-electronic.de...
-
Page 21: Disclaimer
12.3 Limitation of Liability In no event will Trenz Electronic, its suppliers, or other third parties mentioned in this document be liable for any damages whatsoever (including, without limitation, those resulting from lost profits, lost data or business interruption) arising out of the use, inability to use, or the results of use of this document, any documents linked to this document, or the materials or information contained at any or all such documents. - Page 22 TE0714 TRM Revision: v.55 Trenz Electronic is a manufacturer and a distributor of electronic products. It is therefore a so called downstream user in the sense of REACH . The products we supply to you are solely non-chemical products (goods). Moreover and under normal and reasonably foreseeable circumstances of application, the goods supplied to you shall not release any substance.
