- Page 1 900MHz / 2.4GHz P/N 5938 User’s Manual Rev 1.0 © 2020 City Theatrical, Inc. Multiverse products are covered by U.S. Patents #7,432,803 B2, #10,129,964 B1, and other patents pending. The 900MHz band is licensed for use in North America only.
-
Page 2: Table Of Contents
Table of Contents Compliance ............................3 Safety Notices ..........................3 Introduction ............................4 5938 Multiverse Studio Kit Features ..................4 Getting Started ........................4 Charging in the Case ......................5 Charging Outside the Case .....................5 SHoW IDs ..........................6 Specifications ..........................7 What’s Included ..........................8 List of Tables Table 1: Selecting Your Multiverse SHoW ID .................6 Table 2: Physical Characteristics ....................7 Table 3: Included Item Descriptions and Part Numbers ..............8... -
Page 3: Compliance
Compliance FCC Compliance Statement (United States) This device complies with Part 15 of the Federal Communications Commission (FCC) Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Introduction
For additional information, consult the product manuals of the individual products. They can be found on the USB flash drive in the Multiverse Studio Kit, or on the City Theatrical website on each individual product page. Page 4 of 9... -
Page 5: Charging In The Case
Charging in The Charging Case Multiverse Studio Kit 900MHz/2.4GHz utilizes a contactless charging system. Individual chargers and USB cables are also included to enable charging individual units outside the case. Multiverse Studio Receivers have a run time of 20 hours using the default settings. The setting which most influences run time is the backlight brightness. -
Page 6: Table 1: Selecting Your Multiverse Show Id
SHoW ID Table 1: Selecting Your Multiverse SHoW ID 24 3 0 2 Multiverse SHoW ID Example: Prefix Data Rate Band Hop Pattern 9 900MHz Multiverse Faster data rates provide more Specifies which sections If multiple wireless DMX universes. Slower data of the wireless band the systems need to operate rates travel longer distances and... -
Page 7: Show Ids
Specifications Table 2: Physical Characteristics Product Information Product Name Multiverse Studio Kit (900MHz/2.4GHz) Part Number 5938 Maximum Concurrent Universes 1 – 9 2400 – 2480 MHz Frequency Range: 902 – 928 MHz Included in the Kit P/N 5904 Six Multiverse Studio Receivers, 900MHz/2.4GHz P/N 5910 One Multiverse Transmitter, 900MHz/2.4GHz with mounting bracket (for multi universe broadcasts) -
Page 8: What's Included

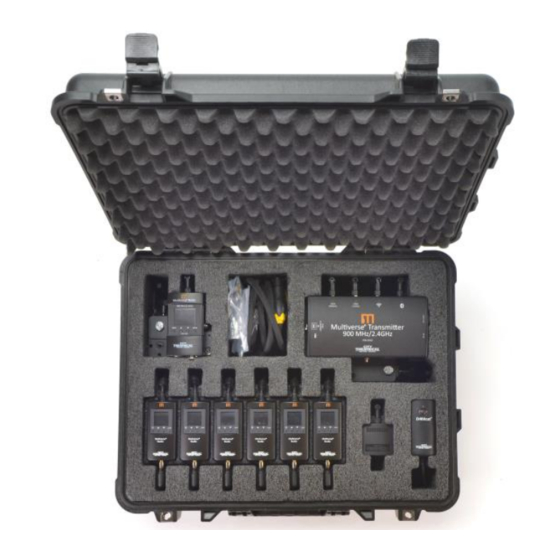

What’s Included 6-7-8 Figure 1: What's Included Table 3: Included Item Descriptions and Part Numbers Label in Item Description Qty. Figure 5904 Multiverse Studio Receivers, 900MHz/2.4GHz 5910 Multiverse Transmitter, 900MHz/2.4GHz (for single or multi universe broadcasts) 5902 Multiverse Node, 900MHz/2.4GHz (for single universe broadcasts) ®... -
Page 9: Table 4: Show Dmx Neo Show Ids
Face Panel Figure 2: Face & Back Panel Table 4: Commonly used SHoW DMX Neo SHoW IDs for Use with the 2.4GHz Radio in Single Universe Systems SHoW DMX Neo SHoW ID Broadcast Location Adaptive hopping Full bandwidth hopping Low band hopping Mid band hopping High band hopping Max band hopping...
