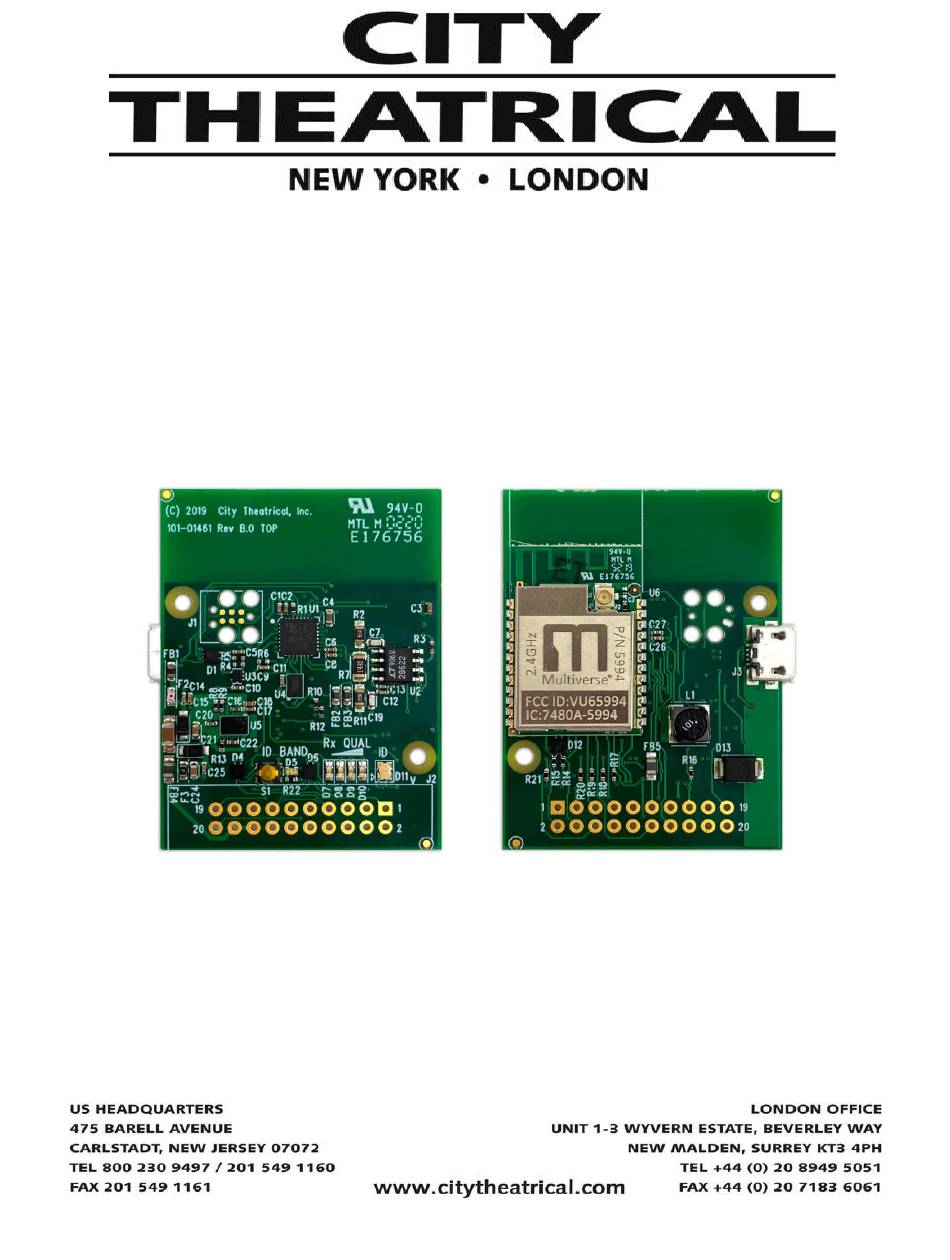

- Page 1 Multiverse Receiver Card, 2.4GHz P/N 5906 User’s Manual Rev 1.1 © 2022 City Theatrical, Inc. ® Multiverse Transceivers are covered by U.S. Patent # 7,432,803 and other U.S and foreign patents pending. Made in USA...
-
Page 2: Table Of Contents
5906 Multiverse Receiver Card, 2.4GHz Table of Contents Foreword ........................3 Introduction ........................3 Specifications ......................... 5 Configuration for Wireless DMX (Basic Mode) ............... 6 Configuration for 0-10V or PWM (Advanced Mode) ............. 11 Troubleshooting ......................17 Compliance Requirements ................... 19 List of Tables Table 1: Part Numbers ...................... -
Page 3: Foreword
City Theatrical’s Multiverse Receiver Card, 2.4GHz (P/N 5906) can be used by anyone to implement wireless DMX/RDM into their projects or equipment in a simple way. 5906 Multiverse Receiver Cards are full Multiverse receivers for the 2.4GHz band (P/N 5907 is for the 900MHz band) without the housing, XLR connectors, and user interface as used in wireless DMX receiving products like Multiverse Node and Multiverse SHoW Baby. -
Page 4: Figure 1: Top And Bottom Detail With Basic Signal Pinout

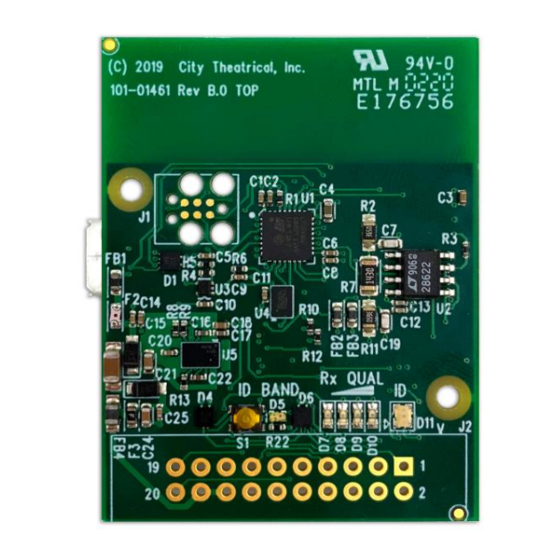

5906 Multiverse Receiver Card, 2.4GHz 2.3 Product Detail Product is shown larger than actual size. Top: Bottom: Multiverse Radio, 2.4GHz (P/N 5994) Band Signal Indicator Quality Light Indicator Lights SHoW ID SHoW ID/ Selector Status Switch Indicator Light Connection Dimensions (with internal antenna)*: points 2.0"... -
Page 5: Specifications
5906 Multiverse Receiver Card, 2.4GHz Specifications Table 2: Physical Characteristics Specifications Description Frequency 2.4GHz Universe(s) Size (with internal antenna) 2.0" (50mm) L x 1.5" (38mm) W x 0.25" (6.4mm) H Antenna Internal/External Construction PCB assembly Power/Data Connector 20-Pin 2x10 0.100-inch header, male... -
Page 6: Configuration For Wireless Dmx (Basic Mode)
The four signal quality lights will flash in unison to show the completion of the reset. Factory defaults as seen on the City Theatrical USB Configurator program are seen below. These settings are found on the Basic Info tab and Manufacturer’s Settings tab in RDM. -
Page 7: Table 3: Band Led Colors
▪ 0-10V Output: Disabled 4.4 Band LED/SHoW ID Selector Switch The 5906 can receive in either 2.4GHz SHoW DMX Neo mode or 2.4GHz Multiverse mode (for Multiverse 900MHz, use P/N 5907). The band LED indicates whether the receiver card is currently listening to a Multiverse SHoW ID (green) or a SHoW DMX SHoW ID (yellow). -
Page 8: Table 5: Pinout Descriptions In Basic Mode
5906 Multiverse Receiver Card, 2.4GHz 4.6 Rx Quality LEDs There are four LEDs in this group that represent the quality of the wireless signal received. All four LEDs will be lit when the receive quality is at is maximum. Orient the antenna of the device to produce as many lit LEDs as possible. -
Page 9: Figure 2: Multiverse Show Id
5906 Multiverse Receiver Card, 2.4GHz 24 3 0 2 Multiverse SHoW ID Example: Prefix Data Rate Band Hop Pattern 0 (or blank) Neo mode at Faster data rates Specifies which sections If multiple wireless provide more DMX of the wireless band the systems need to operate 2.4GHz The rest of the show... -
Page 10: Table 6: Show Ids And Show Keys
5906 Multiverse Receiver Card, 2.4GHz 4.7 SHoW Key The SHoW Key setting allows a user to enter a key to privatize their SHoW ID from another system on the same SHoW ID. SHoW IDs and SHoW Keys need to match in order for receivers and transmitters to talk to each other. -
Page 11: Configuration For 0-10V Or Pwm (Advanced Mode)
5906 Multiverse Receiver Card, 2.4GHz 5 Configuration for 0-10V or PWM Output (Advanced Mode) Advanced mode allows the use of 0-10V and PWM outputs, setting the starting DMX addresses for those outputs, as well as relocating LED indicators in remote positions. - Page 12 See Table 8 for channel assignments. The DMX address is changed using RDM or the City Theatrical USB Configurator program. The PWM feature is configurable using the USB configurator only.
- Page 13 LED. The sink current for the external LED should not exceed 10mA. To use the pin as a PWM control output, use the City Theatrical USB Configurator program to enable the feature and connect pin to the control input of the host product. See Table 8 for channel assignments.
-
Page 14: Table 8: Dmx Address Map
This is the 0-10V output when enabled. See Table 8 for channel assignments. The DMX address is changed using RDM or the City Theatrical Configurator program . This output can sink or source current, thus it can be used in both theatrical and architectural installations. Maximum current should not exceed 15mA. -
Page 15: Table 10: Physical Characteristics (In Advanced Mode)
5906 Multiverse Receiver Card, 2.4GHz Table 10: Physical Characteristics UNIT Size 50 x 38 2x10 0.100” PCB land pattern I/O Interface Antenna Connector U.FL/IPEX Packaging Individual Anti-Static bag Table 11: Recommended Operating Conditions UNIT Ambient Temperature °C 0-10V Sink/Source Current... -
Page 16: Figure 3: 590X Dimensions
5906 Multiverse Receiver Card, 2.4GHz 5.5 Physical Drawing All dimensions are in mm. Figure 3: 590X Dimensions 2.3mm hole... -
Page 17: Troubleshooting
5906 Multiverse Receiver Card, 2.4GHz Troubleshooting Table 14: Troubleshooting Guide Symptom Solution(s) Check pinout to confirm proper power orientation. Use a multimeter to check for short circuits or voltage issues in power line. Unit does not power up. Confirm input voltage meets required specification. - Page 18 If you need to drive large loads reach out to City Theatrical for example setups. Try additional USB cables. Some USB micro cables are only built for power delivery.
-
Page 19: Compliance Requirements
The antenna used for this transmitter must not be co- located or operated in conjunction with any other antenna or transmitter. Modification warning: Caution - changes or modifications to this equipment, not expressly approved by City Theatrical, Inc. could void the user’s authority to operate the equipment. - Page 20 7.6 CE Mark Conformity City Theatrical Inc. declares that this product conforms to the specifications listed in this manual, following the provisions of the European RED Directive 2014/53/EU, 2014/30/EU. City Theatrical Inc. vakuuttaa täten että dieses produkt tyyppinen laite on direktiivin 2014/53/EU, 2014/30/EU oleellisten vaatimusten ja sitä...
-
Page 21: Table 15: Fcc Id Label Requirement
European RED directive 2014/53/EU. For more details on legal combinations of power levels and antennas, contact City Theatrical Inc. Do not use this product near water, for example, in a wet basement or near a swimming pool. -
Page 22: Table 17: Approved Antennas
5906 Multiverse Receiver Card, 2.4GHz 7.8 Approved Antennas To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that required for successful communication. - Page 23 City Theatrical issues firmware updates occasionally to add features or to fix bugs. The firmware version is found on the Info section of the 5906. Firmware updates are found on the CTI website on the 5906 Downloads tab. Update instructions and the firmware files themselves are found in that download.
