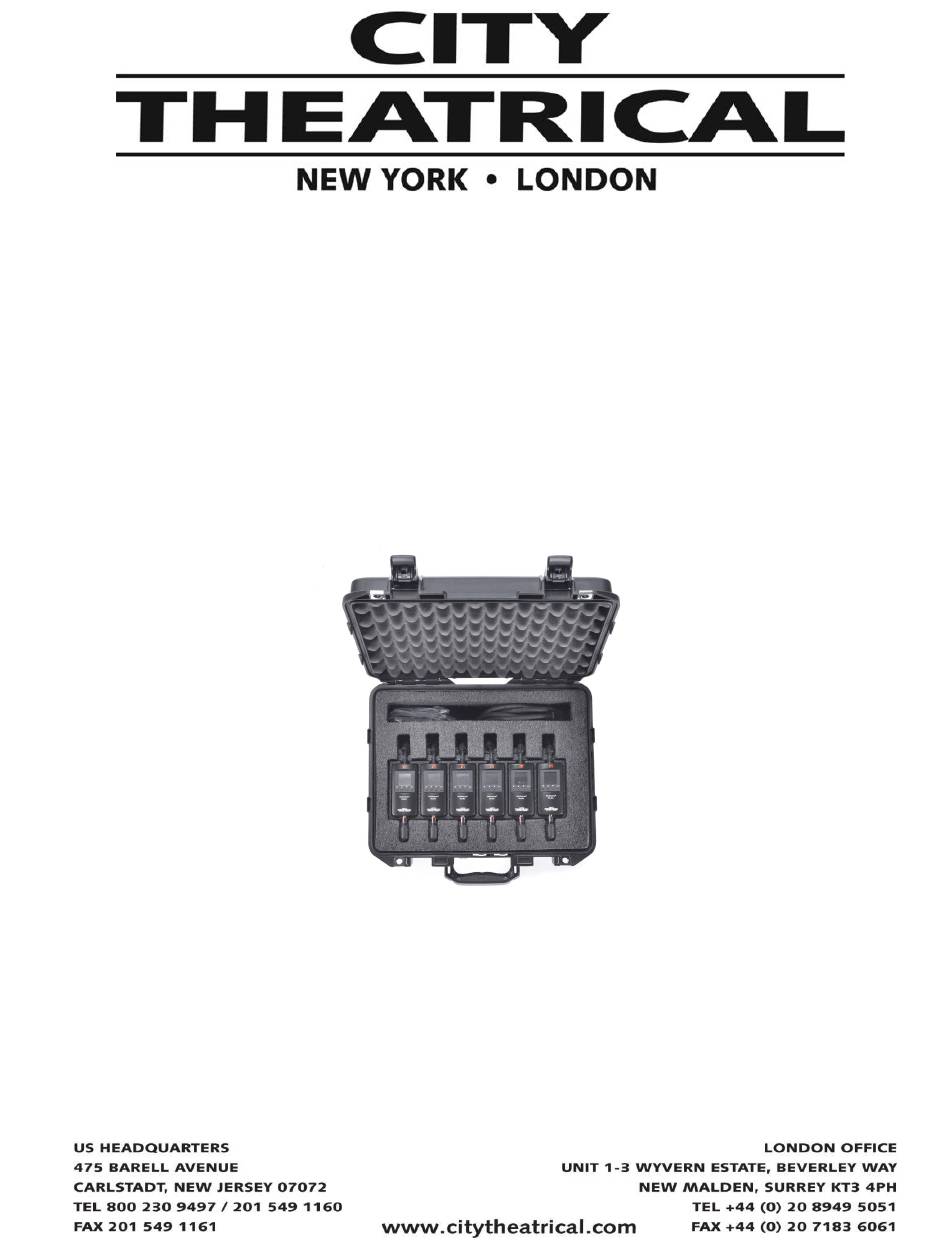

- Page 1 900MHz / 2.4GHz P/N 5940 User’s Manual Rev 1.0 © 2020 City Theatrical, Inc. Multiverse Transmitters are covered by U.S. Patents #7,432,803 B2, #10,129,964 B1, and other patents pending. The 900MHz band is licensed for use in North America only.
-
Page 2: Table Of Contents
Table of Contents Compliance ............................3 Safety Notices ..........................3 Introduction ............................4 Getting Started ........................4 Charging in the Case ......................4 Charging Outside the Case ....................5 SHoW IDs ..........................5 Specifications ..........................6 What’s Included ..........................7 Charging ............................8 List of Tables Table 1: Selecting Your Multiverse SHoW ID .................5 Table 2: Physical Characteristics ....................6 Table 3: Included Item Descriptions and Part Numbers ..............7 Table 4: SHoW DMX Neo SHoW IDs .....................8... -
Page 3: Compliance
Compliance FCC Compliance Statement (United States) This device complies with Part 15 of the Federal Communications Commission (FCC) Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Introduction
For additional information, consult the product manuals of the individual products. They can be found on the USB flash drive in the 5938 Multiverse Studio Kit, or on the City Theatrical website on each individual product page. Charging in The Charging Case Multiverse Studio Add On Kit 900MHz/2.4GHz utilizes a contactless charging system. -
Page 5: Charging Outside The Case
To charge Multiverse Studio Receivers, plug the charging case into 100-240VAC power using the included power cord with PowerCON True 1 connector. Simply lay the Multiverse Studio Receivers onto the charging tray in their individual slots, making sure they are touching the bottom of the tray. -
Page 6: Show Ids
Specifications Table 2: Physical Characteristics Product Information Product Name Multiverse Studio Add On Kit (900MHz/2.4GHz) Part Number 5940 Maximum Concurrent Universes 1 – 9 2400 – 2480 MHz Frequency Range: 902 – 928 MHz Included in the Kit P/N 5904 Six Multiverse Studio Receivers, 900MHz/2.4GHz P/N 5987 Six USB-A to USB-C cable, 1m... -
Page 7: What's Included

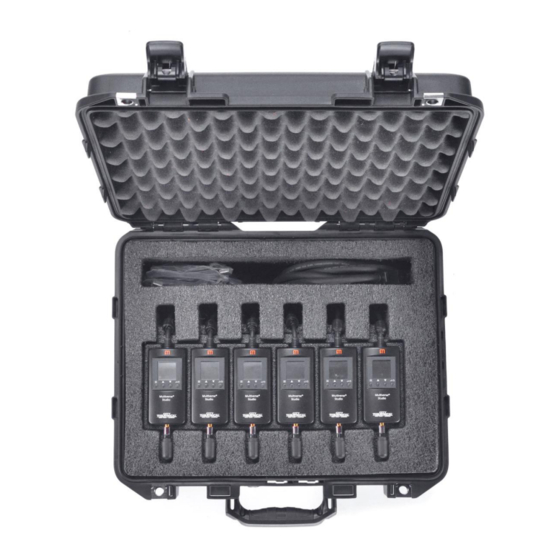

What’s Included Figure 1: What's Included Table 3: Included Item Descriptions and Part Numbers Label in Figure Item Description Quantity 5904 Multiverse Studio Receivers, 900MHz/2.4GHz 5987 USB-A to USB-C cable, 1m 5969 Power Supplies, 100-240VAC input, 5VDC output 5840 Power Cord, PowerCON True 1, 8’ long 5977 Pelican case with contactless charging Page 7 of 8... -
Page 8: Charging
Charging Figure 2: In-Case Charging Table 4: SHoW DMX Neo SHoW IDs for Use with the 2.4GHz Radio in Single Universe Systems SHoW DMX Neo SHoW ID Broadcast Location Adaptive hopping Full bandwidth hopping Low band hopping Mid band hopping High band hopping Max band hopping Page 8 of 8...
