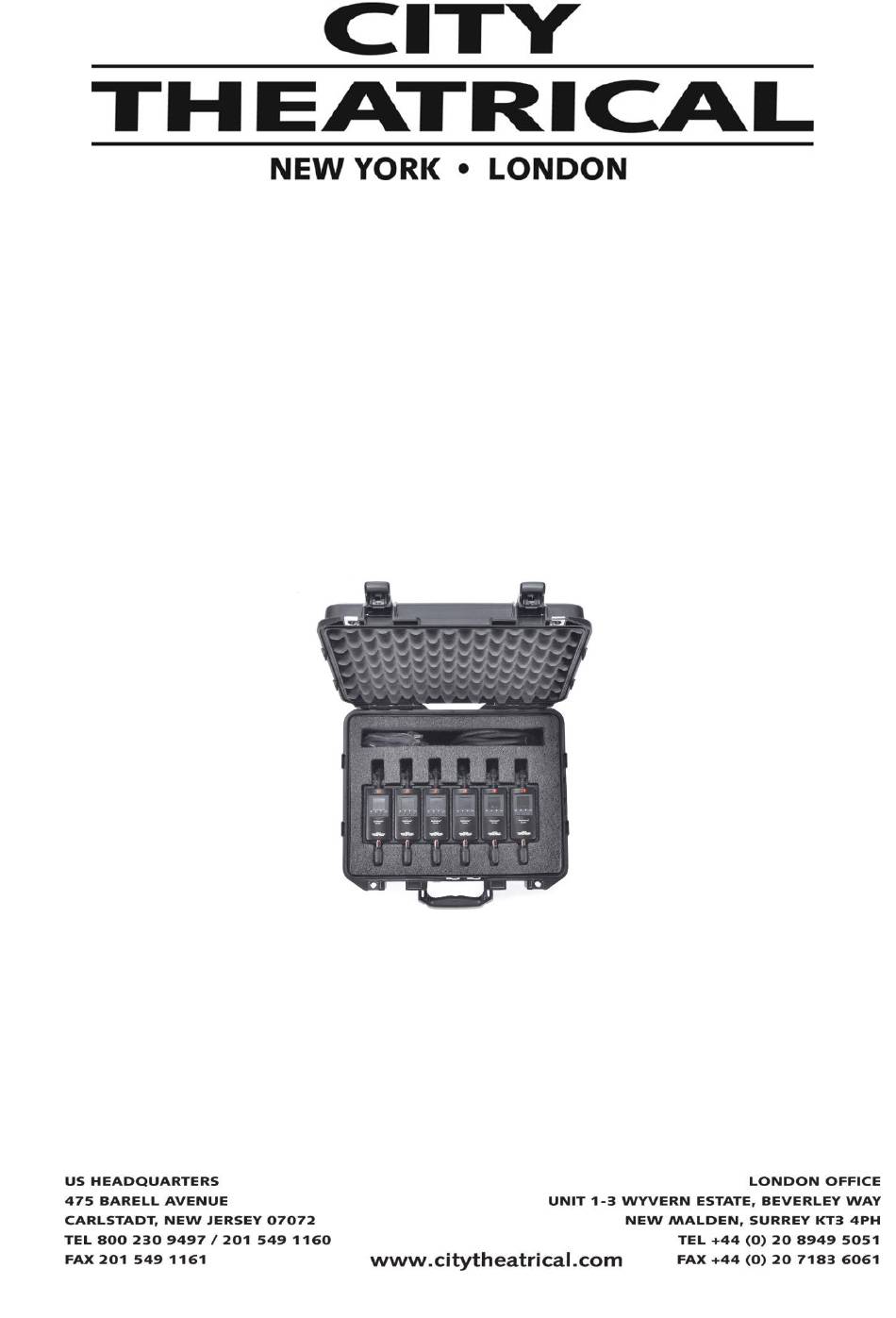

- Page 1 ® Multiverse Studio Add On Kit 2.4GHz P/N 5941 User’s Manual Rev 1.0 © 2020 City Theatrical, Inc. Multiverse Transmitters are covered by U.S. Patents #7,432,803 B2, #10,129,964 B1, and other patents pending. Made in USA...
- Page 2 Table of Contents Compliance ............................3 Safety Notices ..........................3 Introduction ............................4 Getting Started ........................4 Charging in the Case ......................4 Charging Outside the Case ....................5 SHoW IDs ..........................5 Specifications ..........................6 What’s Included ..........................7 Charging ............................8 List of Tables Table 1: Selecting Your Multiverse SHoW ID .................5 Table 2: Physical Characteristics ....................6 Table 3: Included Item Descriptions and Part Numbers ..............7 Table 4: SHoW DMX Neo SHoW IDs .....................8...
- Page 3 Compliance FCC Compliance Statement (United States) This device complies with Part 15 of the Federal Communications Commission (FCC) Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation.
- Page 4 For additional information, consult the product manuals of the individual products. They can be found on the USB flash drive in the 5939 Multiverse Studio Kit, or on the City Theatrical website on each individual product page. Charging in The Charging Case Multiverse Studio Add On Kit 2.4GHz utilizes a contactless charging system.
- Page 5 they are touching the bottom of the tray. The charging indicator light will be red to indicate that charging is in progress. If the Multiverse Studio Receiver is on while charging, the battery icon on the user interface will show a lightning bolt when touching the contactless charger, and the percentage of charge will be shown.
- Page 6 Specifications Table 2: Physical Characteristics Product Information Product Name Multiverse Studio Add On Kit 2.4GHz Part Number 5941 Maximum Concurrent Universes 1 – 10 2400 – 2480 MHz Frequency Range: Included in the Kit P/N 5905 Six Multiverse Studio Receivers, 2.4GHz P/N 5987 Six USB-A to USB-C cable, 1m P/N 5840...

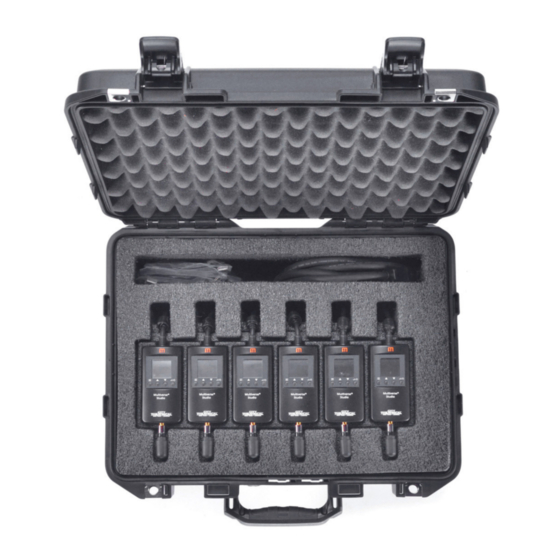

- Page 7 What’s Included Figure 1: What's Included Table 3: Included Item Descriptions and Part Numbers Label in Figure Item Description Quantity 5904 Multiverse Studio Receivers, 900MHz/2.4GHz 5987 USB-A to USB-C cable, 1m 5840 Power Cord, PowerCON True 1, 8’ long 5977 Pelican case with contactless charging USB flash drive with product manuals and other information...
- Page 8 Charging Figure 2: In-Case Charging Table 4: SHoW DMX Neo SHoW IDs for Use with the 2.4GHz Radio in Single Universe Systems SHoW DMX Neo SHoW ID Broadcast Location Adaptive hopping Full bandwidth hopping Low band hopping Mid band hopping High band hopping Max band hopping Page 8 of 8...
