PRODUCT NO.
BASE MODEL NO.
FAS255J2A6
FAS255J2A
MARKET
USA
WIRING DIAGRAM - # 309343701
OWNER'S GUIDE - # 309000825
ENERGY GUIDE - # 309367492
ELECTROLUX HOME PRODUCTS, INC
P.O.BOX 212378, AUGUSTA, GA 30917
FACTORY PARTS CATALOG
ROOM AIR CONDITIONER
SERIES
VOLTS
230V
Publication No.
5995372652
020522
©2002 Electrolux Home Products, Inc.
-EN/SERVICE /BLT
All rights reserved
345
BTU-COOLING
25000 BTU

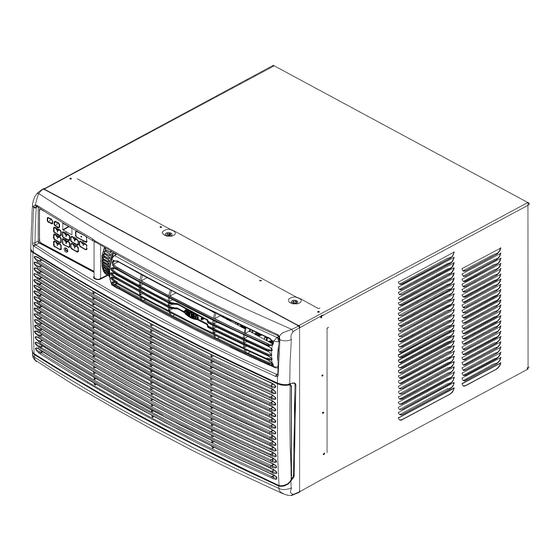

ROOM AIR CONDITIONER
Model No.
FAS255J2A
Advertisement
Table of Contents
Related Manuals for Frigidaire FAS255J2A6
Summary of Contents for Frigidaire FAS255J2A6
-
Page 1: Room Air Conditioner
PRODUCT NO. BASE MODEL NO. FAS255J2A6 FAS255J2A MARKET WIRING DIAGRAM - # 309343701 OWNER’S GUIDE - # 309000825 ENERGY GUIDE - # 309367492 ELECTROLUX HOME PRODUCTS, INC P.O.BOX 212378, AUGUSTA, GA 30917 FACTORY PARTS CATALOG ROOM AIR CONDITIONER SERIES VOLTS... -
Page 2: Cabinet Front And Wrapper
Publication No. FAS255J2A 5995372652 CABINET FRONT AND WRAPPER 05/02... - Page 3 POS. NO # = Fast-moving Parts * = Non-Illustrated Parts FAS255J2A CABINET FRONT AND WRAPPER PART NO DESCRIPTION 309632704 Cabinet,sleeve ,top louvers 5303212504 Seal,sleeve/shroud ,23.72" x 1.25" ,bottom 309632804 Grille,rear ,with rail 309631104 Link,vertical louver,w/handle 309630804 Louver,horizontal 309633305 Louver Assy,Incl-7,8,9 309631004 Louver,vertical 309631404...
- Page 4 Publication No. FAS255J2A 5995372652 CONTROLS 05/02...
- Page 5 POS. NO 13 # 61 # # = Fast-moving Parts * = Non-Illustrated Parts FAS255J2A CONTROLS PART NO DESCRIPTION 309630403 Control Box 5303015427 Screw,truss head ,8-18AB x 0.47 309623602 Bulkhead,control system 309111201 Grommet,wire protector 309331801 Clip,sensor retainer ,(2) 5304413782 Holder,thermistor ,w/seal 5304414108 Holder,thermistor ,without seal 5304426869...
-
Page 6: Air Handling Parts
Publication No. FAS255J2A 5995372652 AIR HANDLING PARTS 05/02... - Page 7 POS. NO # = Fast-moving Parts * = Non-Illustrated Parts FAS255J2A AIR HANDLING PARTS PART NO DESCRIPTION 5304422465 Fan Blade,with clamp 3202975 Screw,10-16AB x 0.72 ,square drive 309623201 Shroud,cond fan motor 5303212504 Seal,sleeve/shroud ,23.72" x 1.25" ,bottom 5303015311 Seal,fan housing ,19.56" x 0.50" ,lower 5303015427 Screw,truss head ,8-18AB x 0.47 309630608...
-
Page 8: Compressor Parts
Publication No. FAS255J2A 5995372652 COMPRESSOR PARTS 05/02... - Page 9 POS. NO 11 # 12 # 16 # 05/02 COMPRESSOR PARTS PART NO DESCRIPTION 309646901 Compressor,w/internal ovld 5303283877 Grommet,compressor mtg ,(3) 5308006948 Nut,compressor mtg ,(3) 309364305 Gasket,terminal cover 309364301 Cover,compr terminal 309364302 Nut,terminal cover 309634203 Evaporator 5303306719 Condenser 309623501 Tray,evap drip 309632912 Base,compressor mtg ,with studs 5304426870...
- Page 10 Publication No. FAS255J2A 5995372652 WINDOW MOUNTING PARTS 05/02...
- Page 11 POS. NO # = Fast-moving Parts * = Non-Illustrated Parts FAS255J2A WINDOW MOUNTING PARTS PART NO DESCRIPTION 5304407729 Seal,window stuffer 5303211056 Bracket,sash lock 5304419163 Extension,sliding frame ,LH cab front ,w/closure panel 5304409250 Seal,top rail/cab 5304414933 Retainer,accordian 5304414105 Bracket,support ,RH 3001815 Bracket,sill/unit sprt.
-
Page 12: Wiring Diagram
Publication No. FAS255J2A 5995372652 WIRING DIAGRAM 05/02...
