Fusion Signature CRGBW Installation Instructions

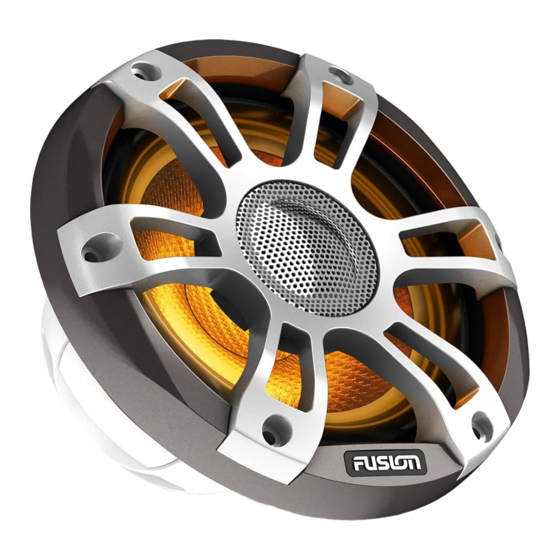

Signature Series CRGBW 10"
Subwoofer Installation Instructions

Important Safety Information

See the Important Safety and Product Information guide in the
product box for product warnings and other important
information.
This device must be installed according to these instructions.
Disconnect the vehicle's or vessel's power supply before
beginning to install this device.
Continuous exposure to sound pressure levels over 100 dBA
may cause permanent hearing loss. The volume is typically too
loud if you cannot hear people speaking around you. Limit the
amount of time you listen at high volume. If you experience
ringing in your ears or muffled speech, stop listening and have
your hearing checked.
To avoid possible personal injury, always wear safety goggles,
ear protection, and a dust mask when drilling, cutting, or
sanding.
When drilling or cutting, always check what is on the opposite
side of the surface to avoid damaging the vessel.
It is strongly recommended that you have your audio system
installed by a professional installer to ensure optimum
performance.
You must read all installation instructions before beginning the
installation. If you experience difficulty during the installation, go
to www.fusionentertainment.com
After installing the subwoofer, you should run the subwoofer at
low to medium volumes for the first few hours of use. This helps
to improve the overall sound by gradually loosening up the
moving components of the subwoofer, such as the cone, spider,
and surround

Tools Needed

• Electric drill
• Drill bit (size varies based on surface material)
• Phillips screwdriver
• Appropriate saw or utility knife to cut surface material
• 12 AWG (3.31 mm²) or larger speaker wire
• 6.3 mm female speaker spade connectors (recommended)
• 22 AWG (0.33 mm²) or larger wire for the LEDs (sports
models only)
• 4 mm male and female bullet connectors for the LED wires
(recommended, sports models only)
• Wire strippers (optional)
• Crimping tool (optional)
• Electrical tape (optional)
• Marine sealant (optional)
NOTE: For customized installations, additional tools and
materials may be needed.
January 2021
®
WARNING
WARNING
CAUTION
NOTICE
for product support.

Mounting Considerations

When mounting the subwoofer in an area exposed to weather or
water, you must mount the subwoofer on a vertical surface. If
you mount the subwoofer on a horizontal surface facing up,
water can gather in and around the subwoofer, causing damage
over time.
If you intend to mount the subwoofer outside the boat, you must
mount it in a location well above the waterline, where it is not
submerged or damaged by docks, pilings, or other pieces of
equipment. When mounted correctly, this subwoofer is rated for
protection from the front of the speaker. Water exposure and
damage to the rear of the subwoofer voids the warranty. This
includes situations when the subwoofer is mounted in a sealed
enclosure, especially if it is exposed to wash down. Using an
enclosure with a port or vent exposed to the outside
environment may allow water to collect and damage the
subwoofer.
You must turn off the audio system before making any
connections to the source unit, amplifier, or speakers. Failure to
do so could result in permanent damage to the audio system.
You should protect all terminals and connections from grounding
and from each other. Failure to do so could result in permanent
damage to the audio system and void the product warranty.
When selecting a mounting location for the subwoofer, observe
these considerations:
• You must select mounting locations that provide sufficient
clearance for the mounting depth of the subwoofer as
specified in the product specifications.
• You should select a flat mounting surface for the best seal.
• You should select a location where the surface material is
thick enough to support the weight of the subwoofer. It's
important to note that when in use, the subwoofer exerts a
pushing and pulling effect on the surface, so if the material is
thin, it can result in excess vibration and negatively affect the
sound quality.
• You should protect the speaker wires from sharp objects and
always use rubber grommets when wiring through panels.
• To avoid interference with a magnetic compass, you should
not mount the subwoofer closer to a compass than the
compass-safe distance value listed in the product
Specifications.
Selecting the correct mounting location optimizes the
performance of the subwoofer. Fusion
to perform in the widest possible range of mounting locations,
but the more you plan the installation, the better the speakers'
sound will be. For more information on subwoofer placement
and specifications, go to www.fusionentertainment.com.

Mounting the Subwoofer

Before mounting the subwoofer, you must choose a location
following the guidelines above.
1
Route the speaker wires (and LED wires, if applicable) from
the source to the speaker location.
2
Trim the template and make sure it fits in the selected
location.
3
Orient the template so the Fusion logo is level.
4
Secure the template to the selected location.
5
Using a jigsaw or rotary tool, cut the mounting surface along
the inside of the line on the template.
6
Place the subwoofer in the cutout to test the fit.
GUID-1E5A3A64-C6E3-4224-A482-F900FD0A5458 v2
NOTICE
speakers are designed
®
