- Page 1 ® XSpc RayStorm V3 Kit Copyright © XSPC 2012-2016...
-
Page 2: Kit Components

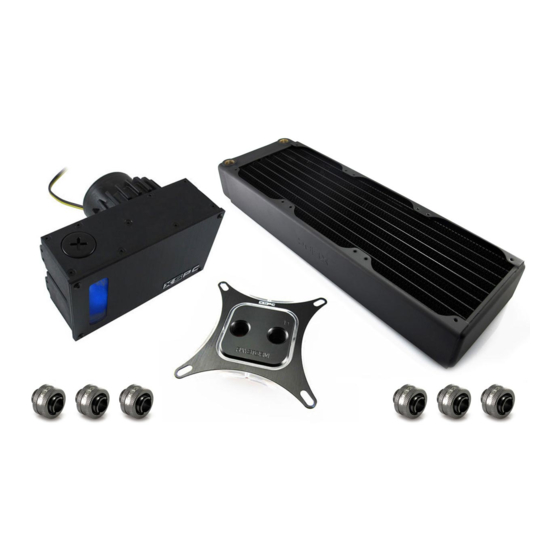

- D5 Vario, X2O 750 or X2O 420 Pump - Bay, Photon or Ion Reservoir - Copper/Brass Radiator (See Box) - G1/4” Fittings (Black Chrome) x6 - XSPC 1650rpm 120mm or 1200rpm 140mm Fans - Fan Grills (Black) - Socket 1366 and 115X Backplates - External Radiator Brackets... -
Page 3: Installation Overview
Disclaimer: This product is sold as a DIY watercooling kit. You are responsible for correct installation and maintenance of the this product. XSPC will not be held responsible for any loss of property/data or personal harm caused by the improper use or installation of this equipment. - Page 4 Preparing Intel Socket 2011 1.The block includes two set of posts. Socket 2011 2. Screw the short end of the M4 post into each of the installation uses the larger threaded M4 post. four holes around the socket. Preparing Intel Sockets 1366, 1155, 1156, 1150, 1151 This installation method is suitable for the majority of intel motherboards.
- Page 5 Preparing AMD Sockets AM# and FM# 2. If the backplate is loose, place it back in its correct 1. Remove the plastic clips on either side of the CPU position. Make sure the 4 screw threads on the socket by undoing the 4 screws. backplate line up with the holes on the motherboard.
- Page 6 Preparing the Bay Pump/Reservoir 1. Attach the fittings to the inlet and outlet of the pump. 2. Push the 5mm LED into the LED holder. You might prefer to do this after installing the kit. Use the G1/4” blanking plug to block any unused outlet (see page 7).
- Page 7 Layout and Tubing Routing Planning the layout of the watercooling loop is the most important part of the installation. It's worth spending some time here to work out the easiest route to connect the block, pump and radiator. Before you start cutting the tubing to size you should place the components into the best position in your case and when you're happy with the layout, measure and cut the tubing.
- Page 8 Pump/Reservoir Outlet The inlet and outlet are not marked on the pump, so follow the photos below. Some pump/reservoirs will have multiple inlets. Choose which inlet port is most suitable for your system and use the G1/4” plug to block the unused port. D5 Bay X2O 750 Bay Twin D5 Bay...
- Page 9 Internal Radiator Layout Ideally your case will have room to install the radiator internally. This could be at the top, bottom or front of the case. The air should always flow out of the case. Mounting the radiator internally won't give the best performance, but it's the neatest solution and we highly recommend using it where possible.
- Page 10 Cutting the Tubing Cutting the Tubing When you cut the tubing it's very important to get a straight clean cut. If you the cut is rough or uneven then it could stop the tubing sealing and cause a leak. You might find it useful to buy a hose cutter instead of using scissors. Attaching the Tubing (Barbed Fittings) 1.
- Page 11 Using the Radiator Brackets 1. Place a screw through the unthreaded hole on the The radiator brackets are useful for mounting the bracket and put an o-ring on the end of the screw. radiator outside of the case. The diagram above shows how to attach the brackets using the provided screws and o-rings.
- Page 12 Attaching the Radiator 1. Lift the radiator into position and line it up with the 2. Use four 6mm 6-32 screws in each of the four screw holes on the case panel. corner holes. Do not use screws longer then 6mm. Example Installation Walkthrough 1.
- Page 13 1. Pull the pump forward so you can access the fill cap. 3. Use a small funnel to avoid spilling the coolant. 4. We recommend using a premixed coolant like XSPC EC6, or concentrate coolant like ECX. This will protect the components and stop biological growth in the loop.
- Page 14 1. Move the pump so you can easily access the fill cap. 3. Use a small funnel to avoid spilling the coolant. 4. We recommend using a premixed coolant like XSPC EC6, or concentrate coolant like ECX. This will protect the components and stop biological growth in the loop.
- Page 15 Fitting the WaterBlock (All Intel Sockets) The installation process below is shown without the tubing connected. This has been done so the installation process can be seen clearly, without any obstructions. 2. Apply a thin layer of thermal paste to the CPUs heat 1.
- Page 16 Fitting the Waterblock (AMD) The installation process below is shown without the tubing connected. This has been done so the installation process can be seen clearly, without any obstructions. 1. Remove the plastic film from the base of the 2. Apply a thin layer of thermal paste to the CPUs heat waterblock.
-
Page 17: Finishing Touches
Attaching the Bay Pump/Reservoir Attaching the Bay Pump/Reservoir 1. Push the pump back so the faceplate is flush with 2. If you have a case with quick release clips, we the front of the case. Fix the pump in place by using recommend removing them and using the screw hole the small M3 screws. -
Page 18: Maintenance
Maintenance If installed correctly, the watercooling kit requires very little maintenance. In the first week of use we highly recommend checking for leaks on a regular basis and monitoring the coolant level. Long term we recommend the following: - Clean dust from the radiator every 12 months - Change the coolant every 18-24 months - Check the tubing for kinks If you experience increased temperatures or increased noise you should check the coolant level and check for kinks in... -
Page 19: Troubleshooting
Q. Can I use tap water? A. Do not use tap water as it contains many impurities. You should use a coolant like XSPC EC6, or ECX, which will provide protection against corrosion and biological growth. Q. I have heard you can use a silver coil and de-ionized water instead of premixed coolant. - Page 20 www.xs-pc.com/support...
