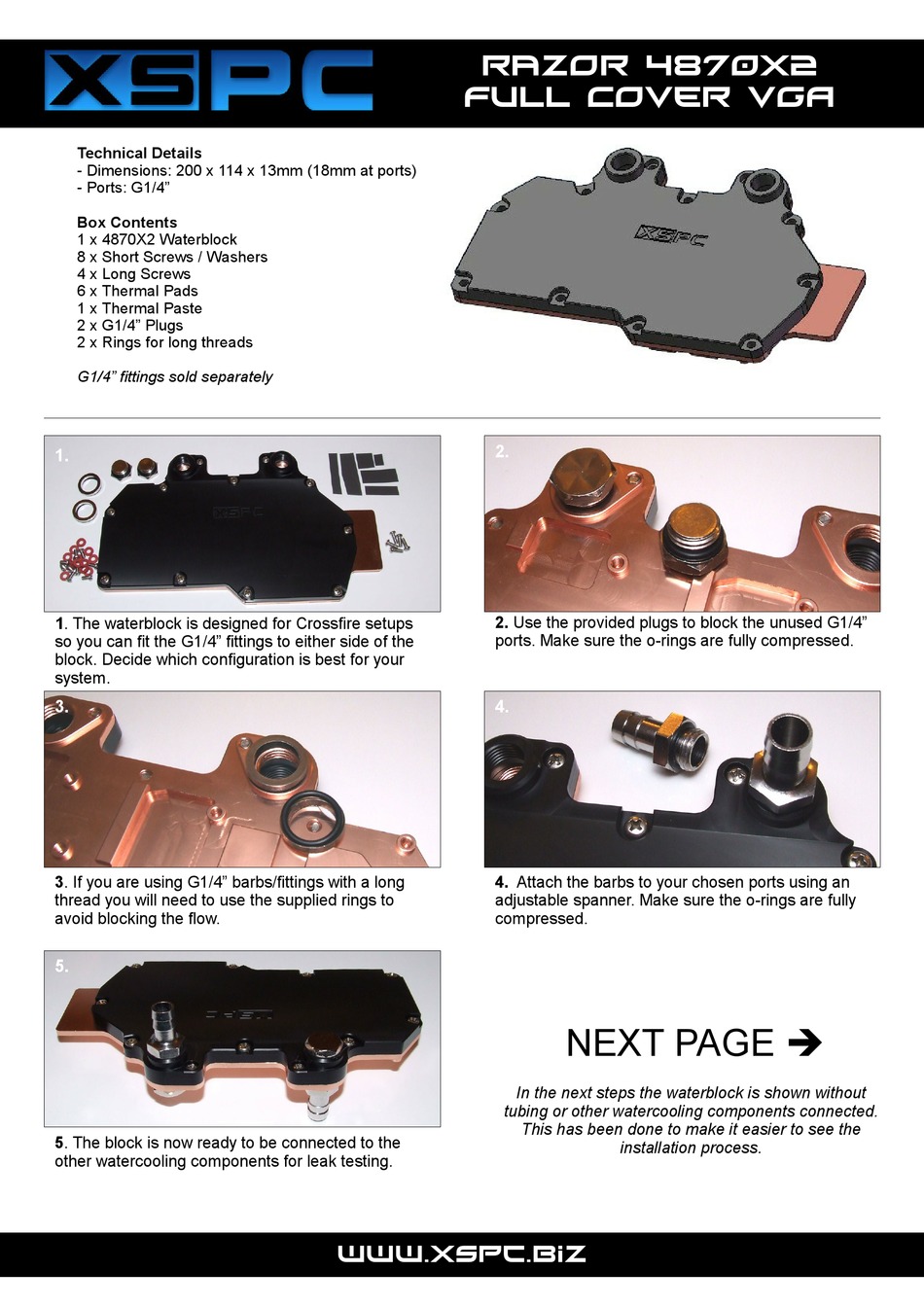

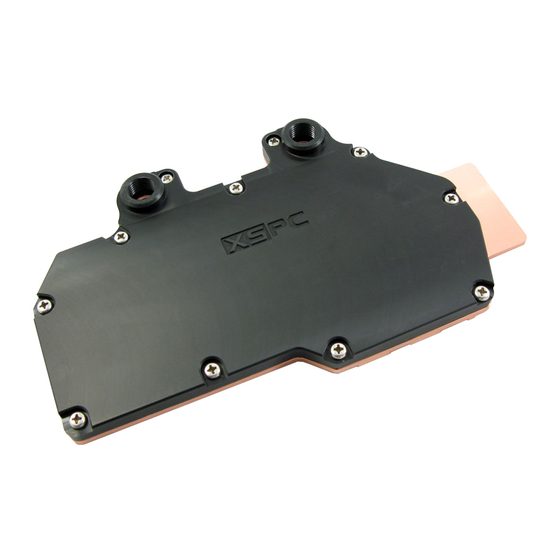

XSPC Razor 4870X2 Full Cover VGA Manual

Technical Details
- Dimensions: 200 x 114 x 13mm (18mm at ports)
- Ports: G1/4"
Box Contents
1 x 4870X2 Waterblock
8 x Short Screws / Washers
4 x Long Screws
6 x Thermal Pads
1 x Thermal Paste
2 x G1/4" Plugs
2 x Rings for long threads
G1/4" fittings sold separately
1.
1. The waterblock is designed for Crossfire setups
so you can fit the G1/4" fittings to either side of the
block. Decide which configuration is best for your
system.
3.
3. If you are using G1/4" barbs/fittings with a long
thread you will need to use the supplied rings to
avoid blocking the flow.
5.
5. The block is now ready to be connected to the
other watercooling components for leak testing.
Razor 4870X2
Full Cover VGA
2.
2. Use the provided plugs to block the unused G1/4"
ports. Make sure the o-rings are fully compressed.
4.
4. Attach the barbs to your chosen ports using an
adjustable spanner. Make sure the o-rings are fully
compressed.
6.
tubing or other watercooling components connected.
www.xspc.biz
NEXT PAGE 
In the next steps the waterblock is shown without
This has been done to make it easier to see the
installation process.
