Summary of Contents for Aquatica Digital Lullaby Mini

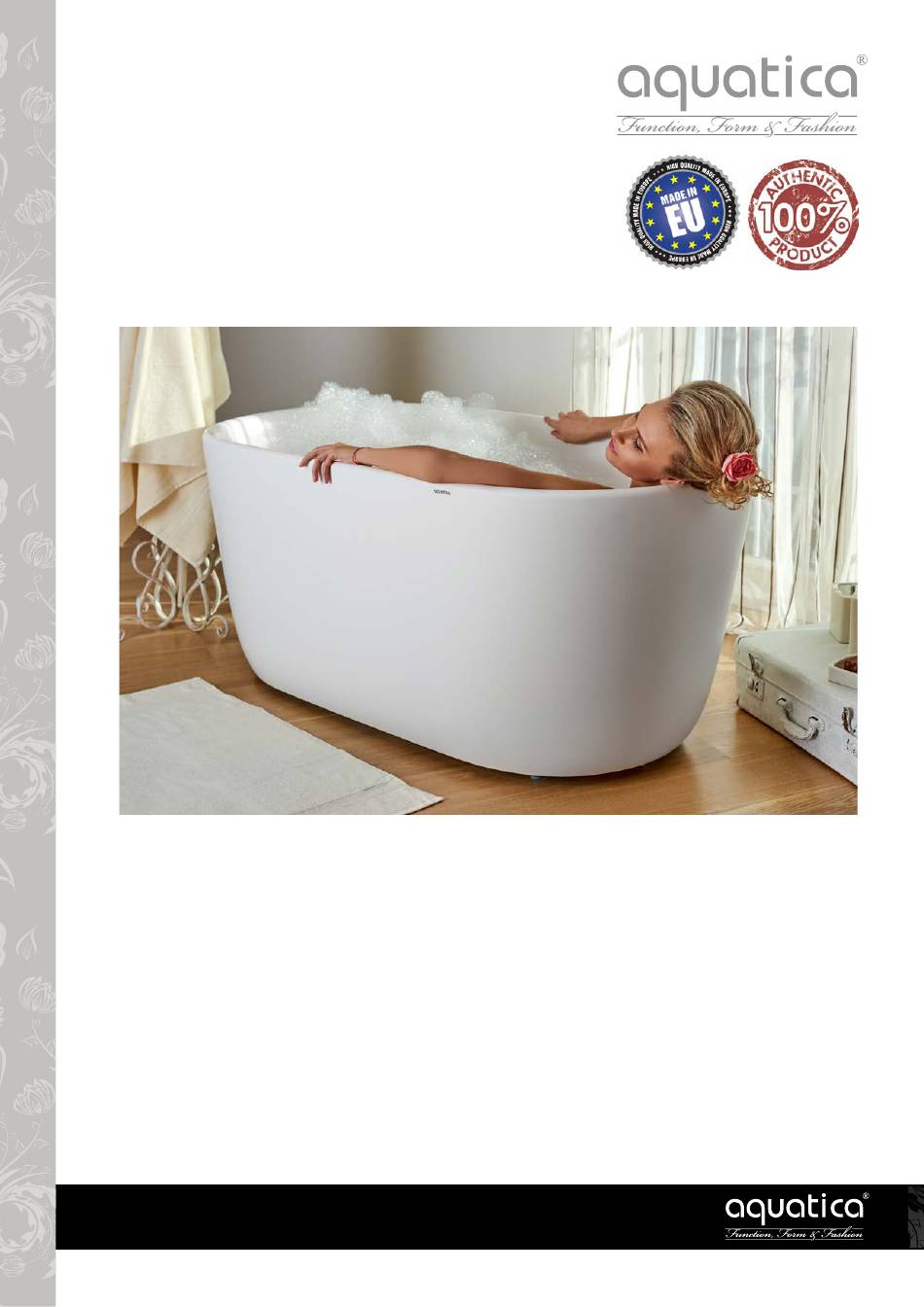

- Page 1 Lullaby Mini AquateX Bathtub ™ (formerly Aquastone™) Installation & Care Manual USA & Canada www.aquaticabath.com E: info@aquaticabath.com...
- Page 2 Lullaby Mini AquateX™ Bathtub Use Male Adapter Spg x MIPT Sch40 - ABS DWV for Aquatica ® bath wastes Waste Fitting with Sch40 Waste Fitting Thread 1½ NPSM ( 1½ IPS) 1½“ flanged brass tube for Aquatica ® cable-drive and concealed bath wastes.
- Page 3 Lullaby Mini AquateX™ Bathtub Installation is completed by applying silicone at several points between the bottom panel and floor. Sch40 Waste Fitting HANDLE Male Adapter Spg x MIPT WITH CARE - ABS DWV - available for purchase separately 1 ½ " flanged...
-
Page 4: Installation Sequence
Place the bathtub by raising it up 4” with 4x4 pieces of lumber so you can have access from the bottom of the bathtub. INSTALLATION SEQUENCE • The Lullaby Mini bathtub is equipped with factory pre-installed overflow system. • The waste pipe/p-trap connection must be made directly to the waste/drain outlet located at the bottom of the tub. - Page 5 Lullaby Mini AquateX™ Bathtub INSTALLATION SEQUENCE continued Use Male Adapter Spg x MIPT - ABS DWV for Aquatica ® bath wastes with Sch40 Waste Fitting Thread 1 ½ NPSM IPS) ½ Please refer to our kit installation guide on page 6 •...
-
Page 6: Kit Includes
Aquatica ® Freestanding Bath Installer ™ (Kit available separately - not included with bathtub) " FEATURES 238mm • 18 Gauge Epoxy coated Metal Deck Flange " • Designed to be installed in an 8” joist space 32mm • Can be installed with Waterproofing Membrane "... -
Page 7: Installation Instructions
Aquatica ® Freestanding Bath Installer ™ (Kit available separately - not included with bathtub) INSTALLATION INSTRUCTIONS Attaches to Freestanding Bath W/O A. Cut 6½” (16.5 cm) hole into wood sub-floor (use supplied Cutout Template). B. Measure and cut ABS Tailpiece as necessary to ensure a secure connection to P-Trap below. - Page 8 Lullaby Mini - Maintenance Instructions Lullaby Mini - Инструкция по уходу Lullaby Mini - Installation & Entretien Lullaby Mini - Manuale per il corretto mantenimento Lullaby Mini - Instrucciones para la correcta manutención Maintenance Instructions La superficie necessita di pulizia ed The smooth surface of your Purescape accorgimenti per il corretto mantenimento.
