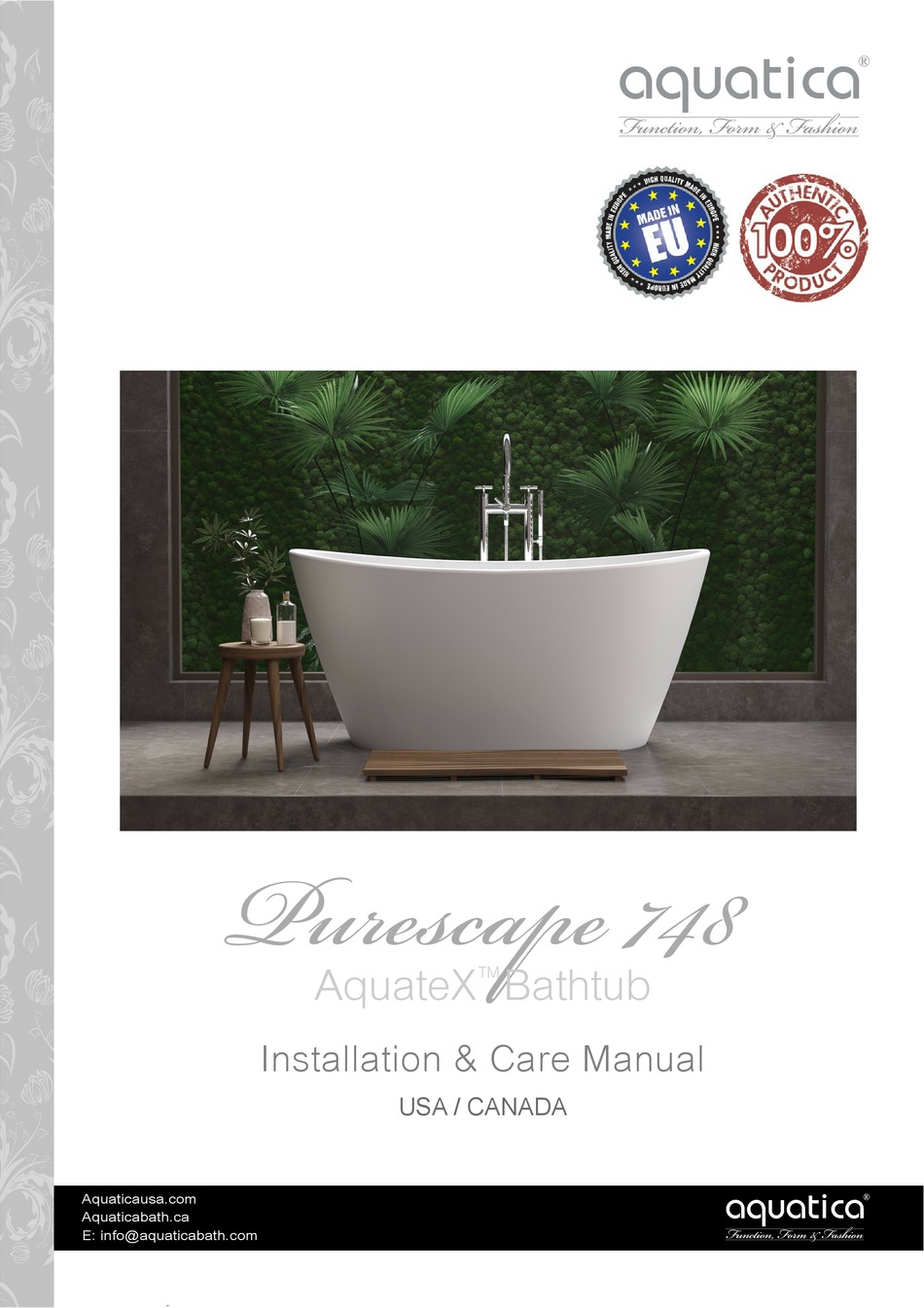

- Page 1 Purescape 748 AquateX Bathtub Installation & Care Manual USA / CANADA Aquaticausa.com Aquaticabath.ca E: info@aquaticabath.com...
- Page 2 Purescape 748 AquateX Bathtub 1½ ” flanged brass tube for Aquatica cable-drive and concealed bath wastes. P-Trap Aquatica® Freestanding (not supplied) Bath Installer™ (Ordered separately) PLEASE NOTE: Parts marked with are supplied as part of Aquatica® Freestanding Bath Installer™ Kit (Ordered separately) 1 1/4"...
- Page 3 Purescape 748 AquateX Bathtub USA & CANADA - MANDATORY INSTALL PROCEDURE Installation is completed by applying silicone at several points between the bottom panel and oor. 24 h 1 ½ " male brass tube HANDLE – not included with tub WITH CARE Aquatica®...
-
Page 4: Installation Sequence
Place the bathtub by raising it up 4” with 4x4 pieces of lumber so you can have access from the • bottom of the bathtub. INSTALLATION SEQUENCE The Purescape 748 bathtub is equipped with factory pre-installed overflow system. • The waste pipe/p-trap connection must be made directly to the waste/drain outlet located •... - Page 5 Purescape 748 AquateX Bathtub INSTALLATION SEQUENCE continued the water outlet pipe should be Picture 4: • connected. when the installation is completed, Picture 5: • the bathtub is taken down from the supports ( ie 2 x 4x4's). If necessary, installation is completed by Use 1.5”...
-
Page 6: Kit Includes
Purescape 748 AquateX Bathtub 5" 4 3/4" FEATURES 3 7/8" 18 Gauge Epoxy coated Metal Deck Flange • Designed to be installed in an 8” joist space • Can be installed with Waterproofing Membrane 2 3/8" • Ø2" (*bronte™ NobleSeal TS Recommended) 1"... -
Page 7: Installation Instructions
Purescape 748 AquateX Bathtub INSTALLATION INSTRUCTIONS Attaches to Freestanding Bath W/O A. Cut 5" hole into wood sub-floor (use supplied Cutout Template). B. Measure and cut ABS Tailpiece as necessary to ensure a secure connection to P-Trap below. C. Insert Freestanding Bath Installer™ assembly into floor opening and connect to Pipe below. - Page 8 Purescape 748 AquateX Bathtub Purescape 748 - Maintenance Instructions Purescape 748 - Инструкция по уходу Purescape 748 - Installation & Entretien Purescape 748 - Manuale per il corretto mantenimento Purescape 748 - Instrucciones para la correcta manutención Maintenance Instructions Manuale per il corretto mantenimento The smooth surface of your Aquatica ®...
