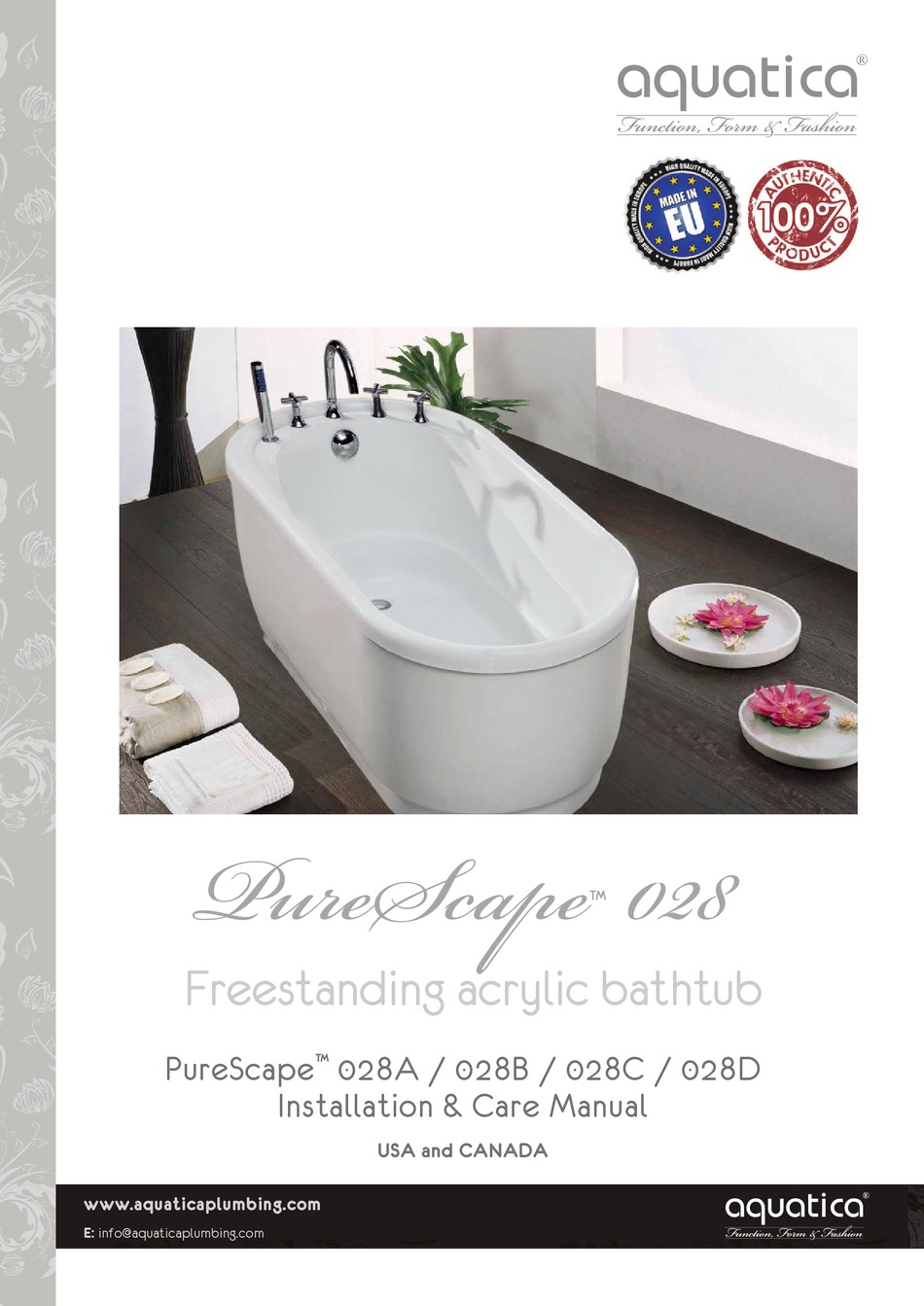

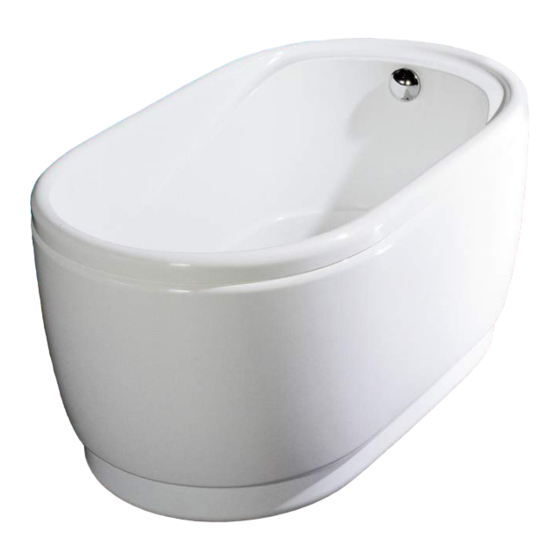

- Page 1 PureScape ™ Freestanding acrylic bathtub PureScape 028A / 028B / 028C / 028D ™ Installation & Care Manual USA and CANADA www.aquaticaplumbing.com E: info@aquaticaplumbing.com...
- Page 2 PureScape ™ Freestanding acrylic bathtub Models: PureScape ™ 028A, 028B, 028C, 028D Use Male Adapter Spg x MIPT Sch40 - ABS DWV for Aquatica bath wastes Waste Fitting ® with Sch40 Waste Fitting ¹ /₂ ¹ /₂ Thread 1 NPSM (1 IPS) 1¹...
- Page 3 PureScape ™ Freestanding acrylic bathtub Models: PureScape ™ 028A, 028B, 028C, 028D USA & CANADA INSTALL Ø 2.0” Sch40 Waste Fitting Male Adapter Spg x MIPT - ABS DWV Installation is completed by applying - available for silicone at several points between purchase separately HANDLE the bottom panel and floor.
-
Page 4: Installation Sequence
PureScape ™ Freestanding acrylic bathtub Models: PureScape ™ 028A, 028B, 028C, 028D TYPICAL FREESTANDING BATHTUB INSTALLATION PROCEDURE Before you start: • Ensure that the floor is even. • The waste-overflow fitting is supplied with the product, however other accessories like the slip joint and adaptors are not included and must be purchased separately. - Page 5 PureScape ™ Freestanding acrylic bathtub Models: PureScape ™ 028A, 028B, 028C, 028D INSTALLATION SEQUENCE continued Use Male Adapter Spg x MIPT - ABS DWV for Aquatica ® bath wastes with Sch40 Waste Fitting ¹ /₂ ¹ /₂ Thread 1 NPSM (1 IPS) Please refer to our kit installation guide...
-
Page 6: Kit Includes
Aquatica ® Freestanding Bath Installer ™ (Kit available separately - not included with bathtub) FEATURES " 238mm • 18 Gauge Epoxy coated Metal Deck Flange • Designed to be installed in an 8” joist space " • 32mm Can be installed with Waterproofing Membrane "... -
Page 7: Installation Instructions
Aquatica ® Freestanding Bath Installer ™ (Kit available separately - not included with bathtub) INSTALLATION INSTRUCTIONS Attaches to Freestanding Bath W/O A. Cut 6-1/2” (16.5 cm) hole into wood sub-floor (use supplied Cutout Template). B. Measure and cut ABS Tailpiece as necessary to ensure a secure connection to P-Trap below. - Page 8 PureScape ™ 028 - Maintenance Instructions PureScape 028 - Инструкция по уходу ™ PAA Ltd., Unijas street 12A, Riga, Latvia Hooldus juhend PureScape 028 - Installation & Entretien ™ EN 14516 PureScape ™ 028 - Manuale per il corretto mantenimento CA-DA PureScape ™...
