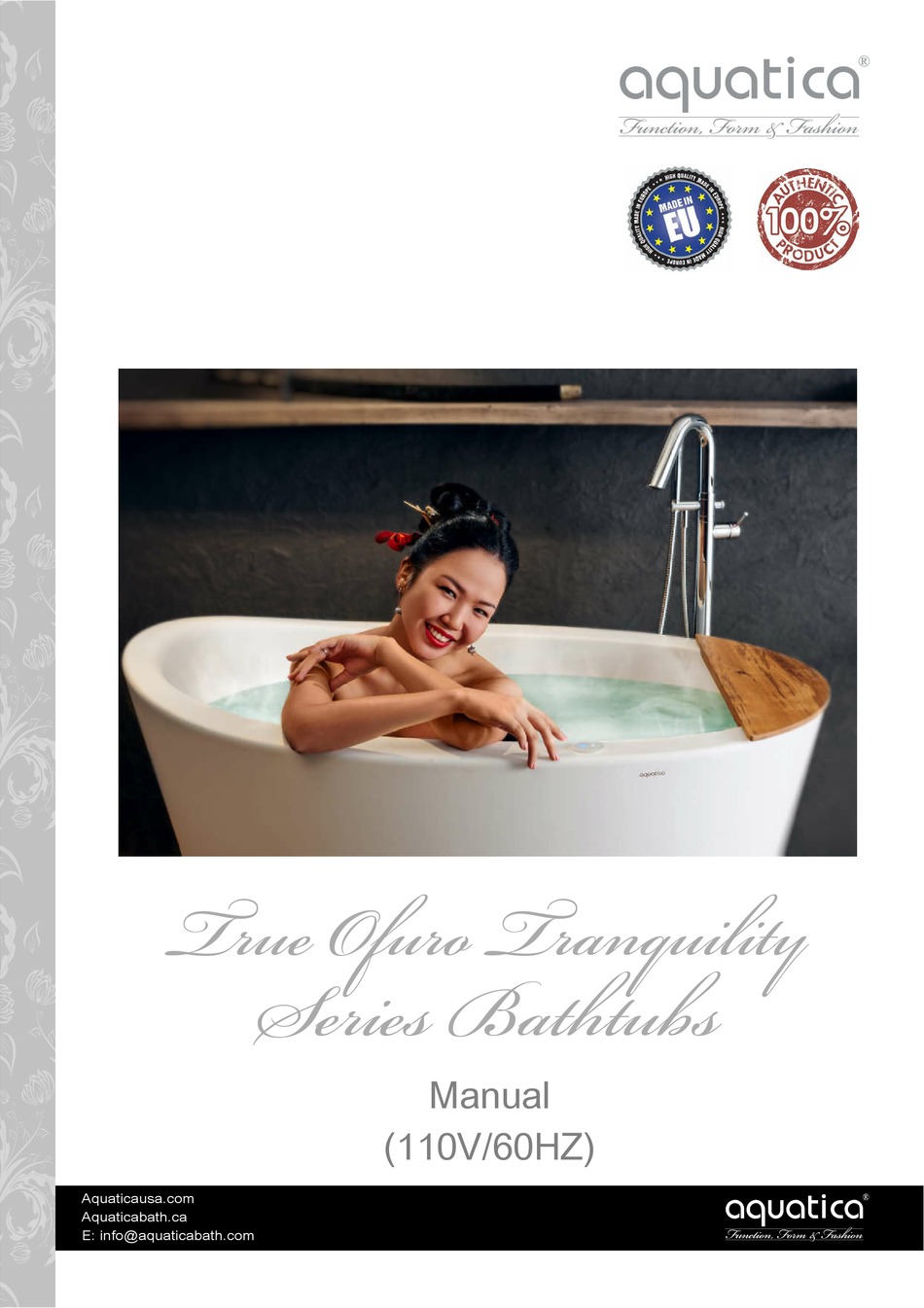

- Page 1 True Ofuro Tranquility Series Bathtubs Manual (110V/60HZ) Aquaticausa.com Aquaticabath.ca E: info@aquaticabath.com...
- Page 2 True Ofuro Tranquility Warning WARNING 1. READ AND FOLLOW ALL INSTRUCTIONS 2. WARNING: When using electrical products, basic precautions should always be followed, including the following: 3. DANGER: To reduce the risk of injury, do not permit children to use this unit unless they are closely supervised at all times.
-
Page 3: Important Product Information
True Ofuro Tranquility Warning IMPORTANT PRODUCT INFORMATION PRODUCT NOTICES WARNING: Unauthorized modification may cause unsafe operation and poor performance of the bath. Do not relocate the pump, or make other modifications to the circulating system, as this could adversely affect the performance and safe operation of your bath. -
Page 4: Instructions Importantes
True Ofuro Tranquility Warning 8. INSTALL THIS UNIT IN ACCORDANCE WITH THE CANADIAN ELECTRICAL CODE, PART I. and INSTALLER CONFORMEMENT AU CODE CANADIEN DE L'ELECTRICITE, PREMIERE PARTIE (CSA C22.2 No. 218.2 com compliance). Your physiological response to hot water is subjective and depends on your age, health, and medical history. If you don't know your tolerance to hot water, or if you get a headache, or become dizzy or nauseous when using your hot tub, get out and cool off immediately. - Page 5 True Ofuro Tranquility Warning 7. WARNING: RISK OF ELECTRIC SHOCK. Do not permit electric appliances (such as a hair dryer, lamp, telephone, radio, or television) within 1.5 m of this hydromassage bathtub. / AVERTISSEMENT. RISQUE DE CHOC ELECTRIQUE. Ne pas placer d'appareils electriques (luminaire, téléphone, radio, televiseur, etc.) a moins de 1.5 m de cette cuve a remous.
-
Page 6: Ac Junction Box
True Ofuro Tranquility Electrical Manual AC JUNCTION BOX JUNCTION BOX WIRE COLOR MARKINGS: • Black - L1 Connect to your home electrical system via our AC • White - L2 junction box solely! Use #12 AWG size wire and 20A breaker to connect to your home's electrical system. - Page 7 True Ofuro Tranquility Electrical Manual 110V/60Hz Countries, US, Canada, Central America, Caribbean, Japan Main Bathtub Controller Digital Keypad with HEAT ON/OFF + LIGHT ON/OFF Water Heater 12V AC LED LIGHTS LED Light 60W Circulation Controller Pump Junction Box ENSURING THAT THERE IS SUFFICIENT AIR CAVITY BETWEEN THE BATHTUB AND THE FLOOR Upon installing the bathtub ensure that a sufficient cavity is left between the bath and the floor.
-
Page 8: Installation
True Ofuro Tranquility Installation 1½” flanged brass tube for Aquatica cable-drive and concealed bath wastes. P-Trap Aquatica® Freestanding (not supplied) Bath Installer™ (Ordered separately) PLEASE NOTE: Parts marked with are supplied as part of Aquatica® Freestanding Bath Installer™ Kit (Ordered separately) 2'-9 3/4"... - Page 9 True Ofuro Tranquility Installation USA & CANADA - MANDATORY INSTALL PROCEDURE Installation is completed by applying silicone at several points between the bottom panel and floor. 24 h HANDLE WITH CARE 1 ½ " male brass tube – not included with tub ®...
-
Page 10: Kit Includes
Aquatica ® Freestanding Bath Installer ™ FEATURES 127mm • 18 Gauge Epoxy coated Metal Deck Flange " 121mm • Designed to be installed in an 8” joist space " 3-7/8” 87mm 98mm • Can be installed with Waterproofing Membrane (*bronte™ NobleSeal TS Recommended) •... -
Page 11: Installation Instructions
Aquatica ® Freestanding Bath Installer ™ INSTALLATION INSTRUCTIONS Attaches to Freestanding Bath W/O A. Cut 5” (12.7cm) hole into wood sub-floor (use supplied Cutout Template). B. Measure and cut ABS Tailpiece as necessary to ensure a secure connection to P-Trap below. C. -
Page 12: Maintenance
True Ofuro Tranquility Maintenance Maintenance Instructions Manuale per il corretto mantenimento ® The smooth surface of your Aquatica AquateX™ La superficie necessita di pulizia ed accorgimenti Bathtub accumulates hardly any dirt, and can be per il corretto mantenimento. Una superficie maintained by simply cleaning with a soft cloth, liscia non accumula lo sporco. - Page 13 True Ofuro Tranquility Operating Manual The True Ofuro Tranquility series bathtubs are easy to operate and fun to use. The control system consists of On/Off and Lights On/Off 2 keypads as follows: Activate the heating and circulation feature by touching the icon, the icon will light up when activated.
- Page 14 True Ofuro Tranquility Operating Manual CURRENT SYSTEM LIMITATIONS Temperature Adjustment Function in 110V Systems The Tranquility heating system in the 110V systems is intended to maintain the temperature. The temperature adjustment functionality is slow in 110V systems due to limited heater output. The heater output is regulated by UL standards and cannot exceed 1.5kW, which is insufficient to quickly heat up the water.
